Removal

2.7L




1. Disconnect negative cable from battery.

2. Disconnect electrical connector from throttle body.

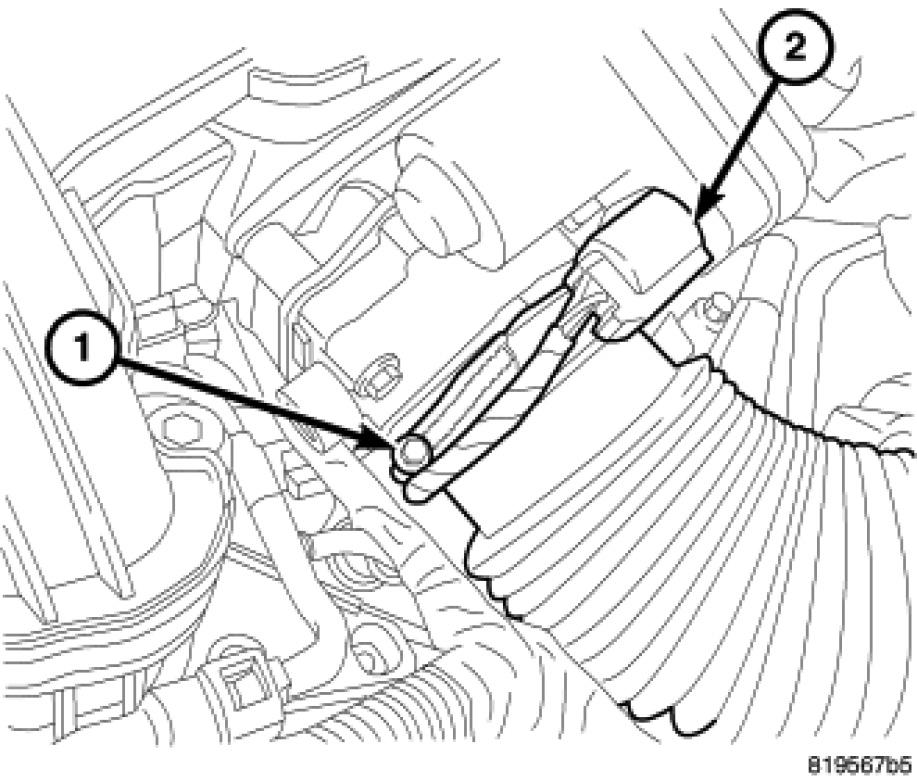

3. Disconnect clean air hose from throttle body.

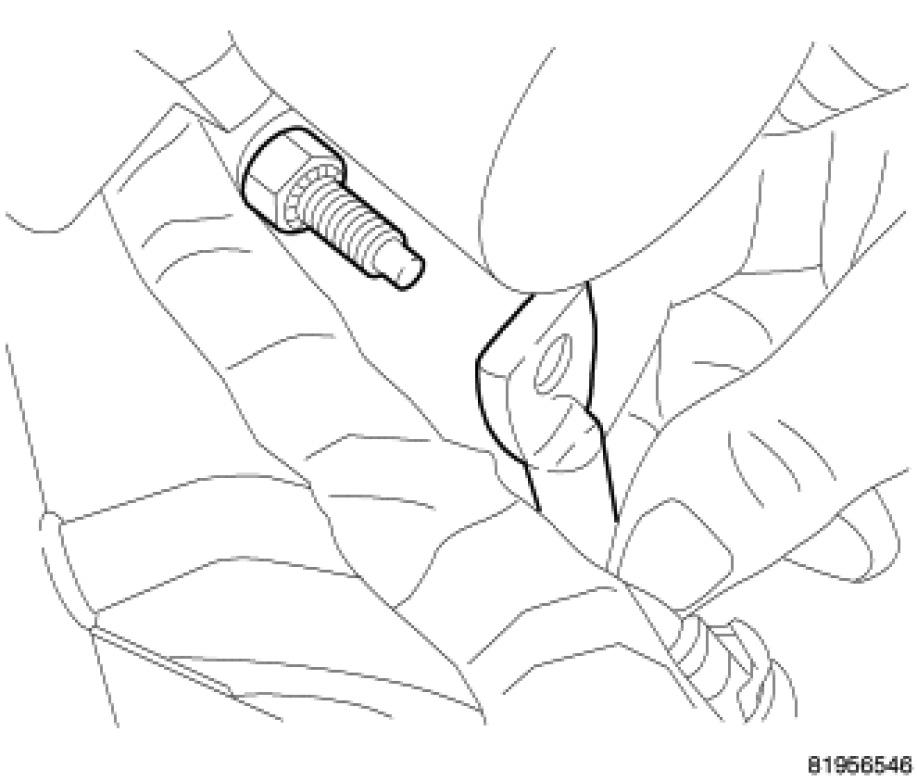

4. Remove the throttle body support bracket from the bottom of the throttle body.

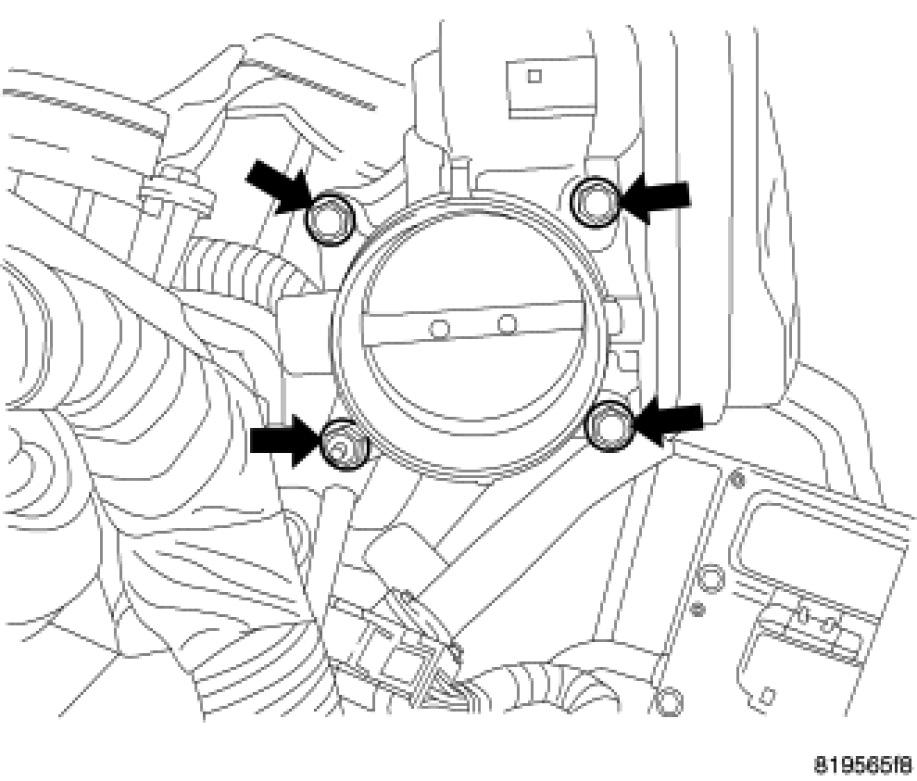

5. Remove remaining 3 throttle body bolts.




6. Remove throttle body.

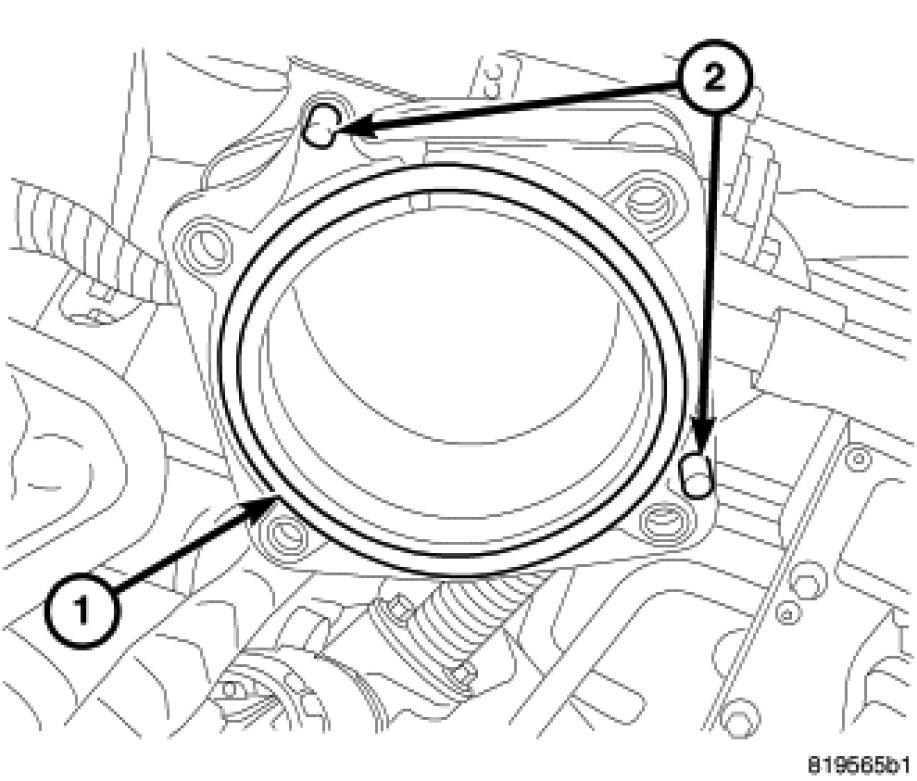

7. Clean mating surfaces.
