Removal

2.7L

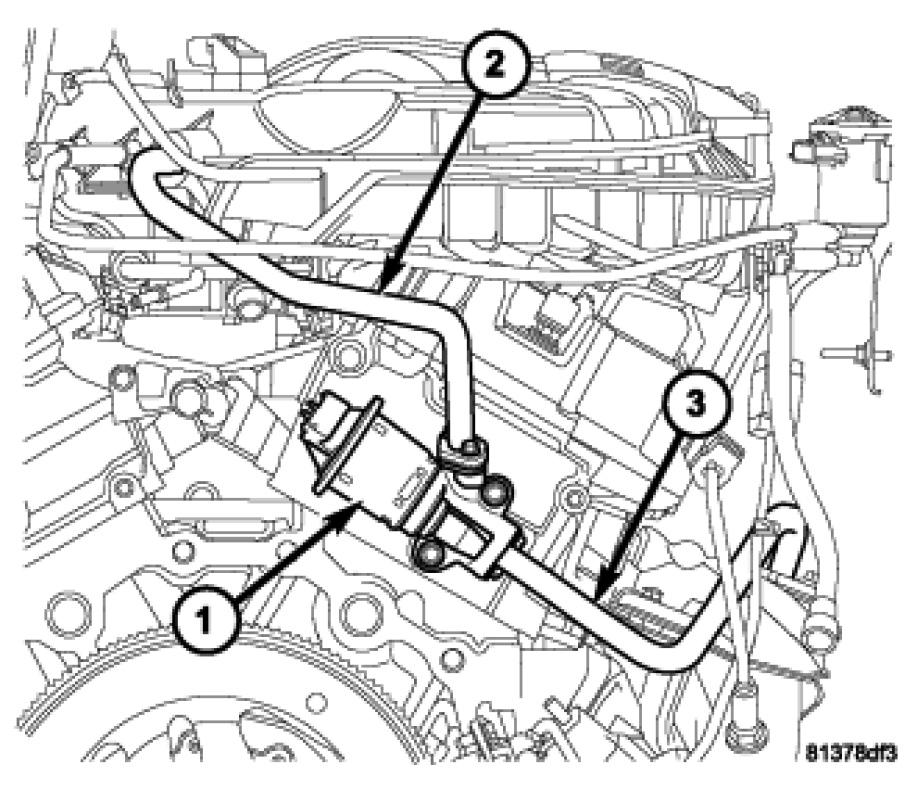

1. EGR system components and location. Upper tube (2), EGR valve (1), and Lower tube (3).

2. Disconnect negative battery cable.

3. Unlock and disconnect the electrical connector from EGR valve.




4. Remove the bolts from the EGR tube to exhaust manifold.

5. Remove the lower tube bolts to EGR valve and remove tube (3).

6. Remove upper tube bolts to EGR valve (2).

7. Remove the EGR valve mounting bolts (1).

8. Remove valve from vehicle.

9. Clean mounting surface.
