Installation

INSTALLATION

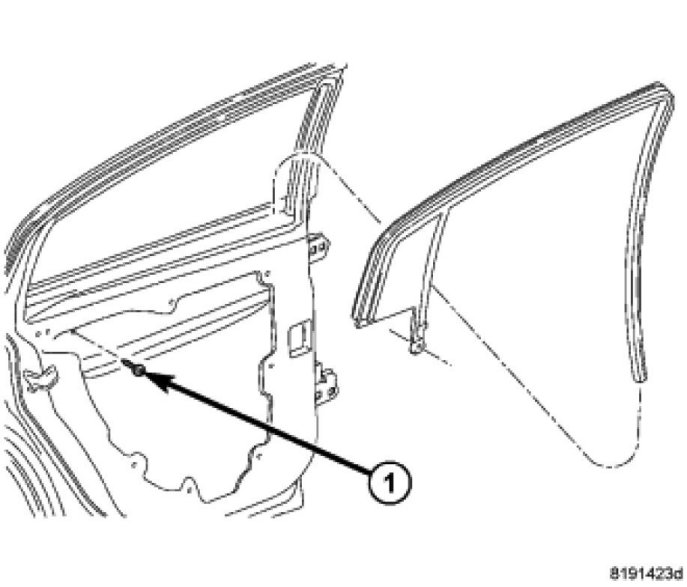

1. Insert glass run into glass run channel ensuring proper fit.

2. Insert screw through door inner and into division post. Tighten to 5.5 Nm (48.7 in. lbs.)

3. Replace trim panel as necessary.
