Home >> Chrysler >> 2007 >> Sebring Sedan L4-2.4L >> Repair and Diagnosis >> Transmission and Drivetrain >> Transfer Case >> Seals and Gaskets >> Service and Repair >> Outer Half Shaft Seal >> Removal

Removal






REMOVAL




1. Remove right halfshaft assembly.

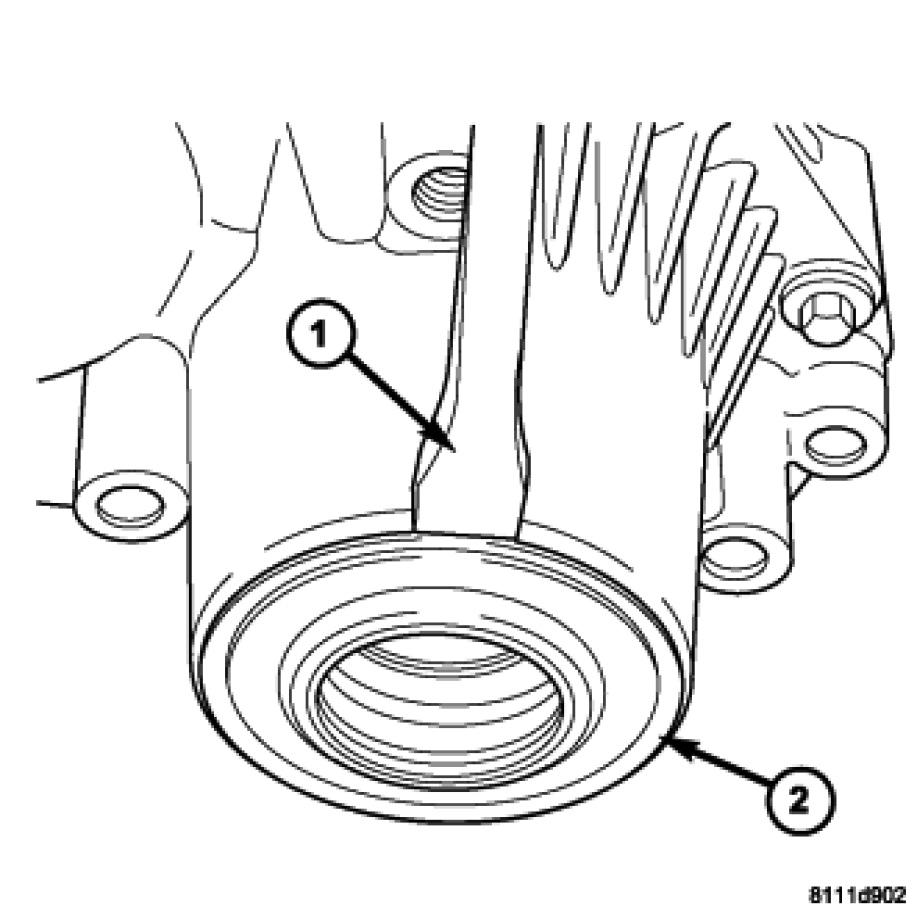

2. Using suitable screwdriver (1), remove outer halfshaft seal (2).
