Installation
Installation
1. If transmission brackets were removed or transmission was replaced install the rear mount bracket and tighten (1) to 100 Nm (74 ft. lbs.).

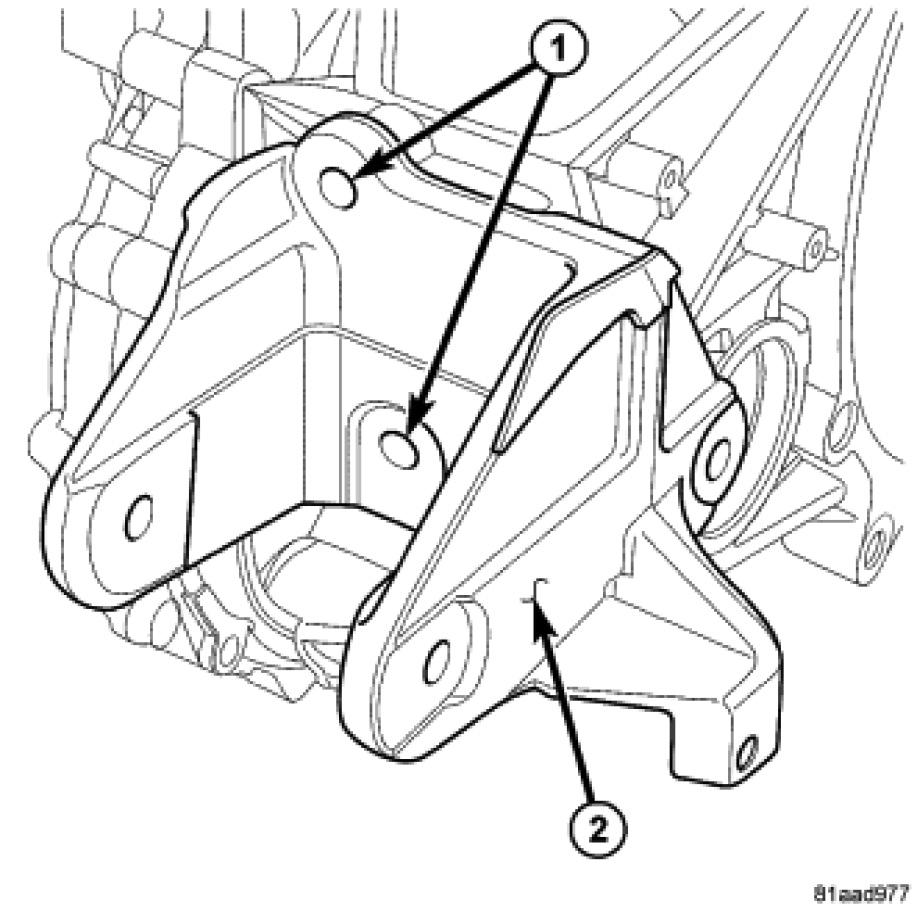

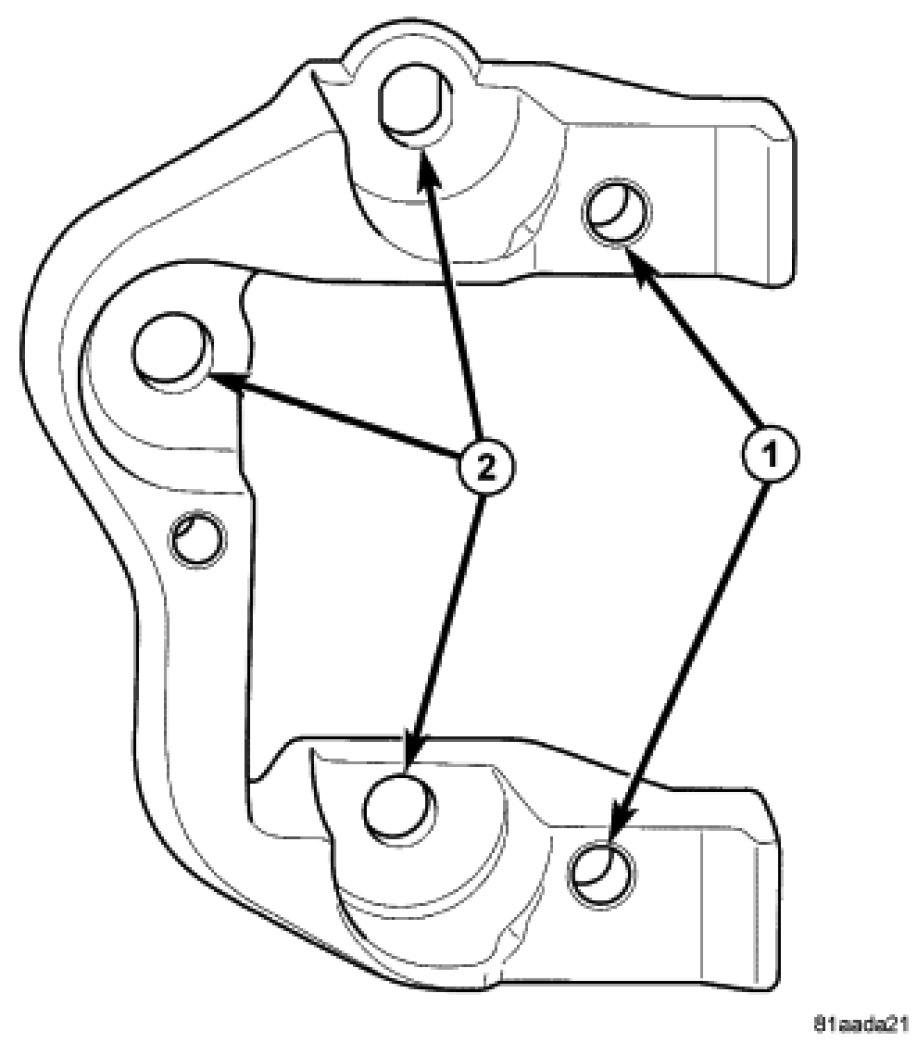

2. If transmission brackets were removed or transmission was replaced install the front mount bracket and tighten (1) to 100 Nm (74 ft. lbs.) and (2) to 133 Nm (98 ft. lbs.).

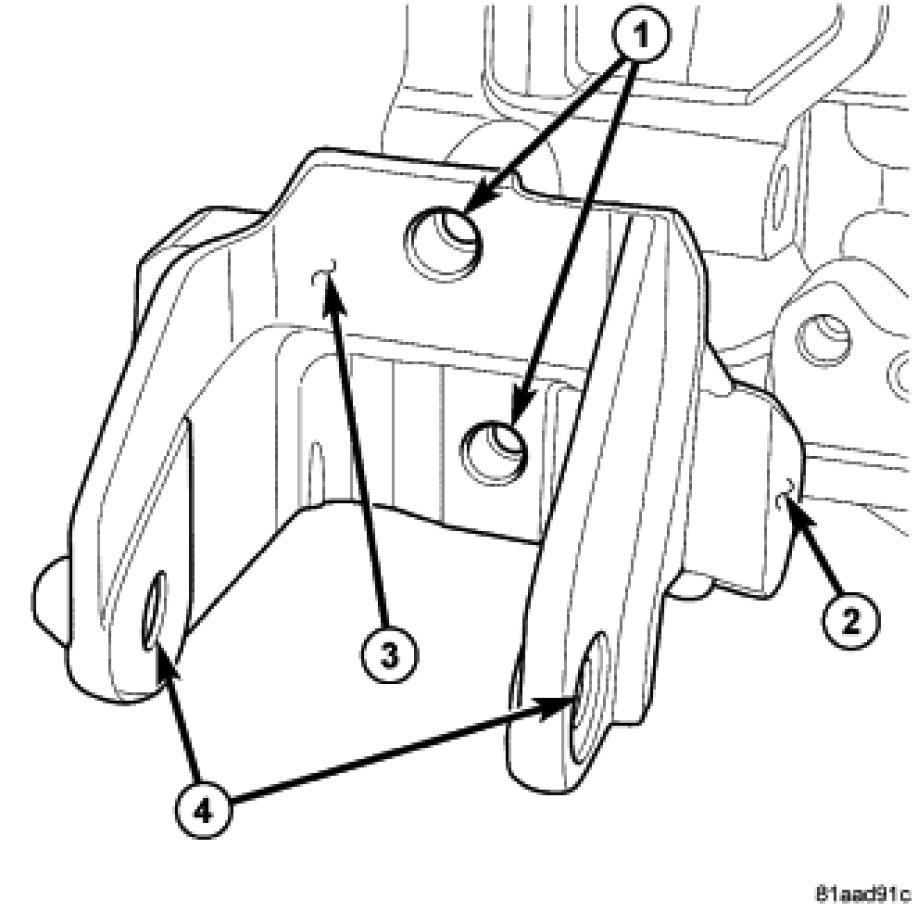

3. If transmission brackets were removed or transmission was replaced install the left mount bracket and tighten (1) to 100 Nm (74 ft. lbs.).
4. Lift transmission into position.
5. Install the lower transmission bolts (2) and tighten to 58 Nm (43 ft. lbs.) torque.

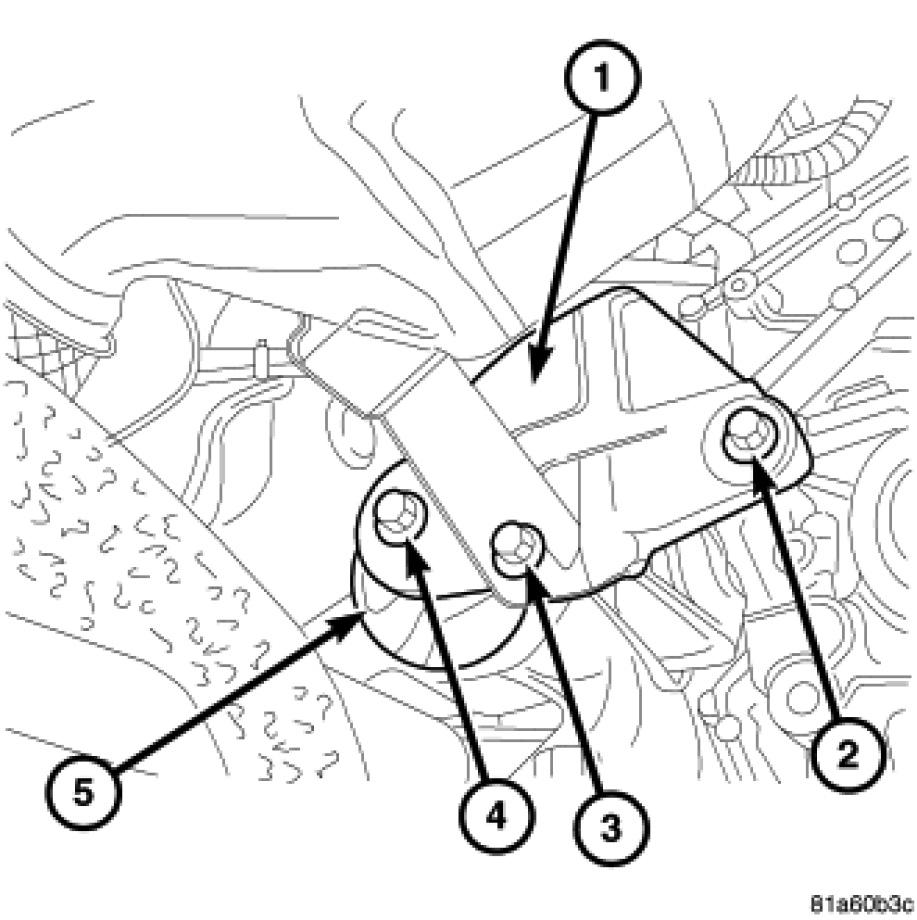

6. Install the rear transmission mount (5) to cradle.
7. Install rear transmission mount bolts and tighten to 68 Nm (50 ft. lbs.).
8. Install the rear mount bracket to transmission bolts (2, 3) and tighten to 68 Nm (50 ft. lbs.).
9. Roll engine and transmission back into place.
10. Install rear mount through bolt (4) and tighten to 68 Nm (50 ft. lbs.).
11. Install the starter.
12. Install the transmission cross member and tighten to 68 Nm (50 ft. lbs.).
13. Install the front transmission mount through bolt (4) at this time and tighten to 50 Nm (37 ft. lbs.).
14. Remove the jacks.
15. Lower the vehicle.
16. Use a floor jack to raise transmission into position.
17. Install the upper transmission mount and tighten to 100 Nm (74 ft. lbs.).
18. Raise the vehicle on the hoist.
19. Install halfshafts.
20. Fill transmission fluid to proper level.
21. Lower hoist.
22. Connect all wiring harness connectors and insure correct wiring harness is routed correctly.
23. Install shift cables (2) into bracket until a click is heard.
24. Snap the ball-socket end fittings onto the shift lever ball-studs.
25. Install the bolt for clutch hydraulic line (3) and tighten to 11 Nm (105 in. lbs.).
26. Install the clutch hydraulic line (1) to slave cylinder.
27. Install hydraulic line (1), bleed adaptor (2) and clip at the slave cylinder.
28. Bleed the slave cylinder.
29. Install the negative battery cable.
30. Install air cleaner assembly.
