Assembly

ASSEMBLY

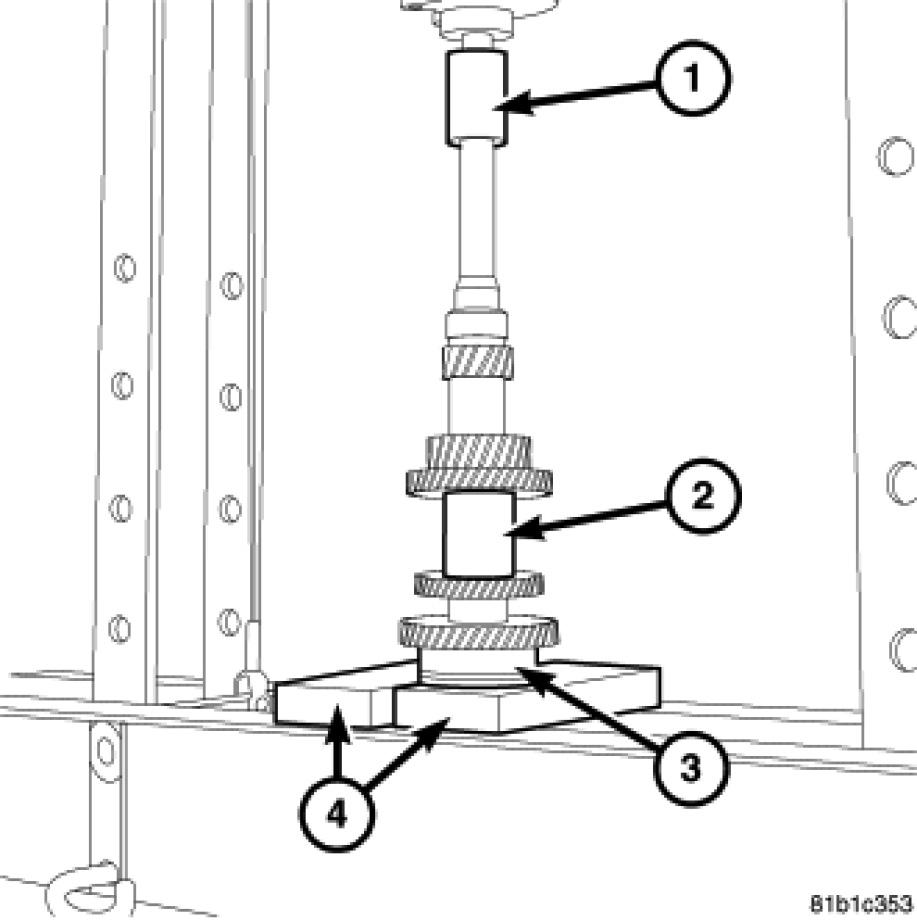

1. Using a press (1) and steel blocks (4) install third gear and the bearing (3) onto the shaft.




2. Install the new snap ring (2) that retains the input shaft bearing and third gear to the shaft.

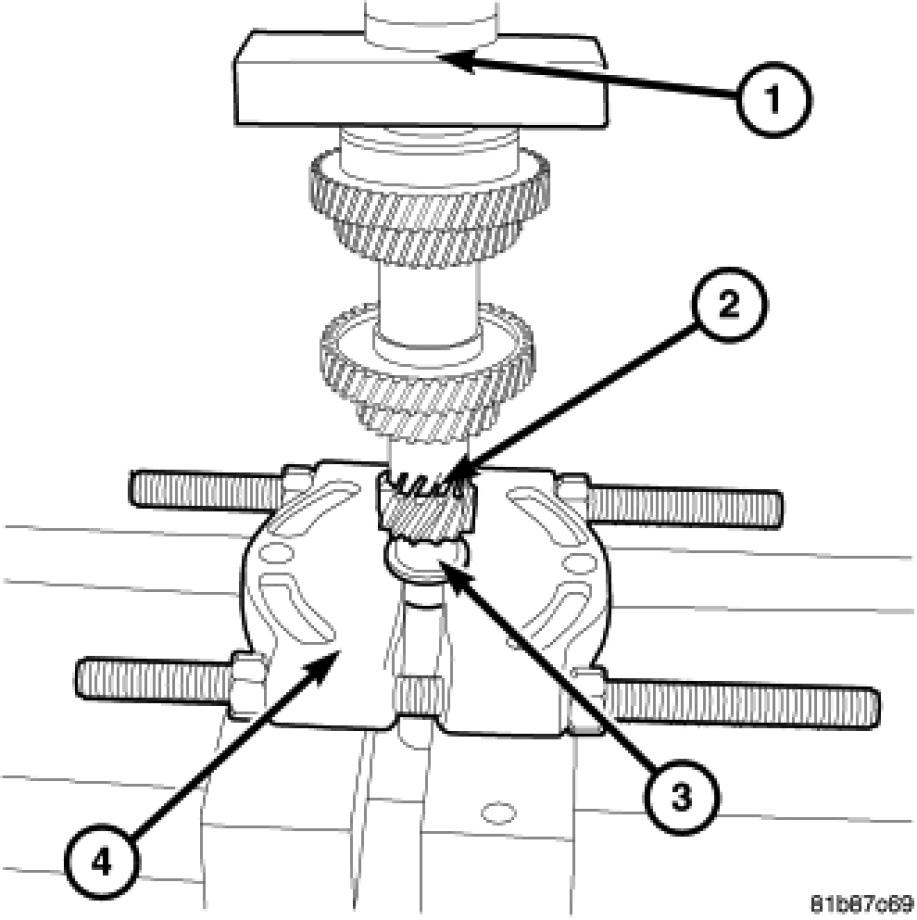

3. Using Bearing Splitter 1130 (4) and a Press (1) install the input shaft bearing race (3) onto the input shaft (2).
