Home >> Chrysler >> 2007 >> Sebring Sedan L4-2.4L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Diagrams >> Fluid Diagrams

Fluid Diagrams

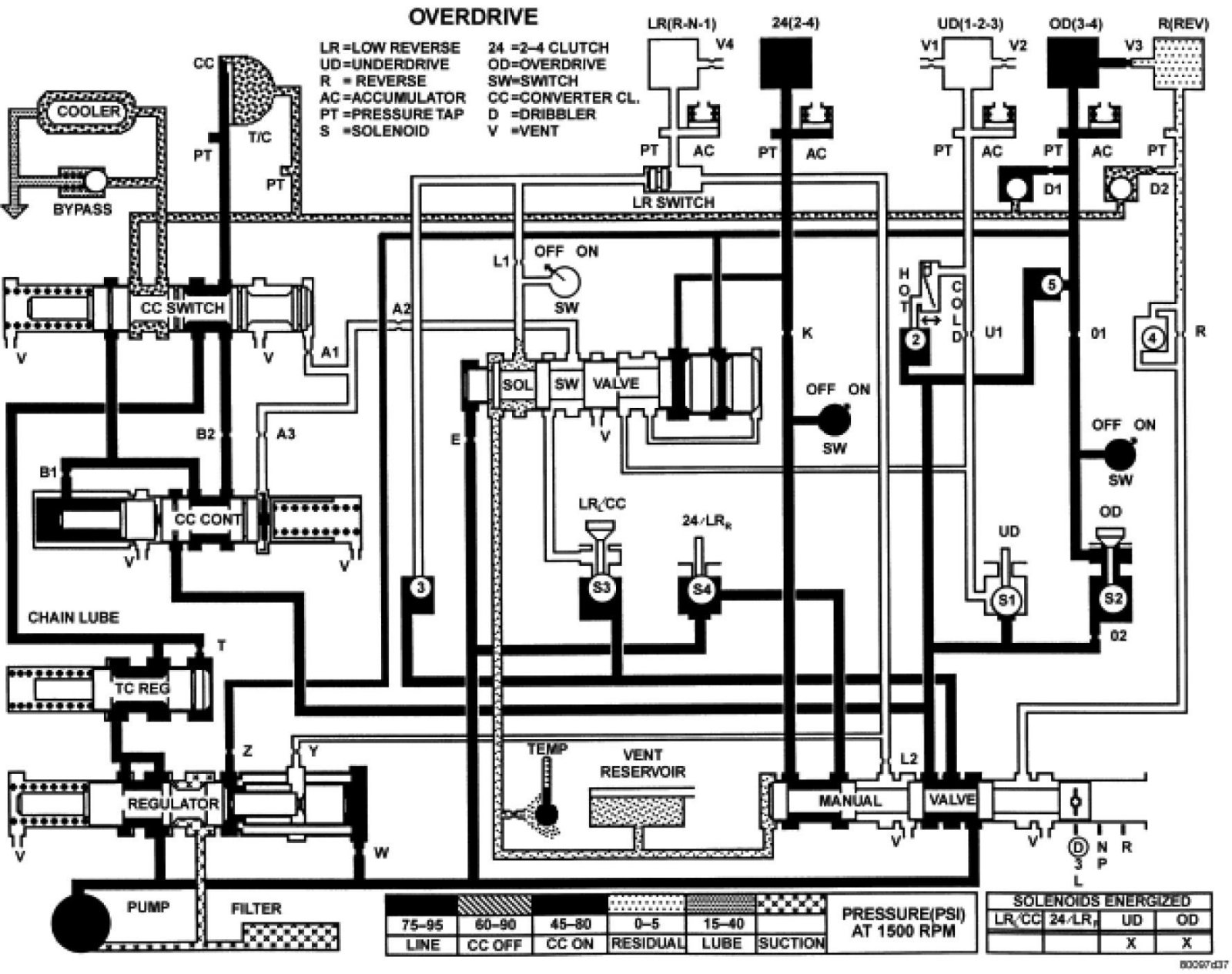

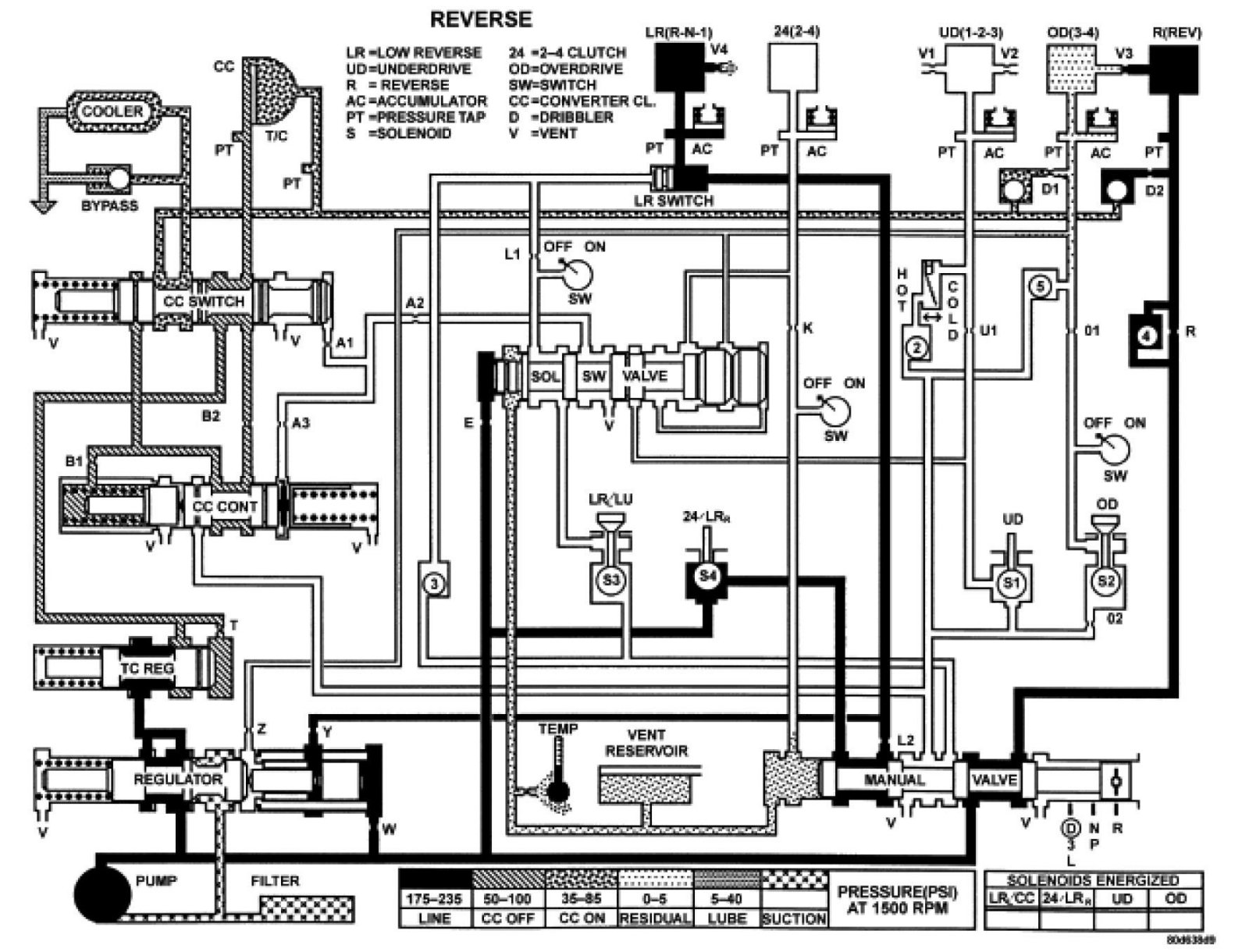

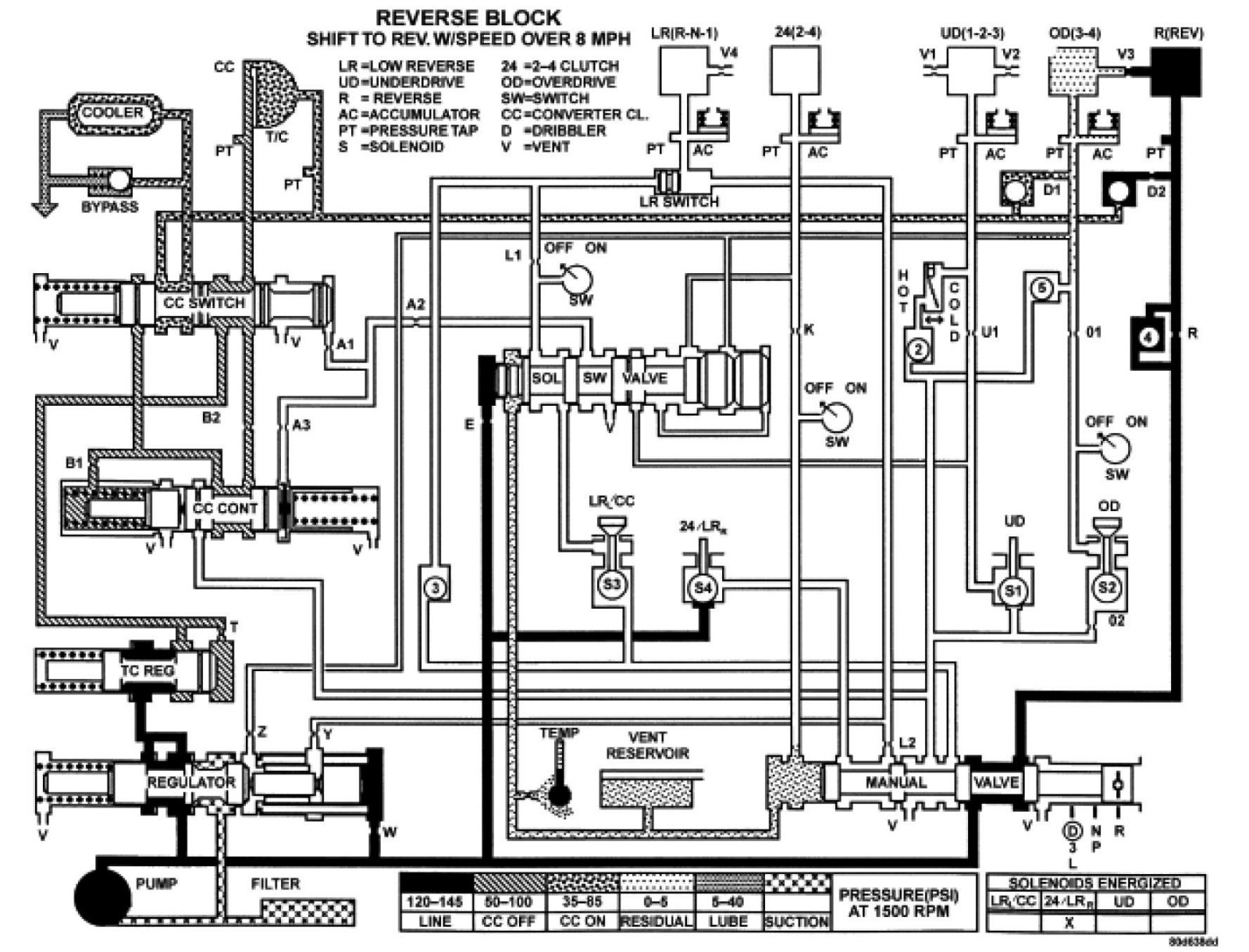

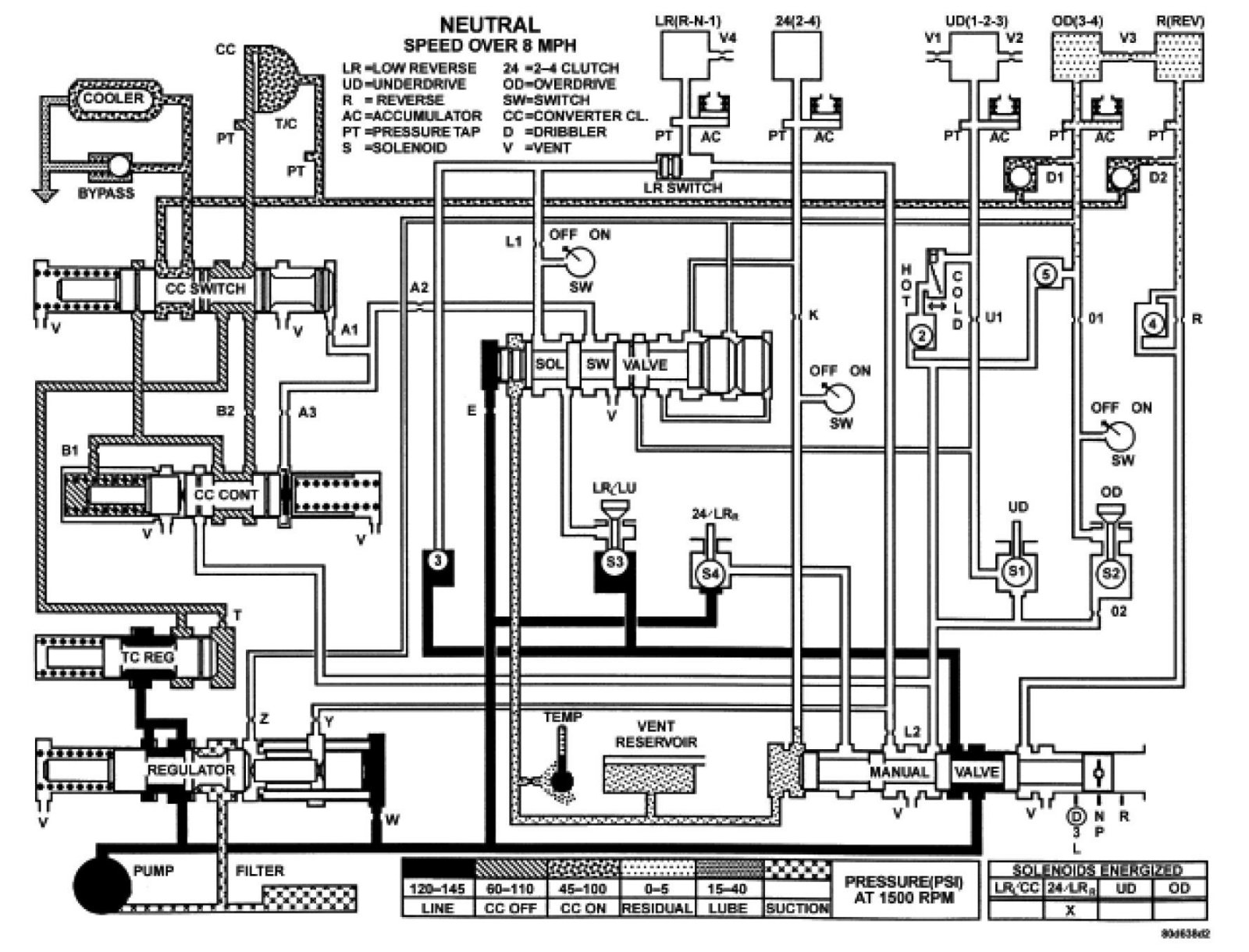

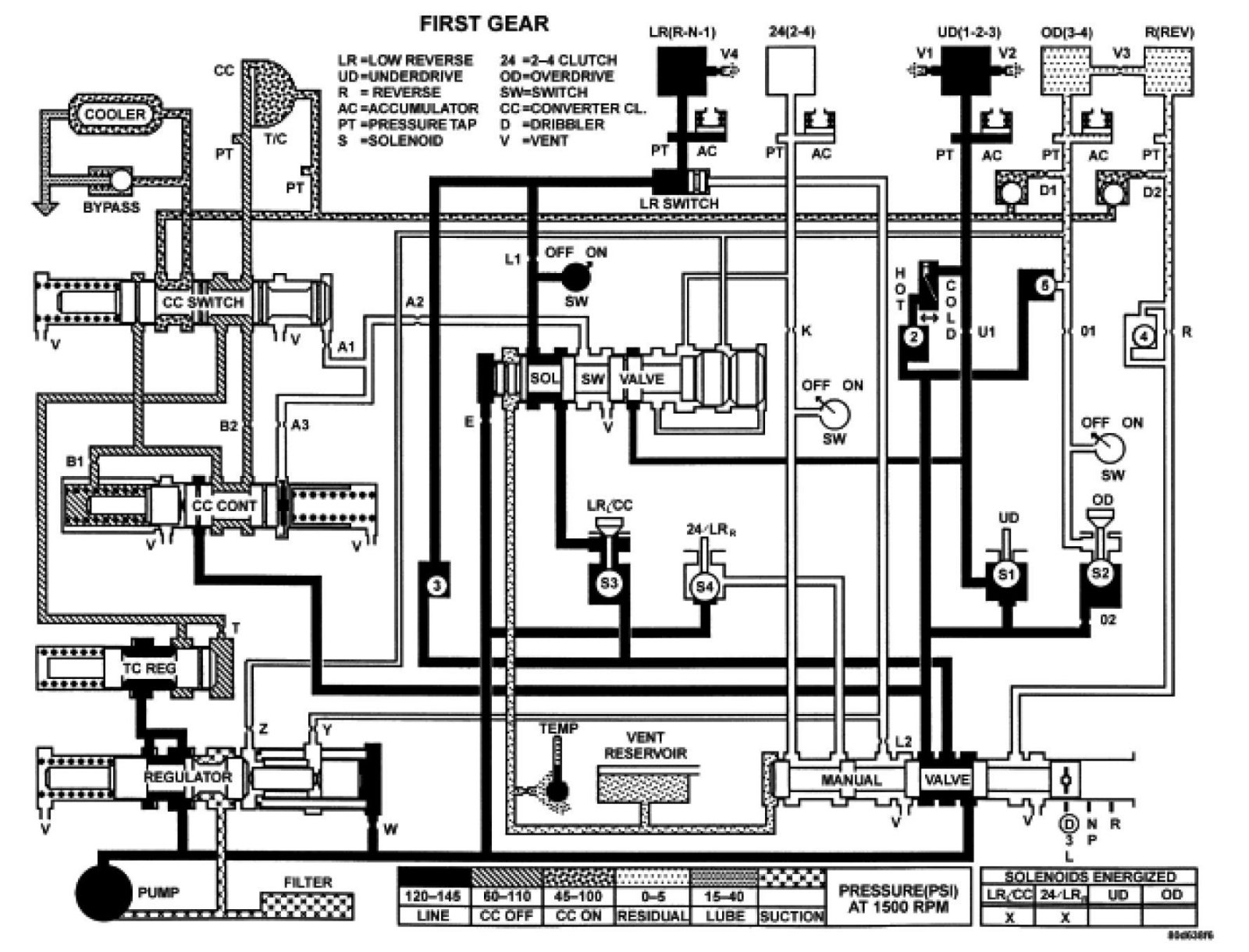

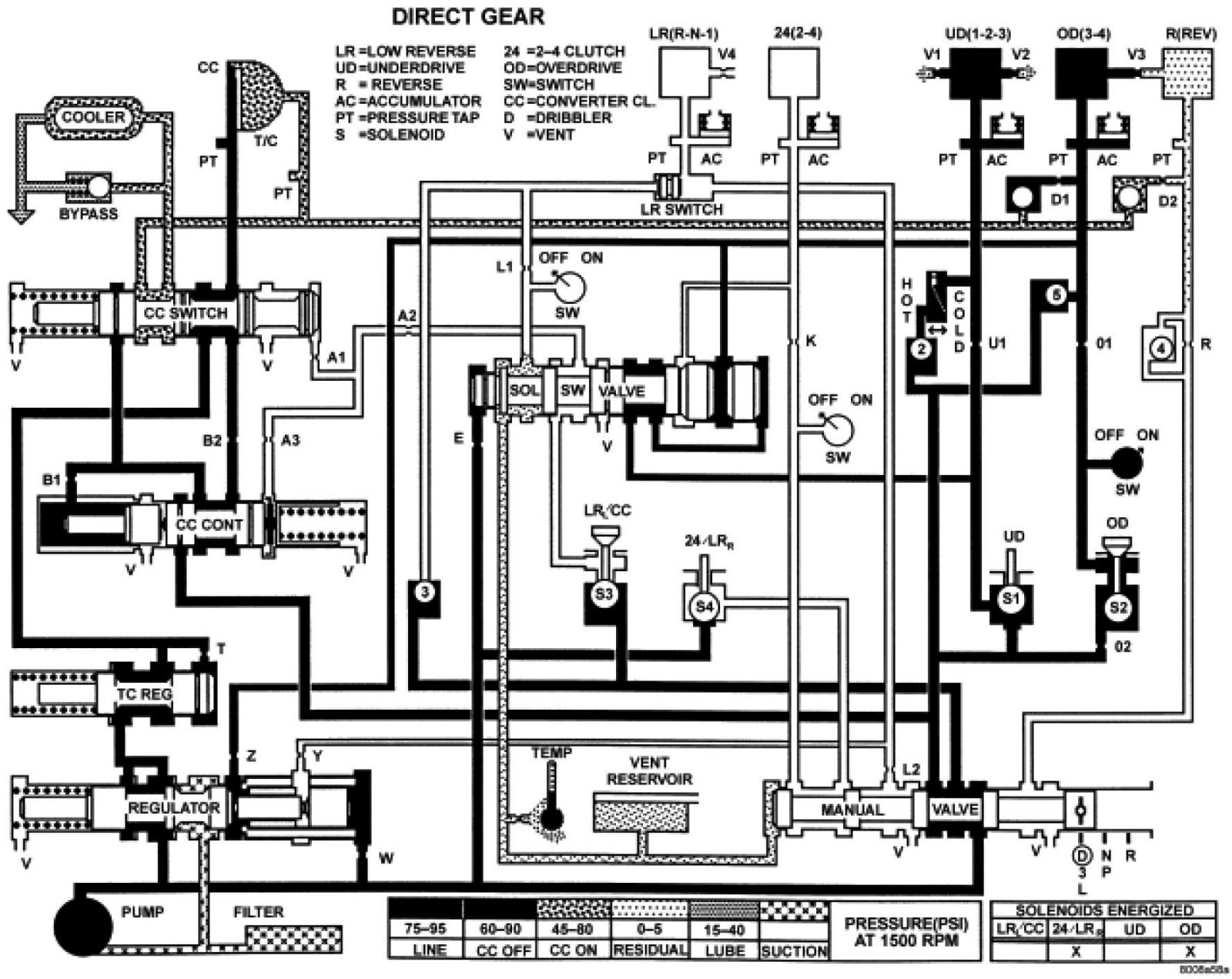

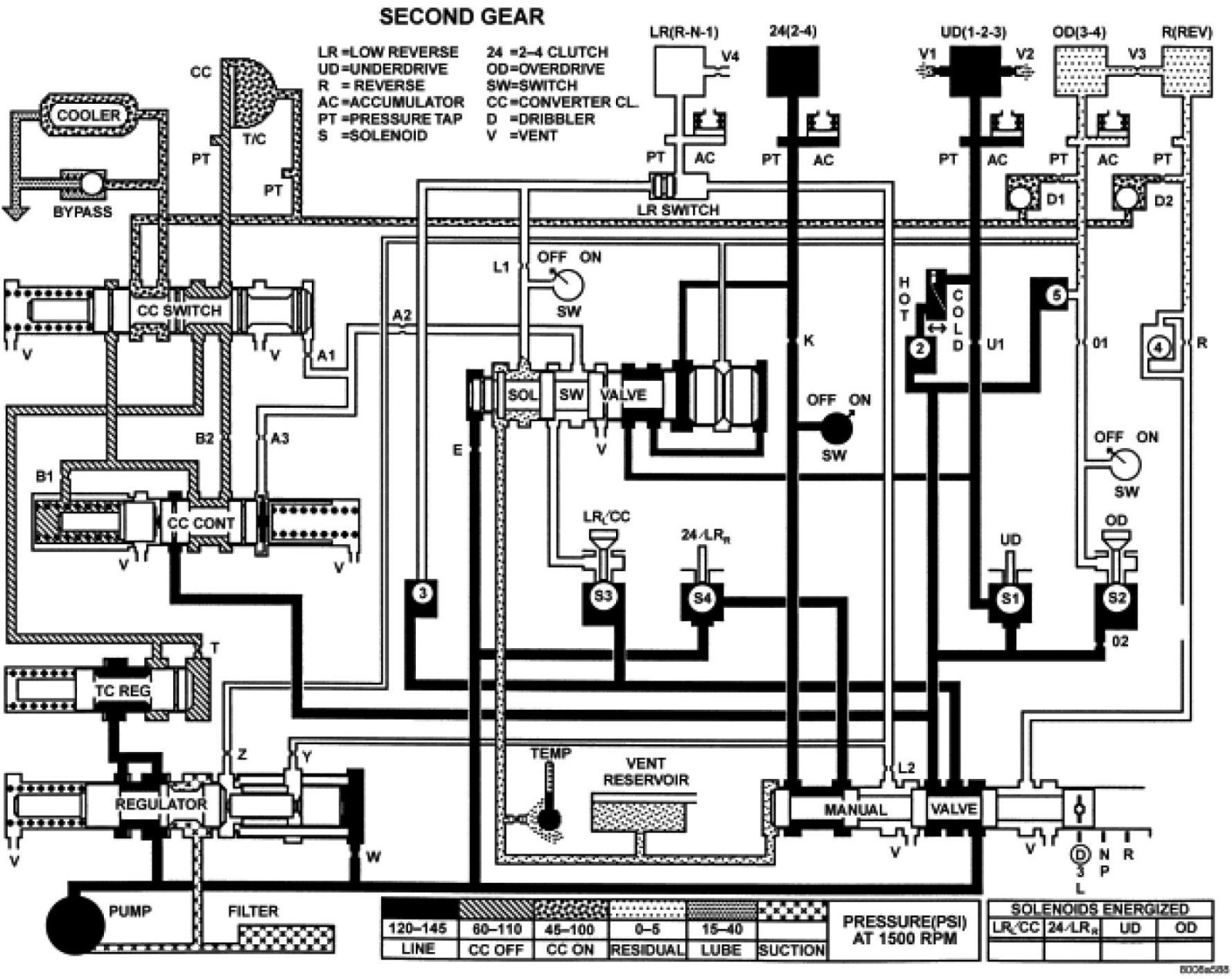

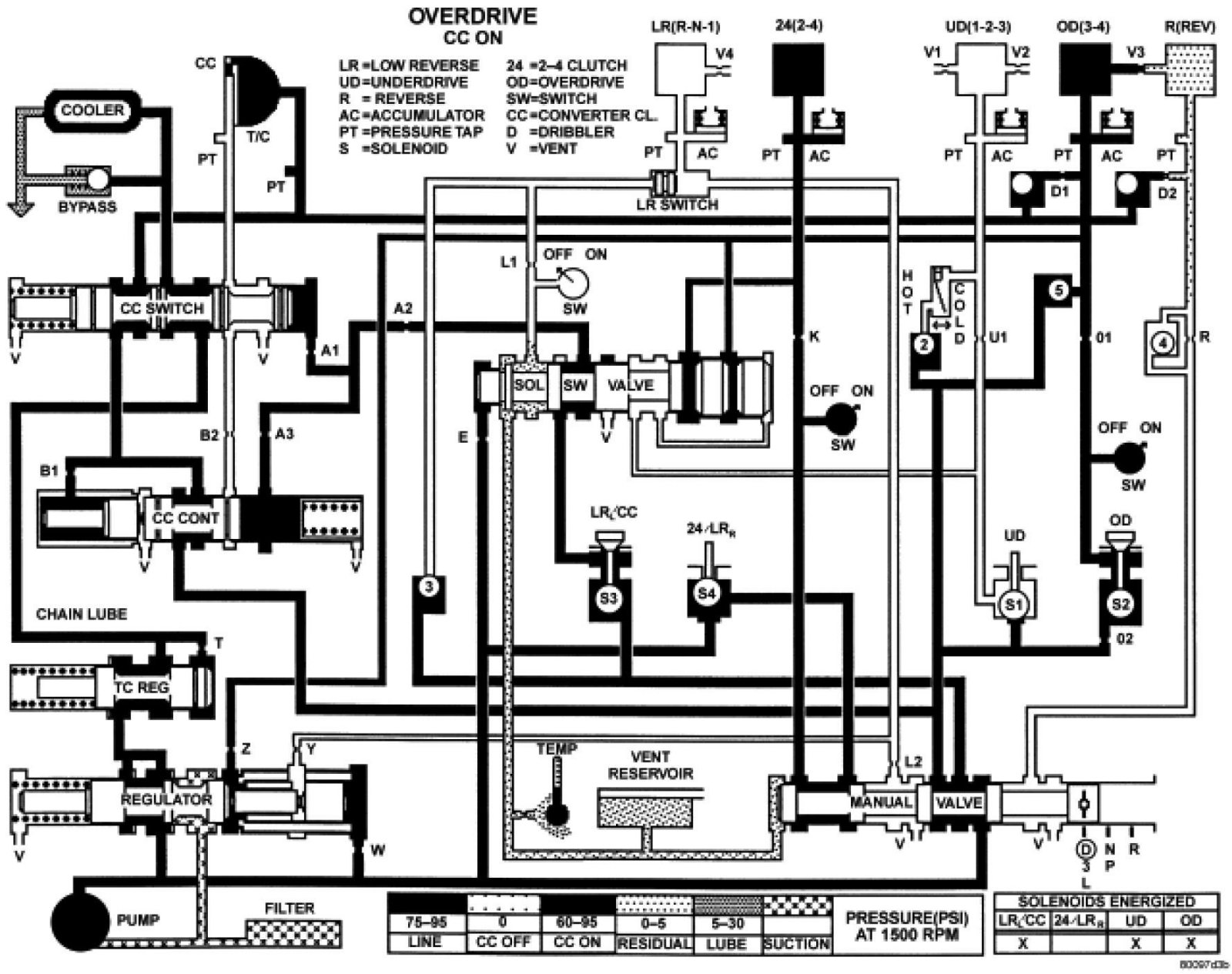

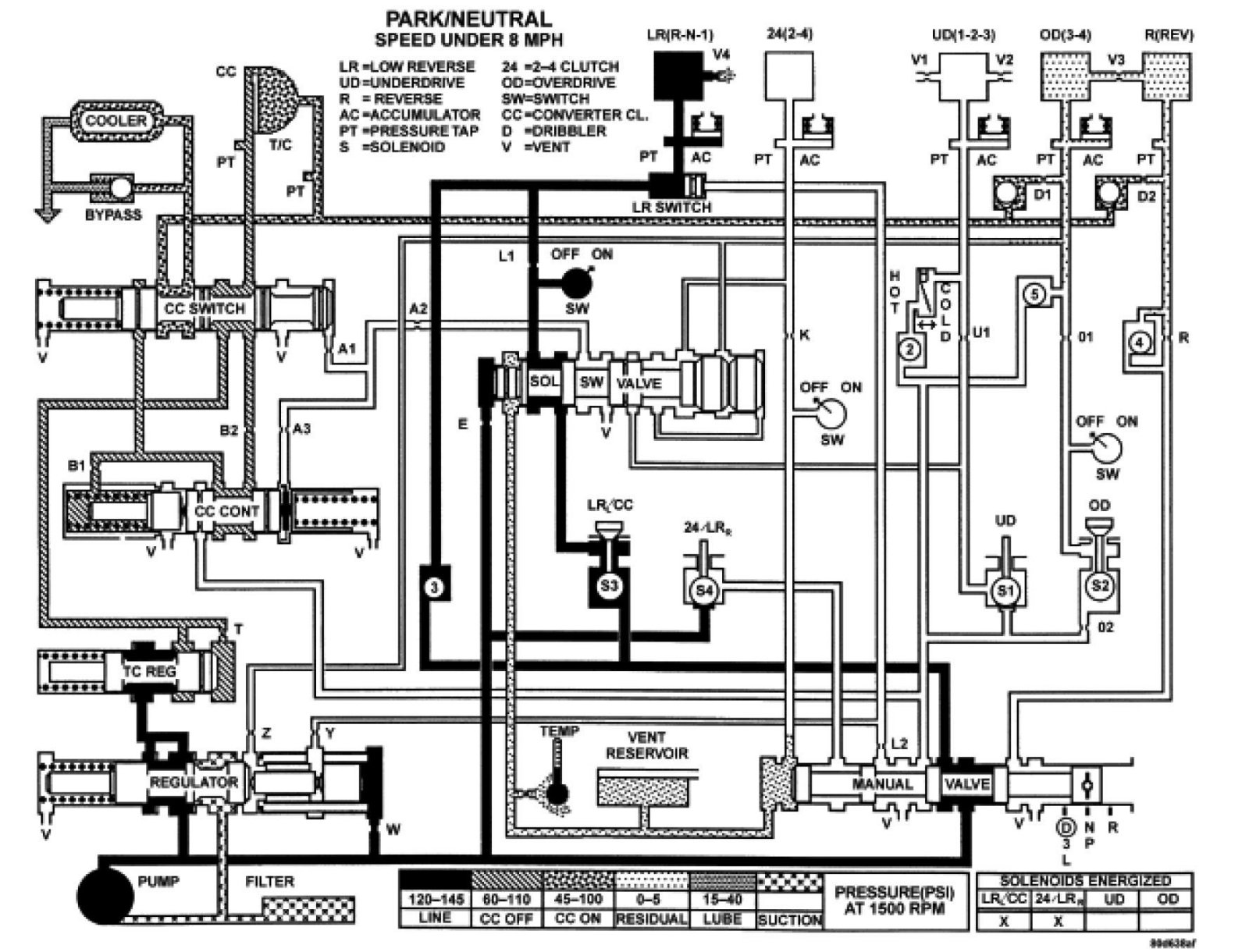

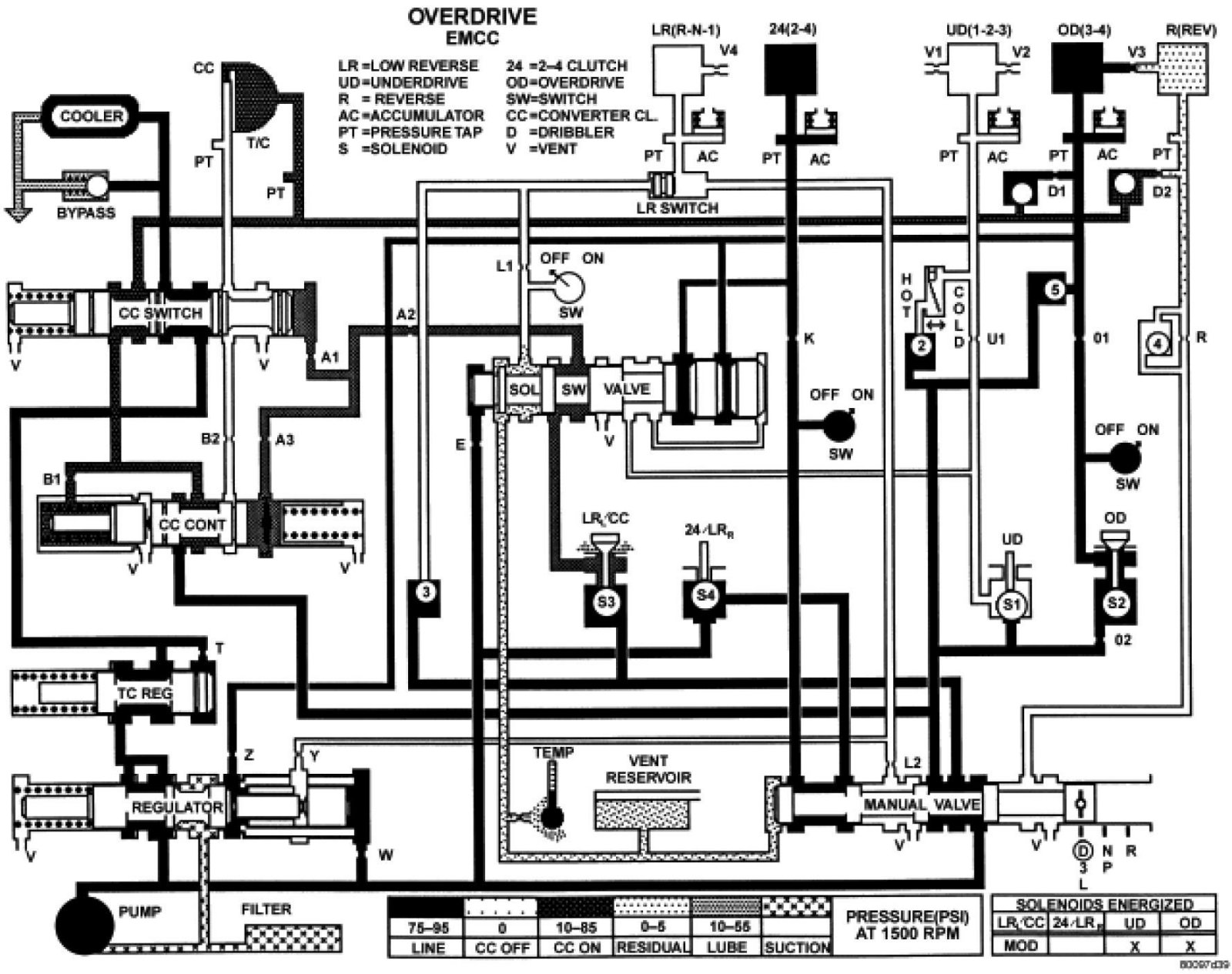

40/41TE TRANSAXLE HYDRAULIC SCHEMATICS
