Installation

INSTALLATION

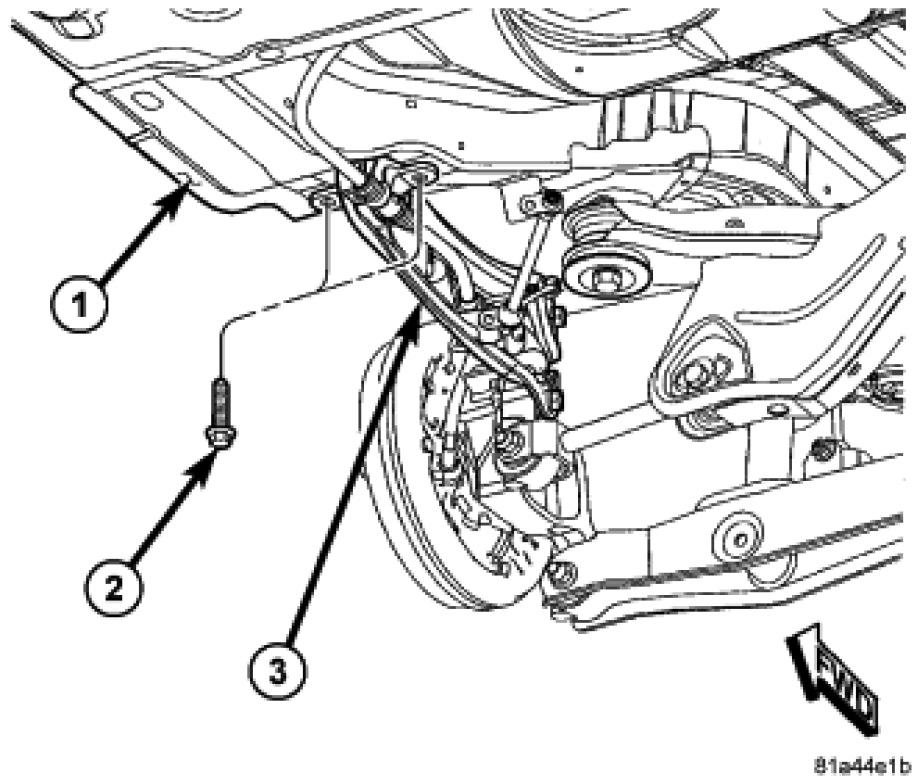

1. Position the trailing link (3) and install the two bolts (2) fastening the leading end of the trailing link to the body (1). Tighten the two mounting bolts to 110 Nm (81 ft. lbs.).

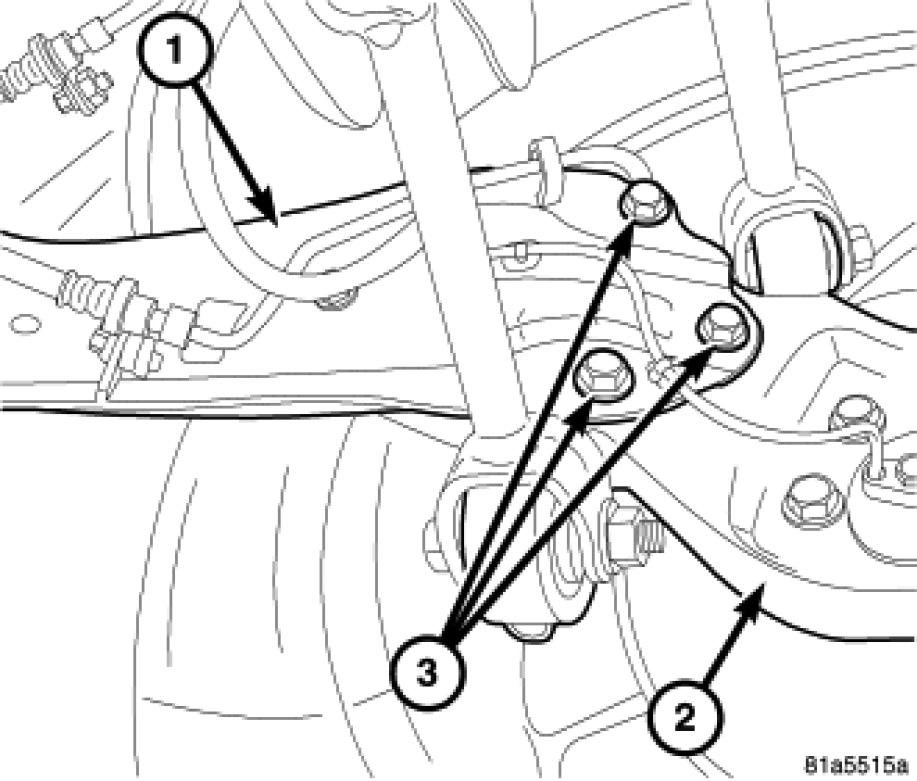

2. Install the three bolts (3) securing the trailing link (1) to the knuckle (2). Tighten the mounting bolts to 60 Nm (44 ft. lbs.).




3. Insert the parking brake cable through the trailing link from the inboard side.
4. Slide the parking brake cable (2) into the brake support plate (3) with parking brake shoes.
5. Install the hair pin (1) securing the parking brake cable (2) to the brake support plate (3).




6. Install the parking brake cable onto the lever on the parking brake shoe.
7. Install the hub and bearing, then the brake rotor or brake drum over the hub and bearing.




8. If equipped with rear disc brakes, slide the disc brake caliper (2) and adapter (3) assembly over brake rotor and brake support plate.
9. If equipped with rear disc brakes, install the two bolts (1) securing disc brake caliper adapter (3) to the brake support plate (4). Tighten the mounting bolts to 105 Nm (77 ft. lbs.).




10. If equipped, install the routing clips (4) fastening the wheel speed sensor (3) to the trailing link.
11. Install the brake tube in the routing clip (2) on the trailing link.
12. Position the brake flex hose and tube bracket (1) at the trailing link bracket and install the mounting screw (5). Tighten the screw to 23 Nm (17 ft. lbs.).




13. Install tire and wheel assembly (1). Install and tighten wheel mounting nuts (3) to 135 Nm (100 ft. lbs.).
14. Lower the vehicle.
15. Perform wheel alignment as necessary.
