Home >> Chrysler >> 2007 >> Sebring Sedan L4-2.4L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Manual Transmission/Transaxle >> BG6 Manual Transaxle

BG6 Manual Transaxle






SPECIFICATIONS

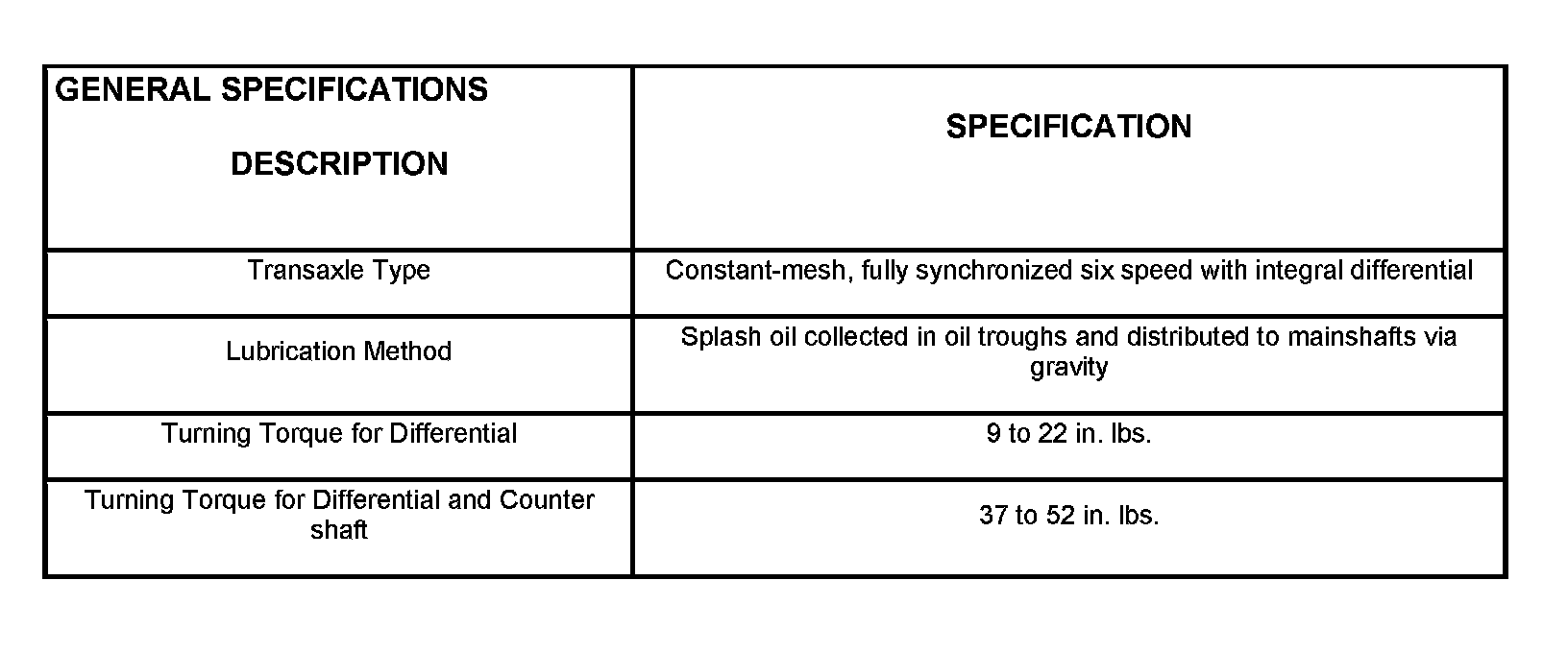

General Specifications:

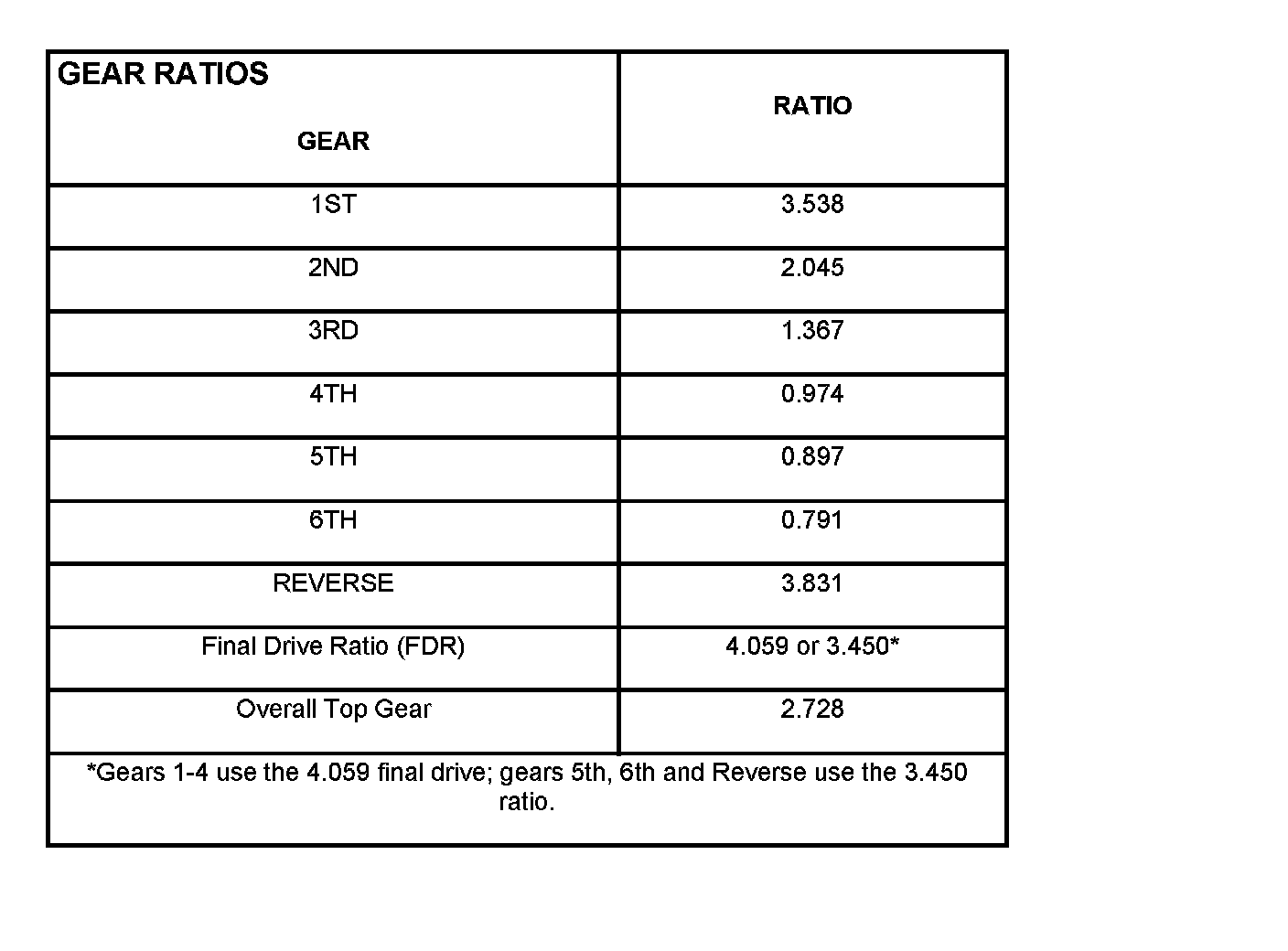

Gear Ratios:

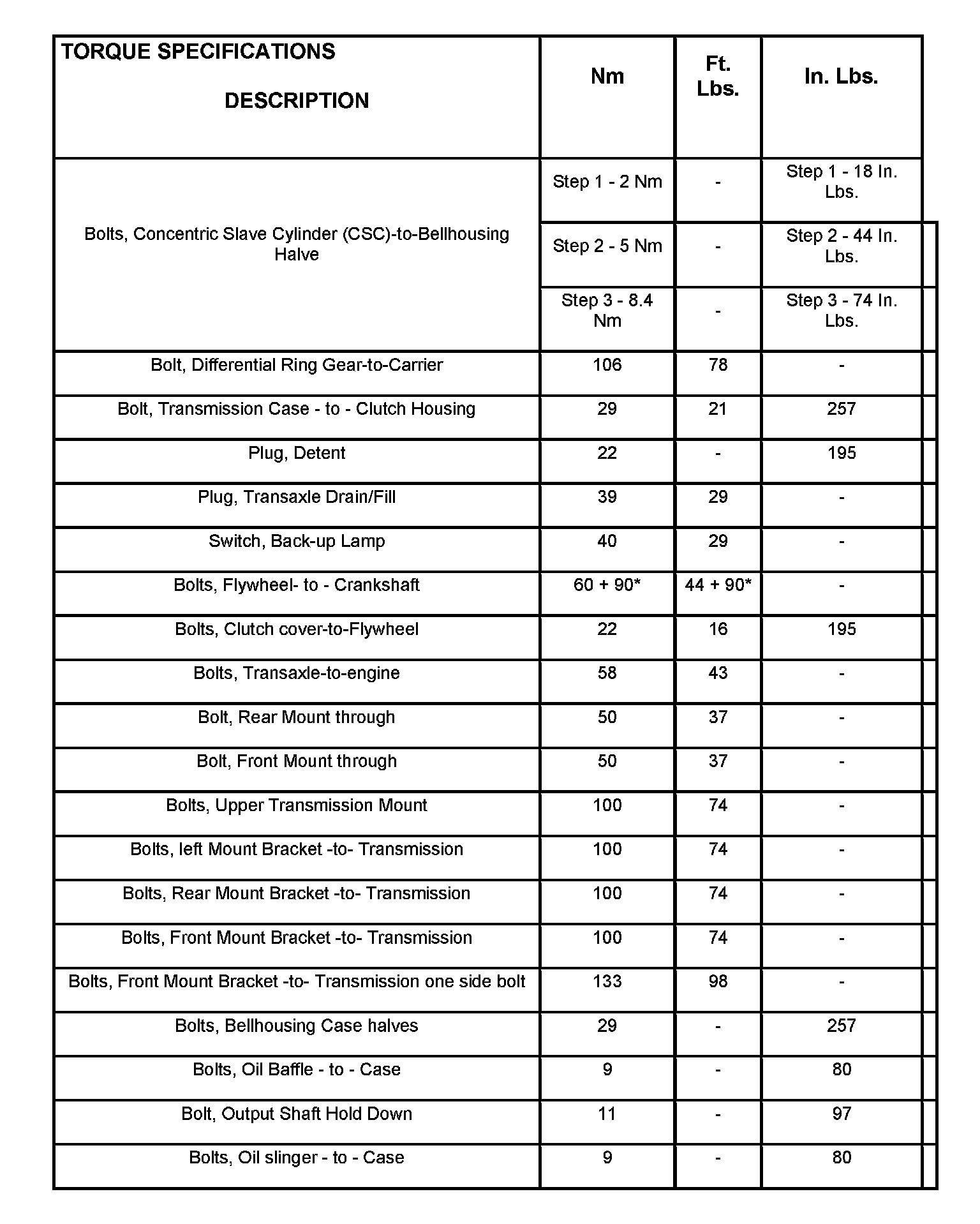

Torque Specifications (Part 1):

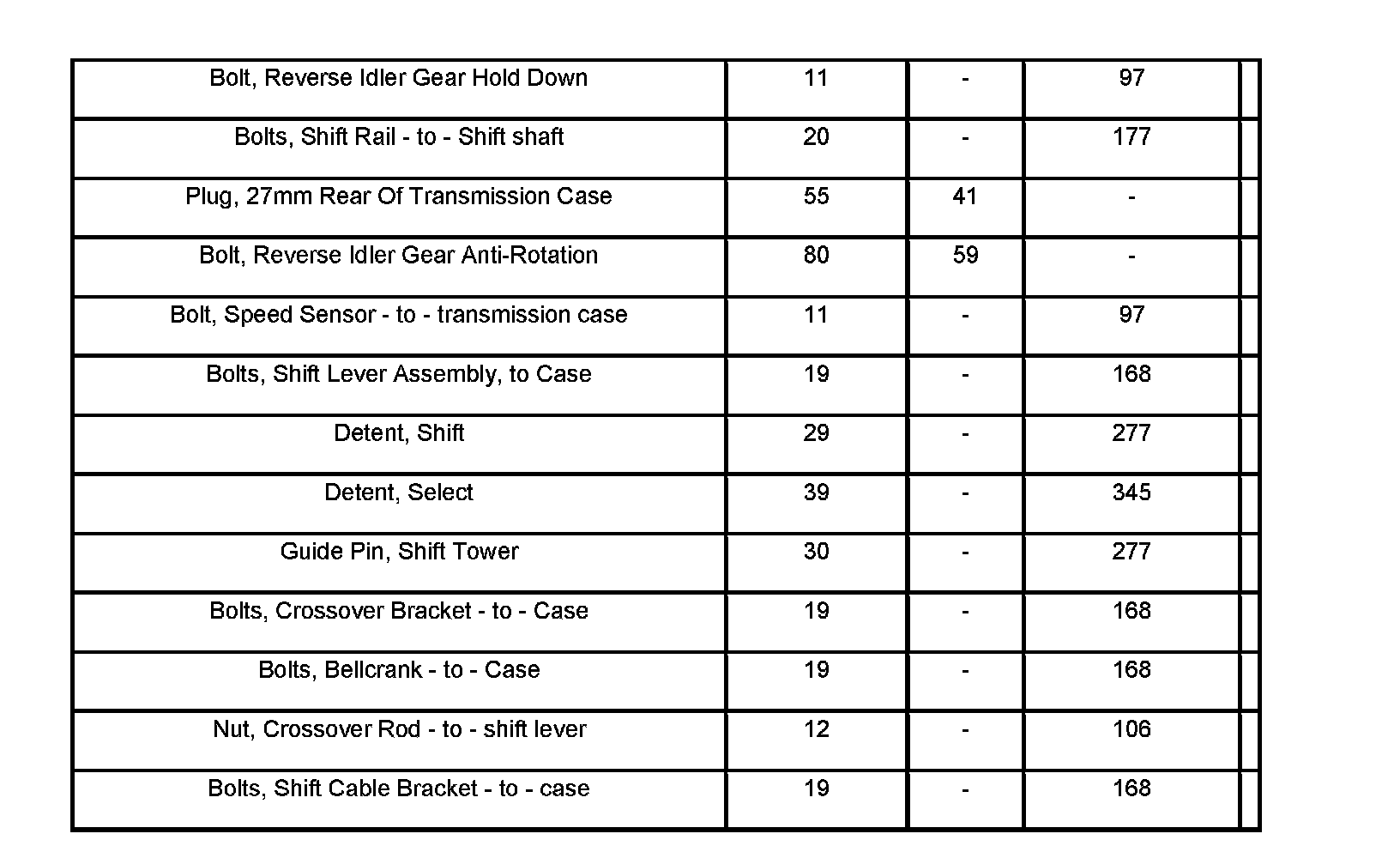

Torque Specifications (Part 2):
