System Specifications






SPECIFICATIONS - 40TE TRANSAXLE

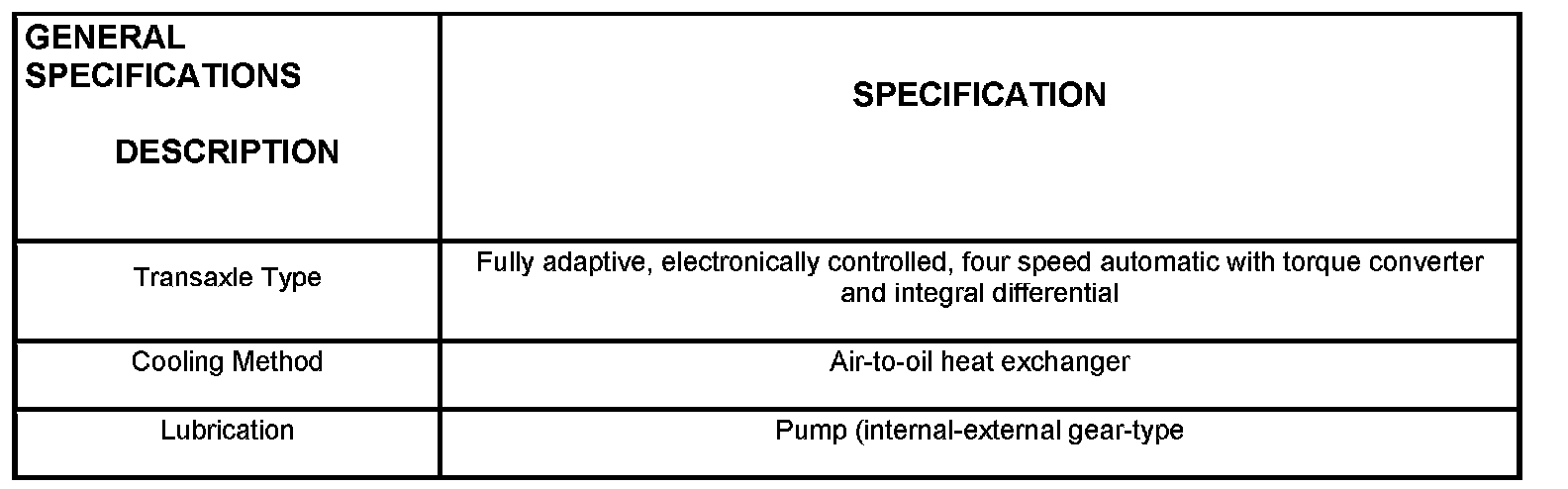

General Specifications:

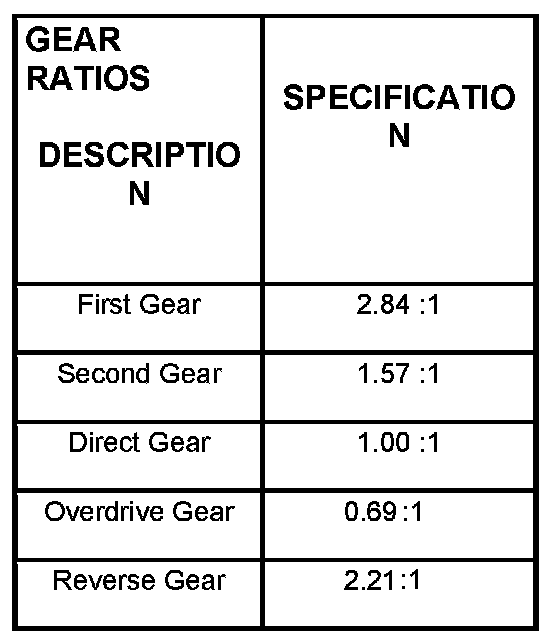

Gear Ratios:

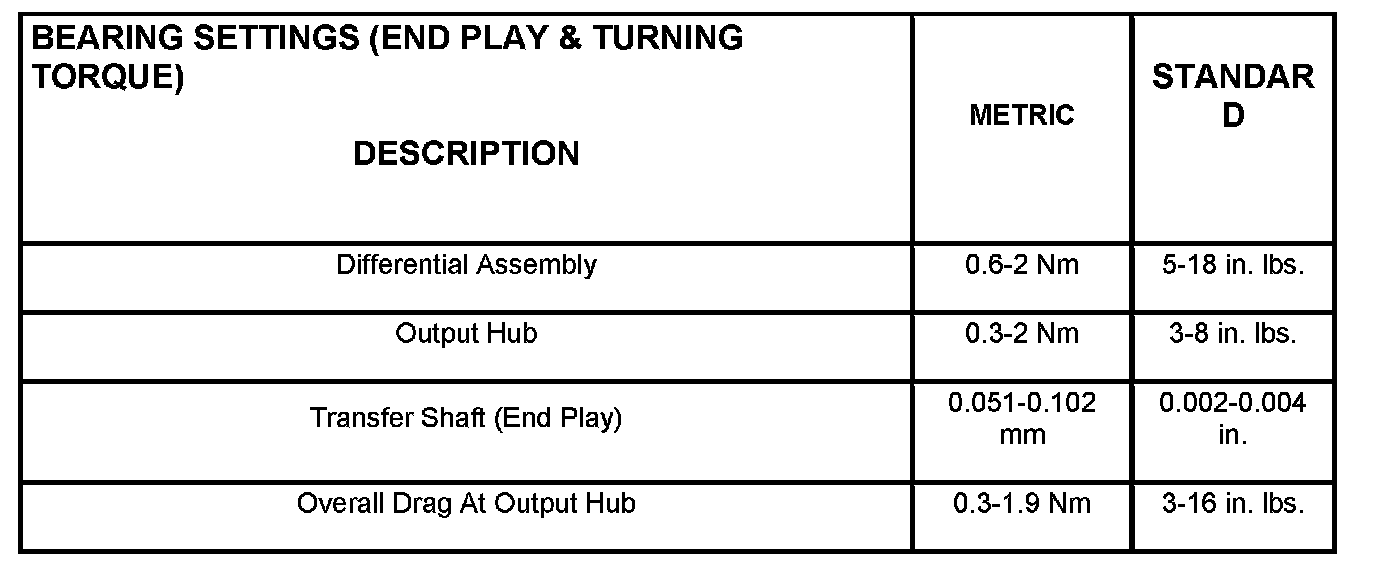

Bearing Settings (End Play And Turning Torque):

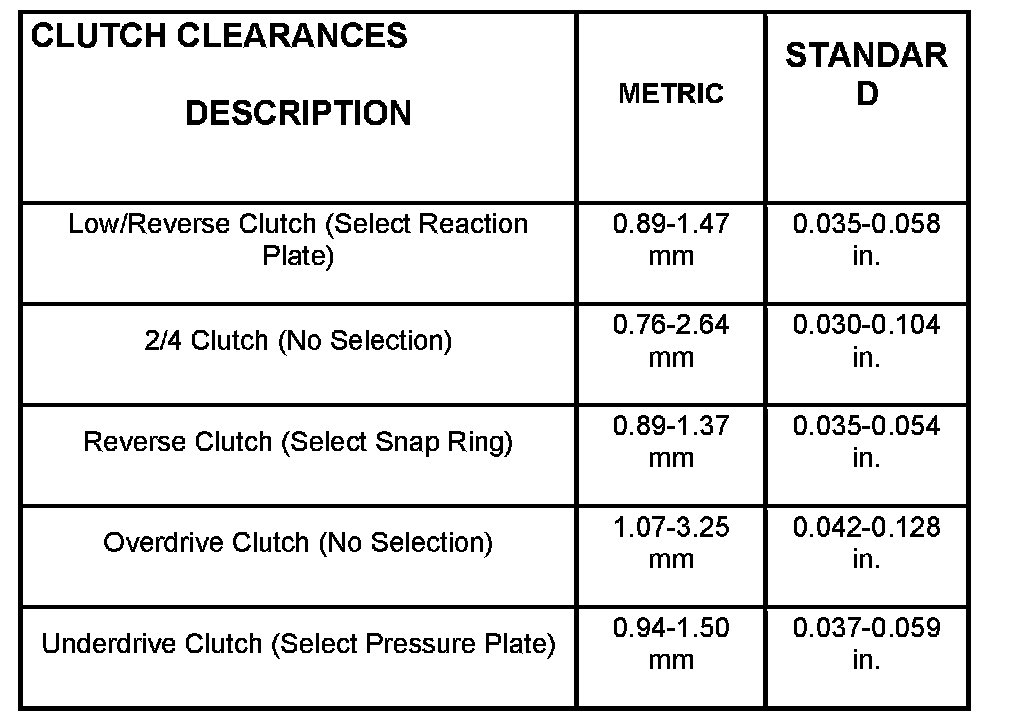

Clutch Clearances:

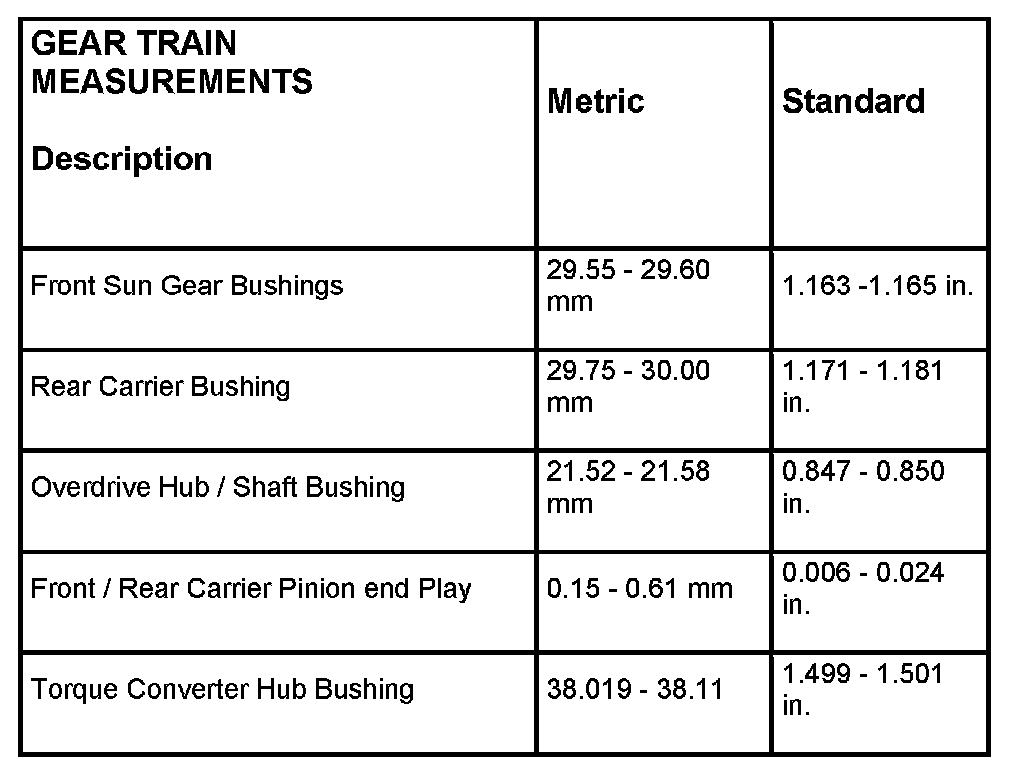

Gear Train Measurements:

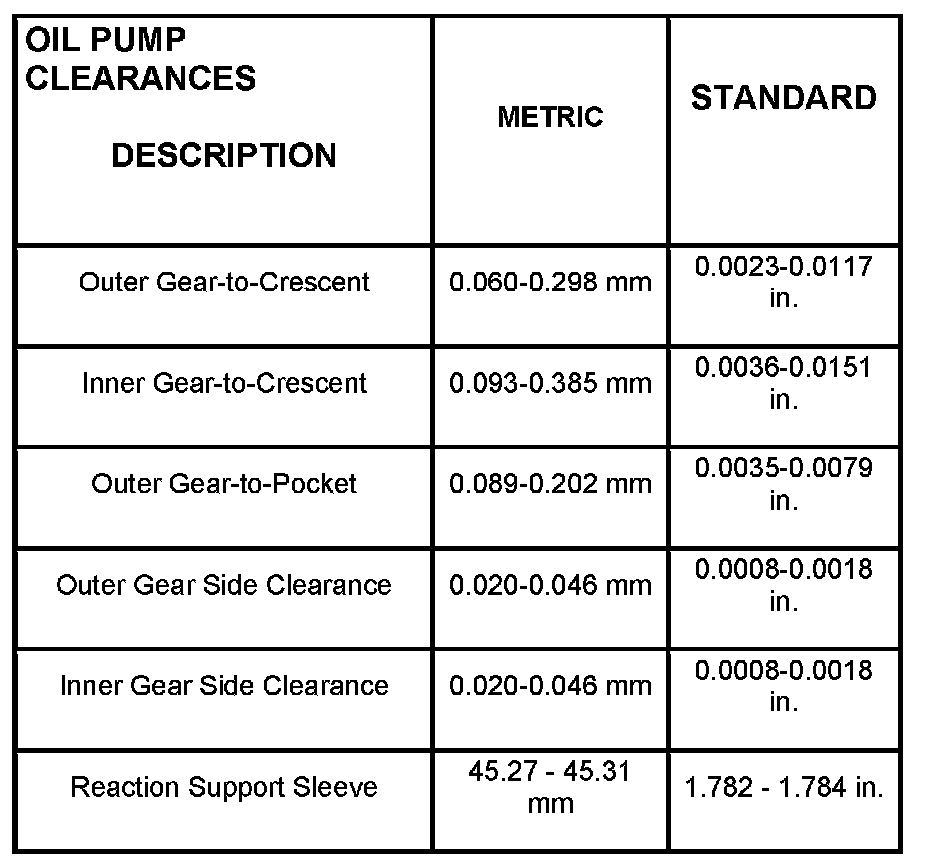

Oil Pump Clearances:

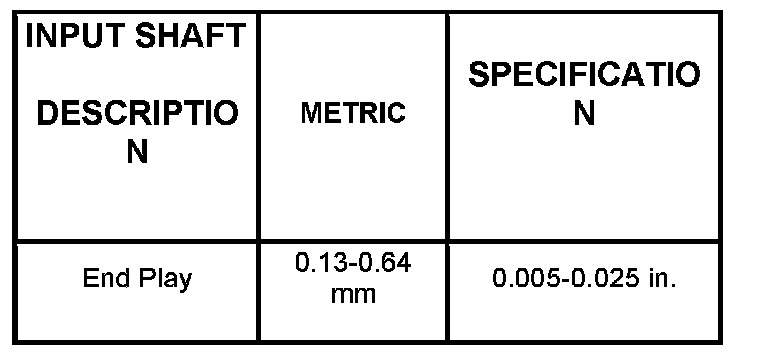

Input Shaft:
