Sensor-Wheel Speed-ABS-Left Front

Component ID: 377
Component : SENSOR-WHEEL SPEED-ABS-LEFT FRONT

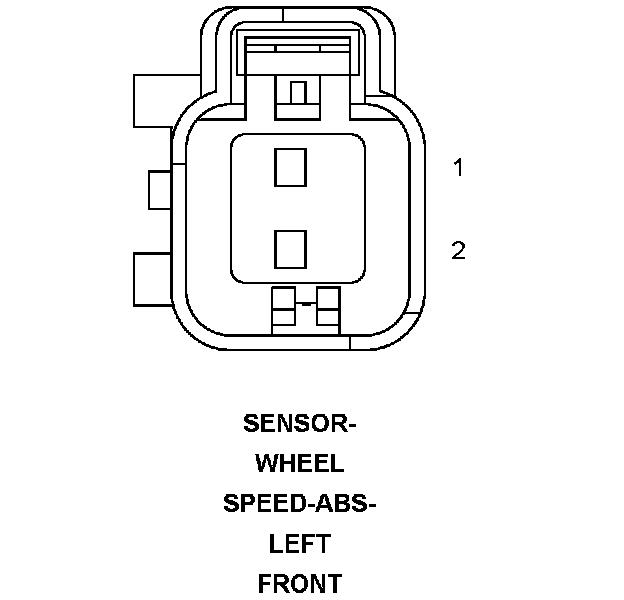

Connector:
Name : SENSOR-WHEEL SPEED-ABS-LEFT FRONT
Color :
# of pins : 2




Pin Description Circuit
1 LEFT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY B9 20RD
2 LEFT FRONT WHEEL SPEED SENSOR SIGNAL B8 20RD/DB

Component Location - 16

Fig. 16:

Component Location - 17

Fig. 17:

Component Location - 18

Fig. 18:

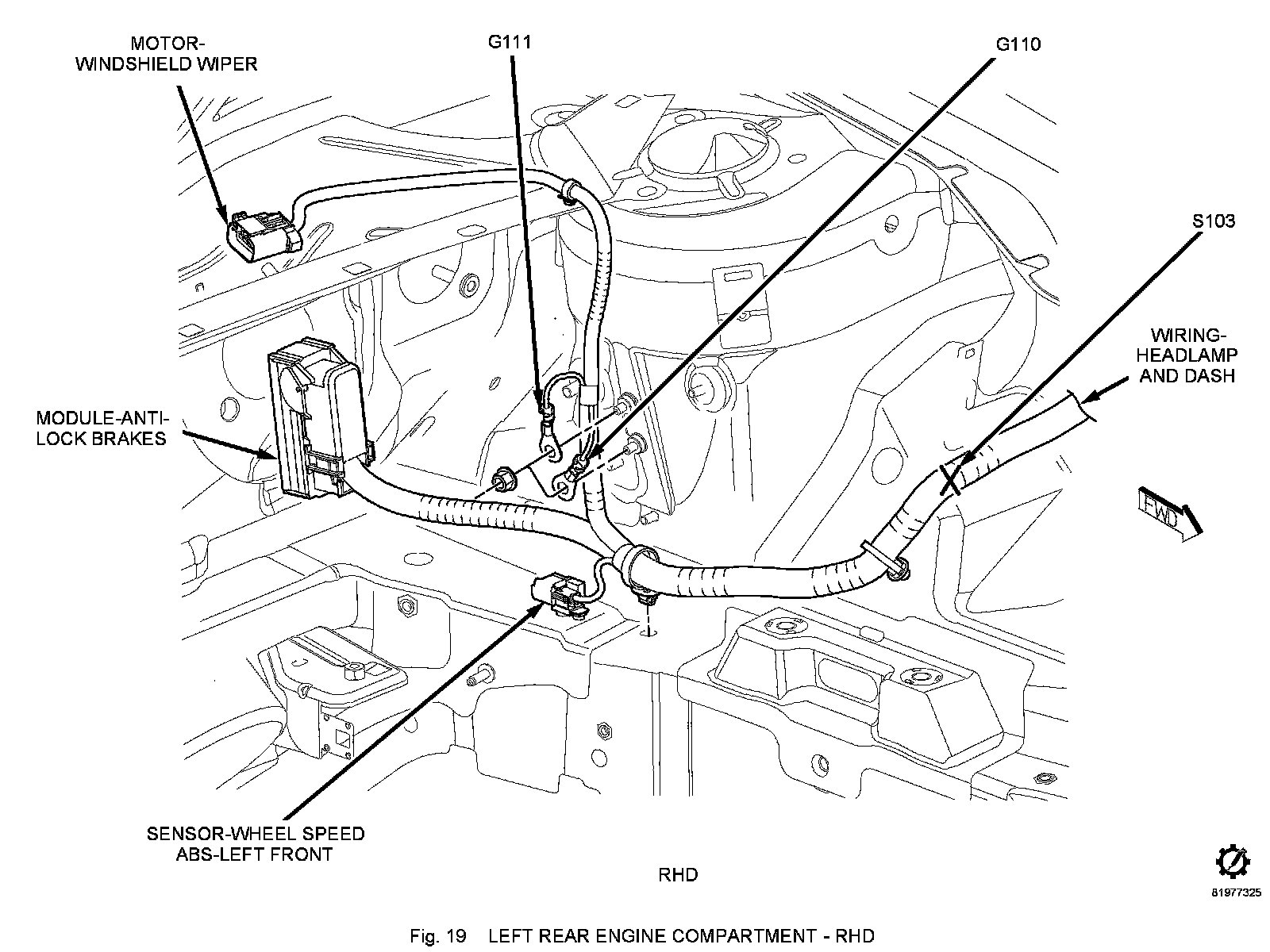

Component Location - 19

Fig. 19:

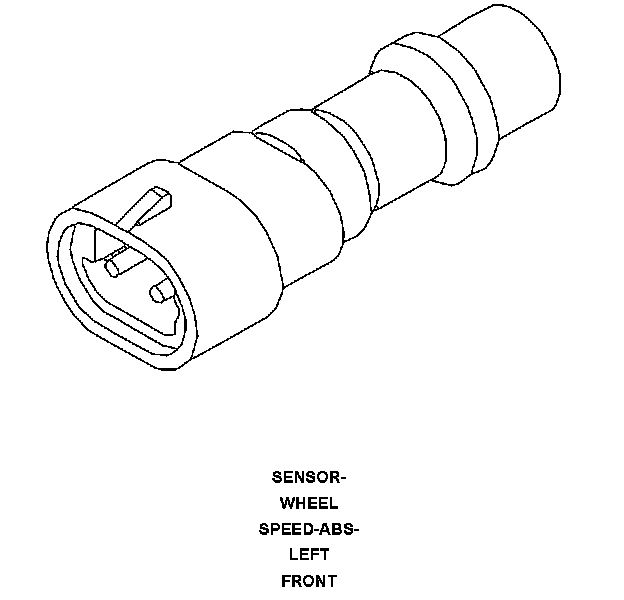

Connector:
Name : SENSOR-WHEEL SPEED-ABS-LEFT FRONT
Color :
# of pins : 2




Pin Description Circuit
1 LEFT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY RD
2 LEFT FRONT WHEEL SPEED SENSOR SIGNAL RD/DB

Component Location - 16

Fig. 16:

Component Location - 17

Fig. 17:

Component Location - 18

Fig. 18:

Component Location - 19

Fig. 19:
