Power Seat Switch: Diagrams

Component ID: 412

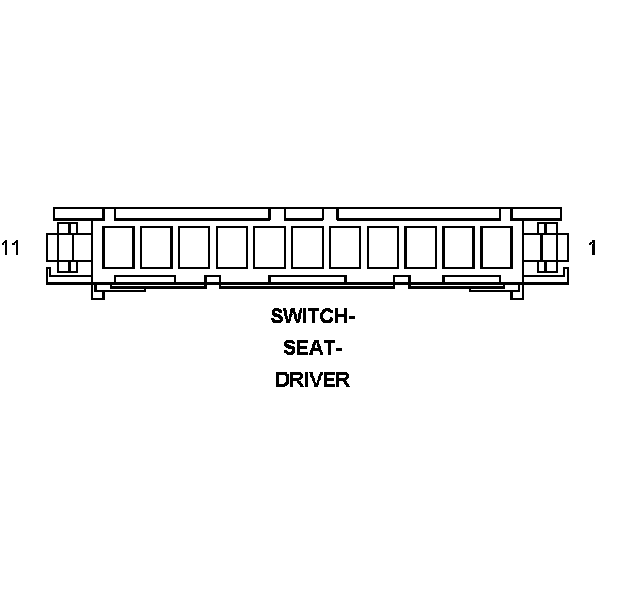

Component : SWITCH-SEAT-DRIVER

Connector:
Name : SWITCH-SEAT-DRIVER
Color :
# of pins : 11




Pin Description Circuit
1 DRIVER SEAT RECLINER DOWN DRIVER P41 16LG/GY
2 - -
3 DRIVER SEAT RECLINER UP DRIVER P43 16LG/VT
4 DRIVER SEAT HORIZONTAL REARWARD DRIVER P17 16LG/DG
5 DRIVER SEAT FRONT DOWN DRIVER P21 16LG/TN
6 FUSED B(+) A929 12RD
7 GROUND Z914 12BK
8 DRIVER SEAT HORIZONTAL FORWARD DRIVER P15 16LG/WT
9 DRIVER SEAT FRONT UP DRIVER P19 16LG/LB
10 DRIVER SEAT REAR RISER DOWN DRIVER P13 16LG/OR
11 DRIVER SEAT REAR RISER UP DRIVER P11 16LG/YL
