Airbag-Side Curtain-Right

Component ID: 11

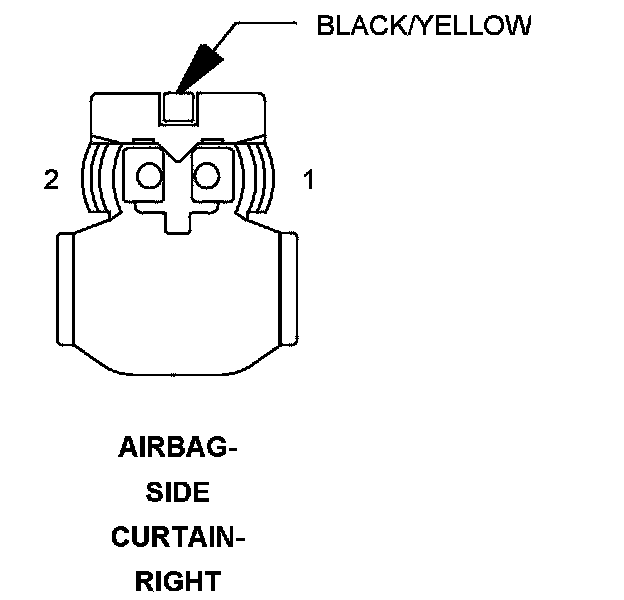

Component : AIRBAG-SIDE CURTAIN-RIGHT

Connector:
Name : AIRBAG-SIDE CURTAIN-RIGHT
Color : BLACK/YELLOW
# of pins : 2




Pin Description Circuit
1 RIGHT CURTAIN SQUIB 1 LINE 1 R4 18OR/LB
2 RIGHT CURTAIN SQUIB 1 LINE 2 R2 18WT/LB
