Airbag-Side Curtain-Left

Component ID: 10

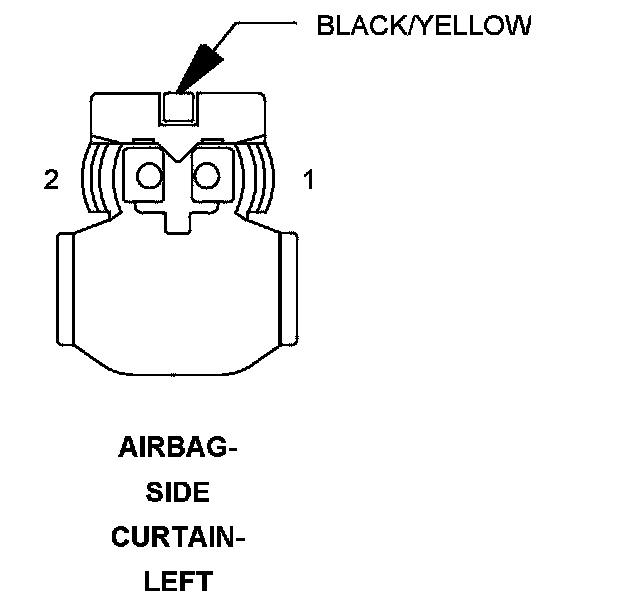

Component : AIRBAG-SIDE CURTAIN-LEFT

Connector:
Name : AIRBAG-SIDE CURTAIN-LEFT
Color : BLACK/YELLOW
# of pins : 2




Pin Description Circuit
1 LEFT CURTAIN SQUIB 1 LINE 2 R1 18LB/WT
2 LEFT CURTAIN SQUIB 1 LINE 1 R3 18LB/OR

Component Location - 65
