Airbag-Right Seat Squib

Component ID: 9

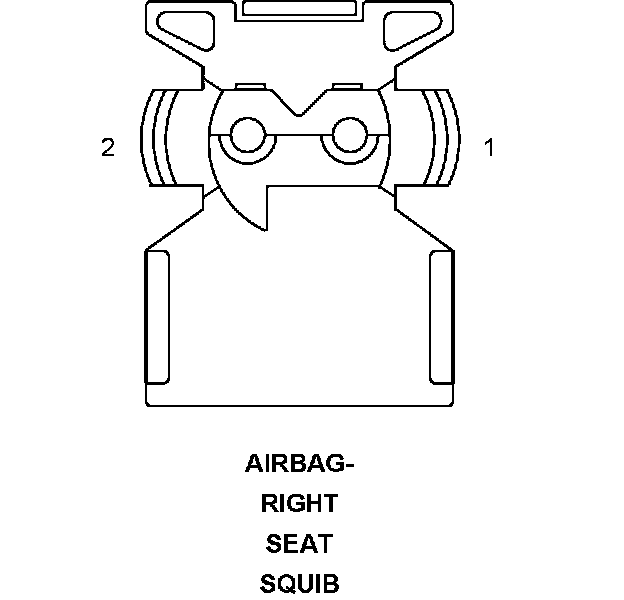

Component : AIRBAG-RIGHT SEAT SQUIB

Connector:
Name : AIRBAG-RIGHT SEAT SQUIB
Color :
# of pins : 2




Pin Description Circuit
1 RIGHT SEAT SQUIB 1 LINE 2 R6 18VT/LB
2 RIGHT SEAT SQUIB 1 LINE 1 R8 18GY/LG
