Airbag-Passenger Squib 1

Component ID: 7
Component : AIRBAG-PASSENGER SQUIB 1

Connector:
Name : AIRBAG-PASSENGER SQUIB 1
Color : BLACK/YELLOW
# of pins : 2




Pin Description Circuit
1 PASSENGER SQUIB 1 LINE 2 R42 18LB/BR
2 PASSENGER SQUIB 1 LINE 1 R44 18LB/OR

Component Location - 37




Component Location - 39




Component Location - 42

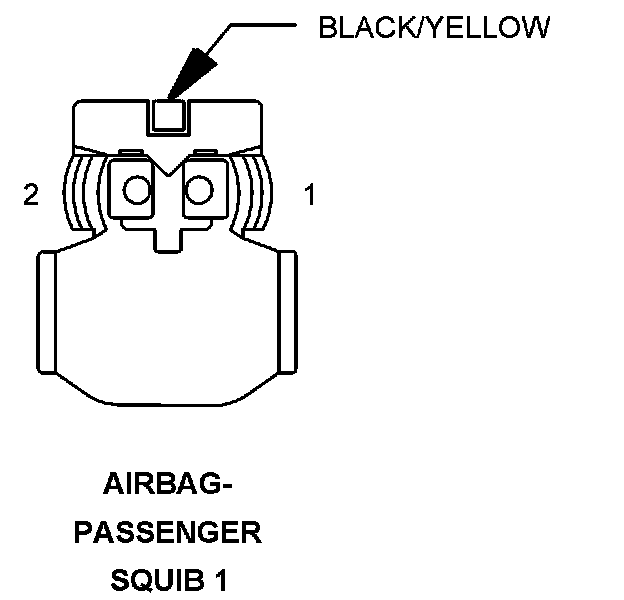

Fig. 42:
