Variable Induction Control Valve: Diagrams

Component ID: 424
Component : VALVE-MANIFOLD FLOW

Connector:
Name : VALVE-MANIFOLD FLOW
Color :
# of pins : 6
Qualifier : (2.0L/2.4L)




Pin Description Circuit
1 GROUND Z906 20BK
2 - -
3 MFV CONTROL K601 20BR/VT
4 SENSOR GROUND K900 20DB/LB
5 MFV SIGNAL K602 20YL/DB
6 5 VOLT SUPPLY F856 20YL/PK

Component Location - 28

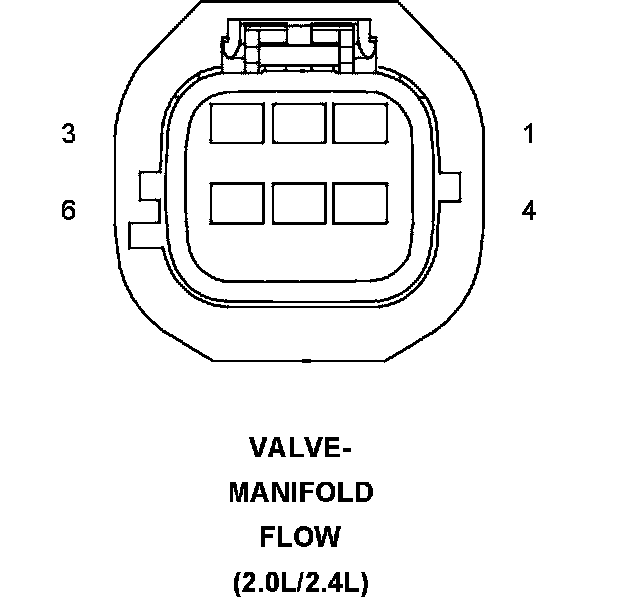

Fig. 28:
