Throttle Body: Locations

Component ID: 418
Component : THROTTLE BODY

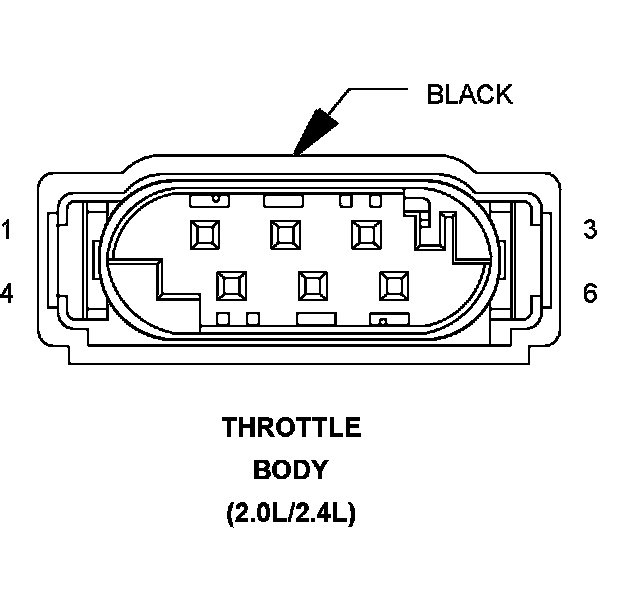

Connector:
Name : THROTTLE BODY
Color : BLACK
# of pins : 6
Qualifier : (2.0L/2.4L)




Pin Description Circuit
1 ETC MOTOR (+) K124 20DB/VT
2 TP SENSOR GROUND K922 20BR/DB
3 5 VOLT SUPPLY F855 20PK/YL
4 ETC MOTOR (-) K126 20DB/LG
5 TP SIGNAL 1 K22 20BR/OR
6 TP SIGNAL 2 K122 20BR/DG

Component Location - 21




Component Location - 25




Component Location - 28

Fig. 28:

Connector:
Name : THROTTLE BODY
Color : BLACK
# of pins : 6
Qualifier : (2.7L/3.5L)




Pin Description Circuit
1 TP SIGNAL 1 K22 18BR/OR
2 5 VOLT SUPPLY F855 20PK/YL
3 ETC MOTOR (+) K124 18DB/GY
4 TP SIGNAL 2 K122 18BR/DG
5 ETC MOTOR (-) K126 18DB/LG
6 TP SENSOR GROUND K922 18BR/DB

Component Location - 21




Component Location - 25




Component Location - 28

Fig. 28:
