INSTALLATION
1.

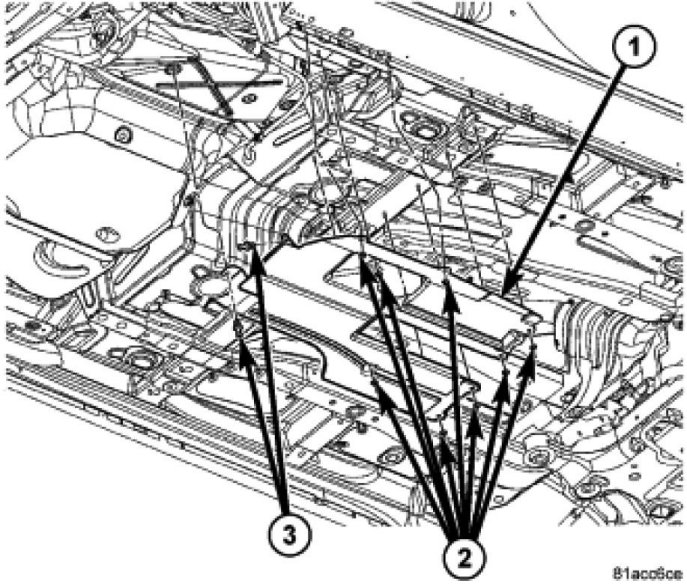

Install the right shield (1), pushpins (3) and tighten the nuts (2) to
29 Nm (21 ft. lbs.)
.
