Description

DESCRIPTION

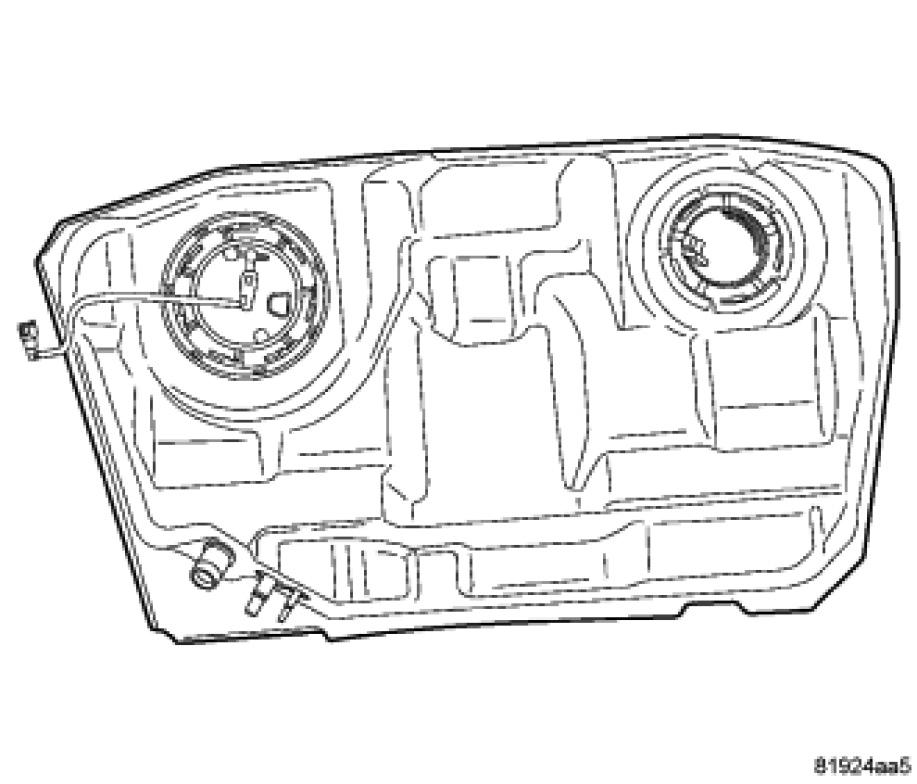

PZEV STEEL TANK JS/JC

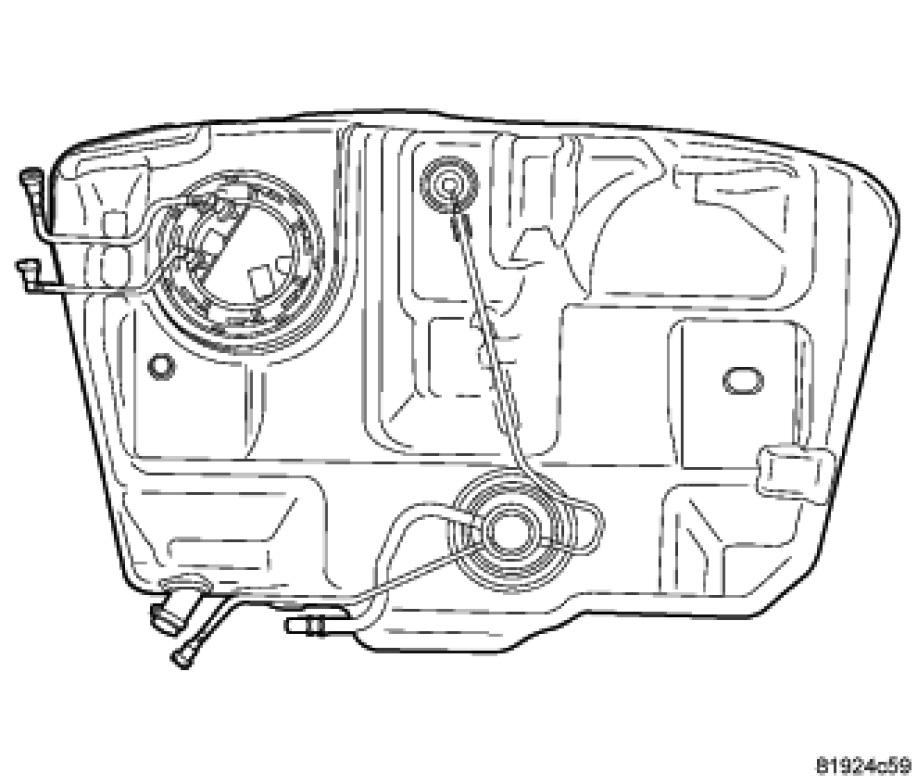

STEEL TANK AWD JS

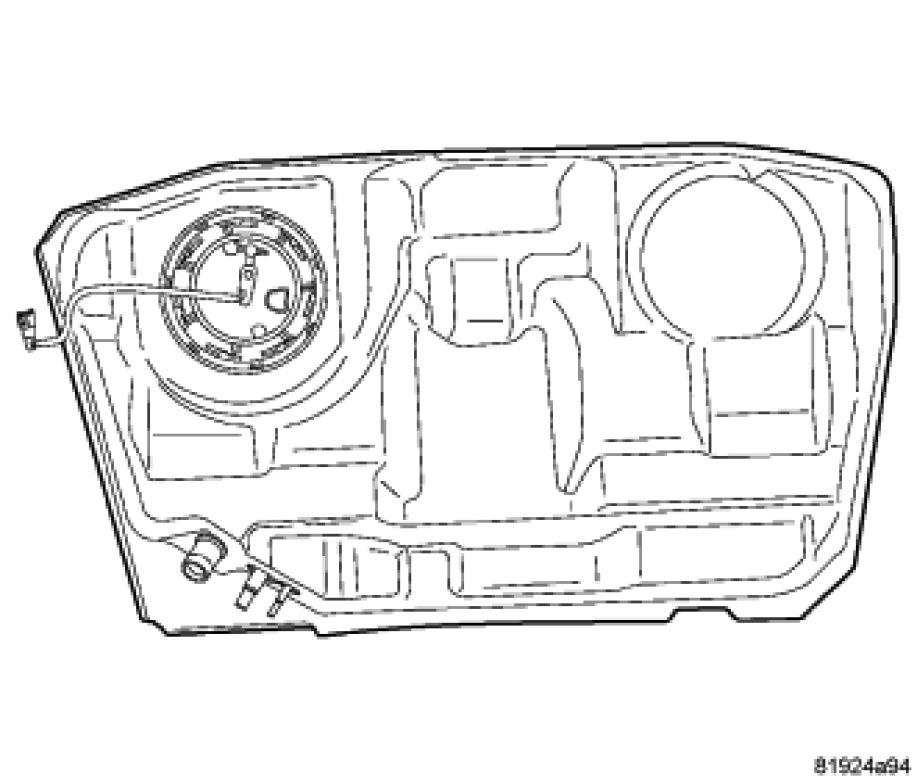

PLASTIC FWD JS

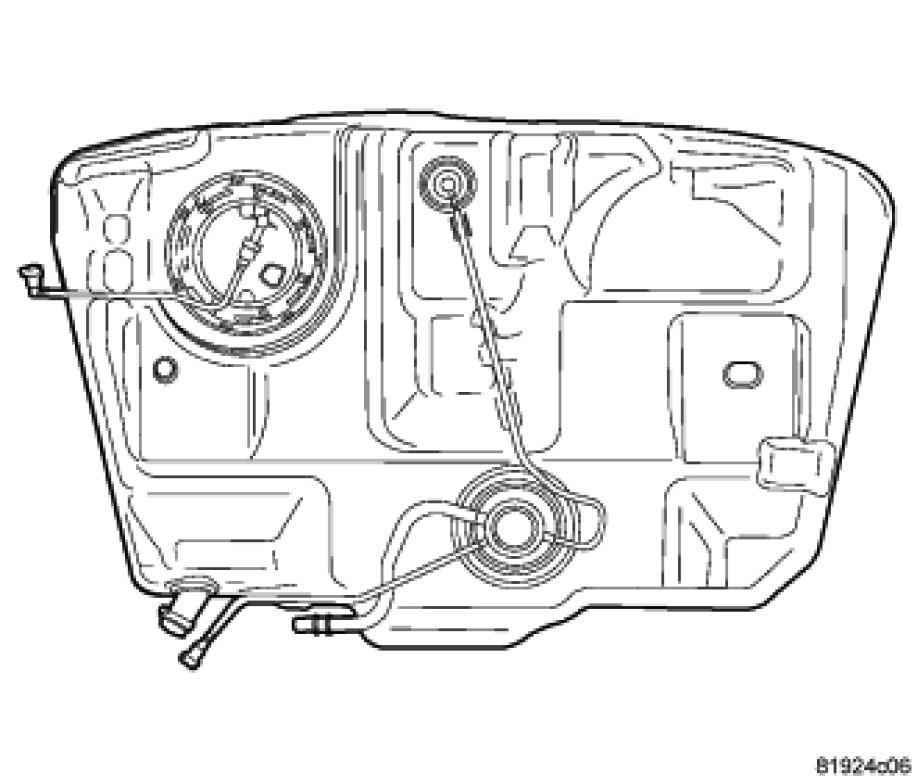

DIESEL TANK JS FWD

The fuel tank is constructed of a plastic material. Its main functions are for fuel storage and for placement of the fuel pump module. The tank is made from High density Polyethylene (HDPE) material. If equipped with ORVR (Onboard Refueling Vapor Recovery) it has been added to the fuel tank to control refueling vapor emissions.

The PZEV (Partial Zero Emission Vehicle) fuel tank is a steel tank with the check valves, and hoses inside of the tank. This system uses the ESIM (Evaporative System Integrity Monitor) system for leak detection for both plastic and steel tanks.
