Sensor-Oxygen 2/2

Component ID: 365
Component : SENSOR-OXYGEN 2/2

Connector:
Name : SENSOR-OXYGEN 2/2
Color : BLACK
# of pins : 4
Qualifier : (2.7L/3.5L)




Pin Description Circuit
1 O2 2/2 HEATER CONTROL K399 16BR/GY
2 GROUND Z902 20BK
3 O2 RETURN (DOWN) K904 20DB/DG
4 O2 2/2 SIGNAL K243 20BR

Component Location - 17

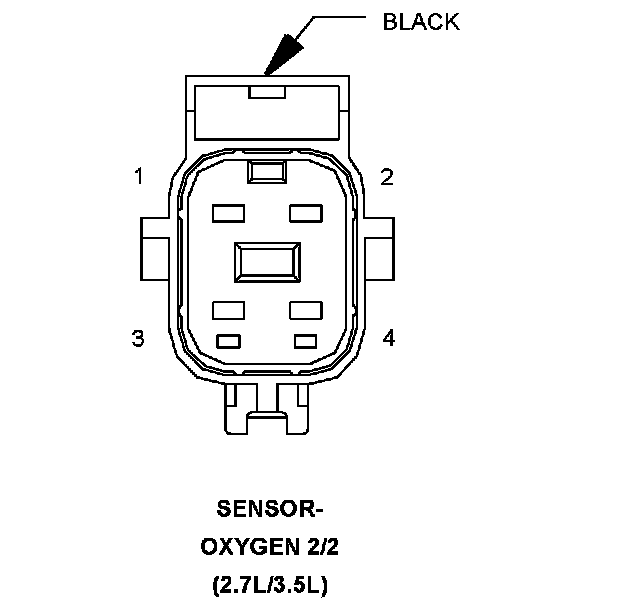

Fig. 17:
