Drive Belt: Description and Operation

DESCRIPTION





The accessory drive belt for all engines is a Poly-V type belt.

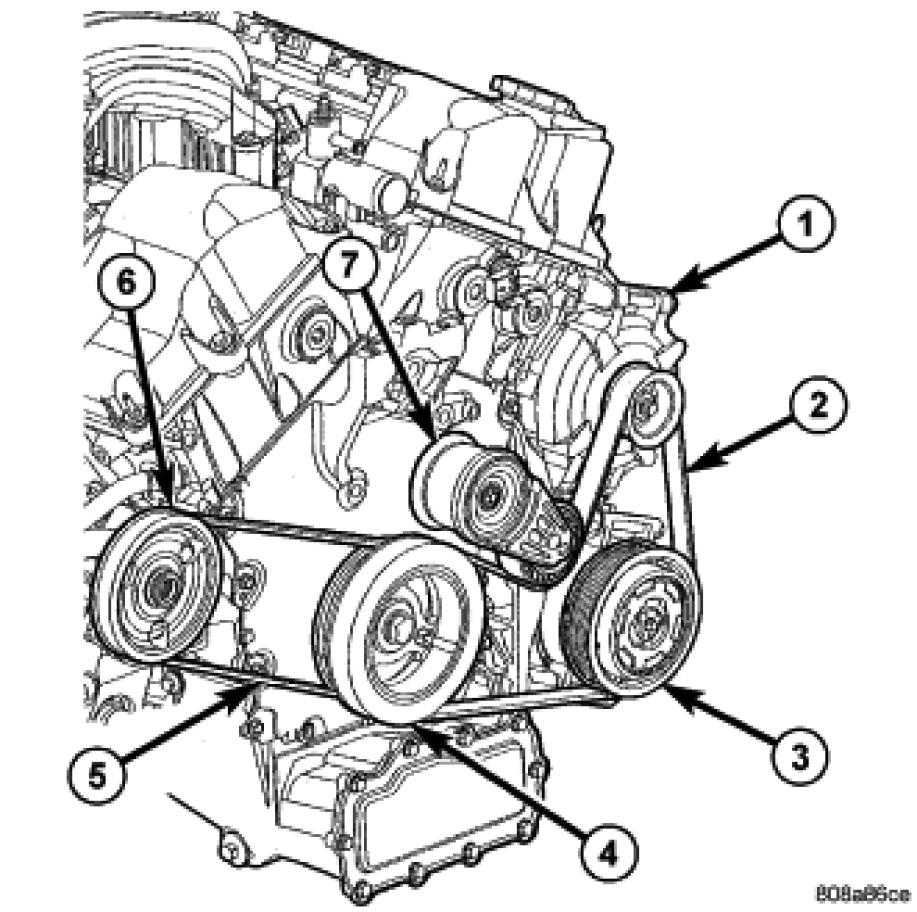

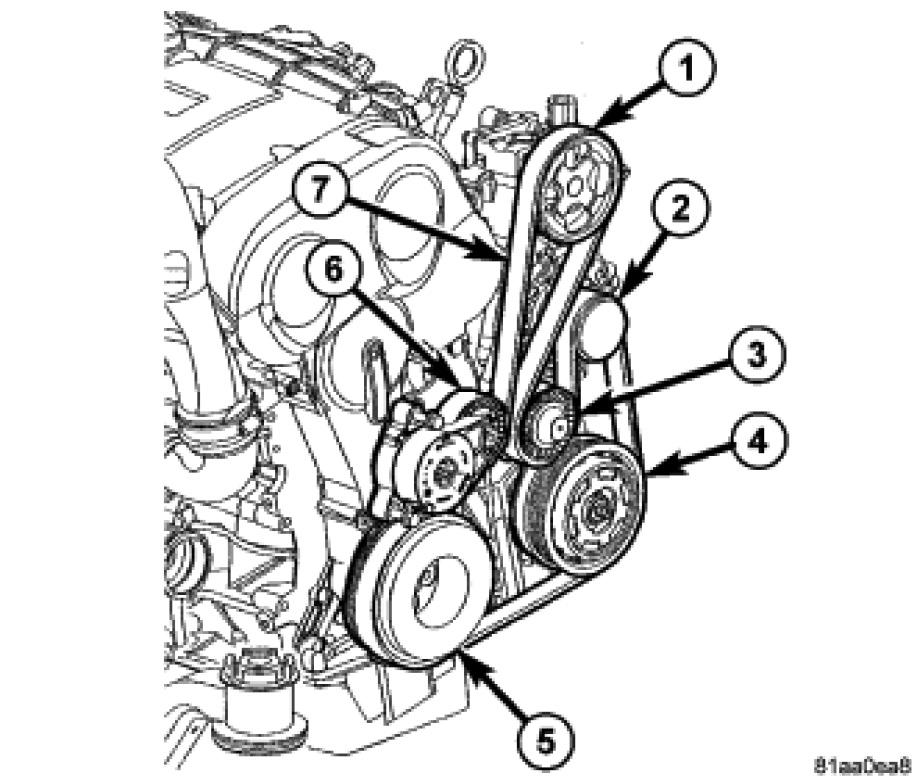

The accessory drive belt for the 2.0/2.4L, 3.5L gas engines and 2.0L Diesel engines drive the generator, A/C compressor, and power steering pump.






On the 2.7L engine, the accessory drive belt drives the generator and A/C compressor. The power steering pump is driven by a separate stretch-to-fit drive belt.

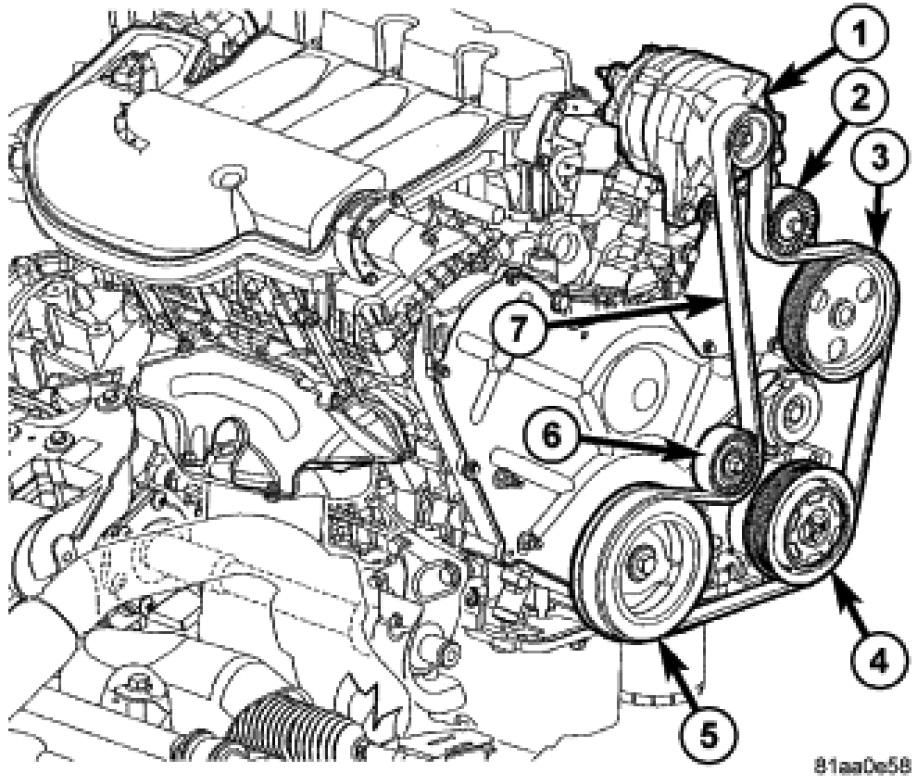

On the 3.5L engine, the accessory drive belt drives the power steering pump, the generator and the A/C compressor.


Accessory drive belt tension for all engines is maintained by a non-adjustable automatic drive belt tensioner.
