Lamp-Vanity-Left

Component ID: 171
Component : LAMP-VANITY-LEFT

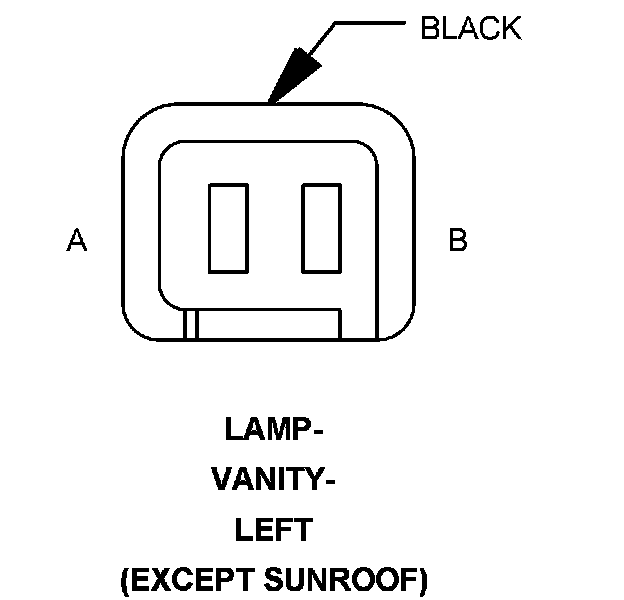

Connector:
Name : LAMP-VANITY-LEFT
Color : BLACK
# of pins : 2
Qualifier : (EXCEPT SUNROOF)




A FUSED B(+) (I.O.D.) A418 20RD/LG
B UGDO ENABLE CONTROL CIRCUIT G38 20GY

Component Location - 49

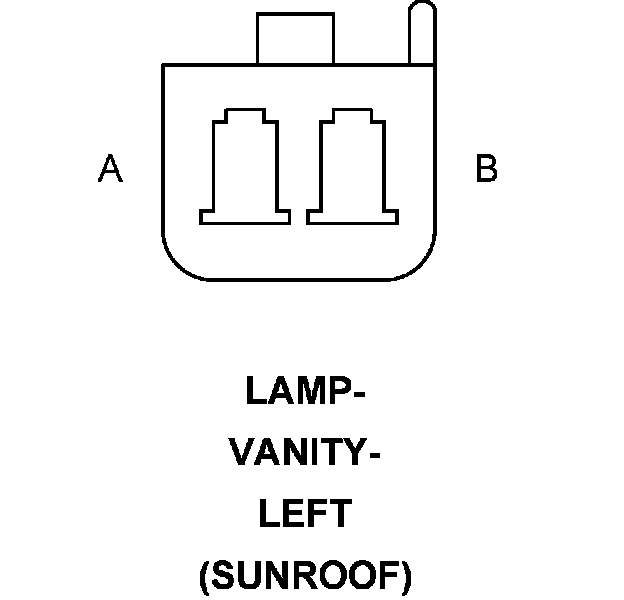

Connector:
Name : LAMP-VANITY-LEFT
Color :
# of pins : 2
Qualifier : (SUNROOF)




A FUSED B(+) (I.O.D.) A418 20RD/LG
B UGDO ENABLE CONTROL CIRCUIT G38 20GY

Component Location - 49
