Removal

LAMP UNIT

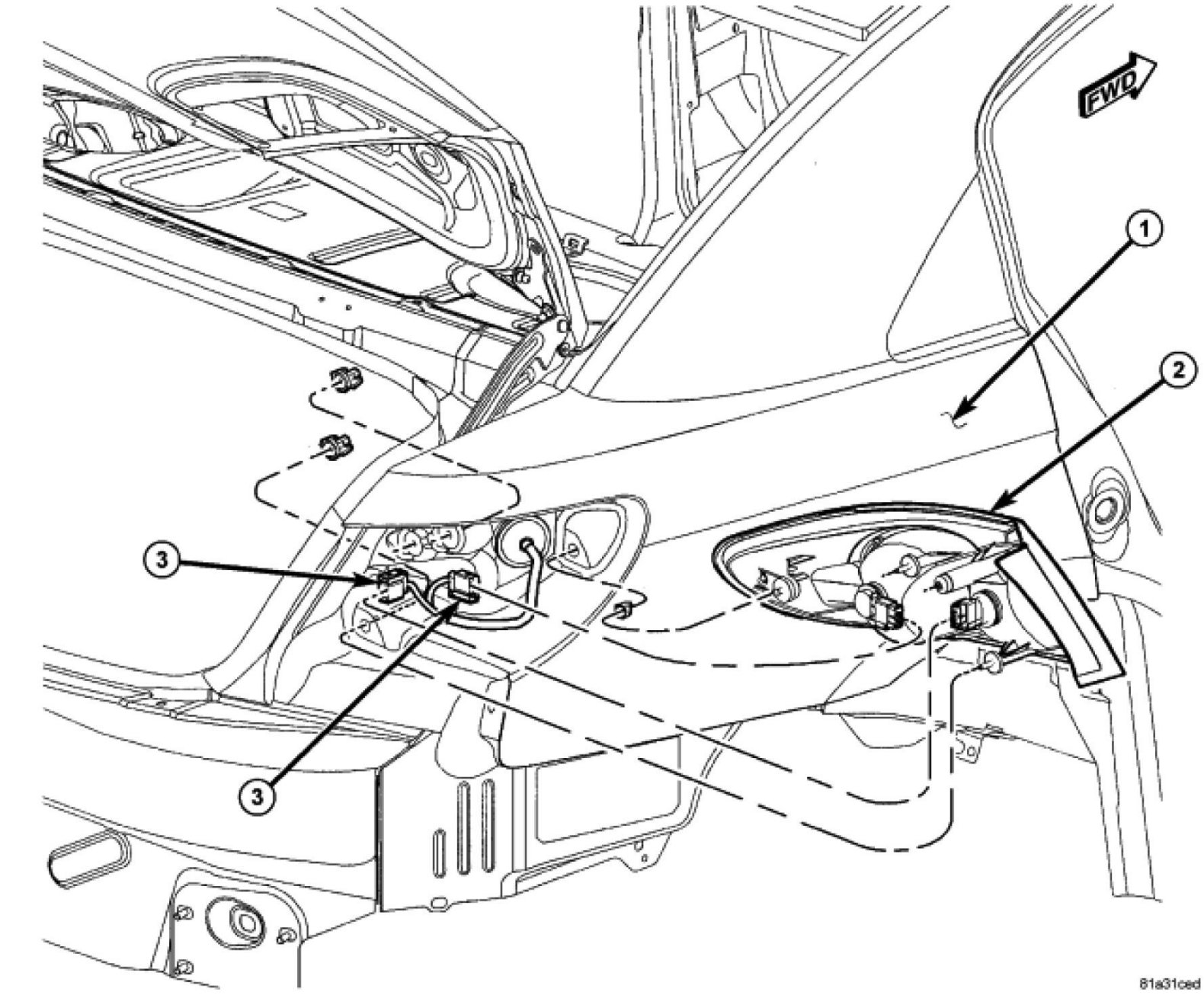

1. Disconnect and isolate battery negative cable.

2. Open decklid and pull back trunk carpeting.

3. Remove three wing-nuts attaching tail lamp (2).

4. Remove lamp (2) from opening in quarter panel (3).

5. Pull tail lamp (2) rearward, unsnapping it from the clips.

6. Disconnect wire connector (3) from back of tail lamp.

7. Remove tail lamp (2) from vehicle
