Lamp-Tail Turn-Left

Component ID: 167
Component : LAMP-TAIL TURN-LEFT

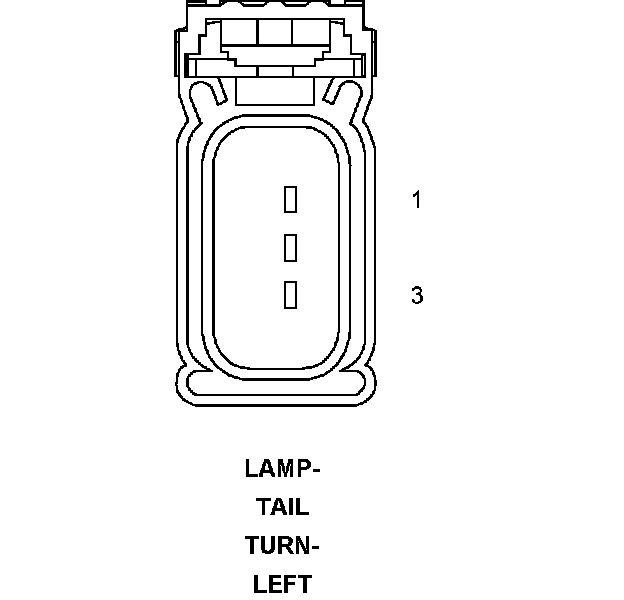

Connector:
Name : LAMP-TAIL TURN-LEFT
Color :
# of pins : 3

Pin Description Circuit
1 LEFT REAR TURN SIGNAL CONTROL L63 20WT/DG
2 - -
3 GROUND Z916 20BK

Component Location - 67
