Sebring Sedan L4-2.4L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Map Light
>>
Service and Repair
>>
Installation
Installation
INSTALLATION
1.
Install wire harness connector.
2.
If replacing bulb, install bulb in socket and twist in socket.
3.

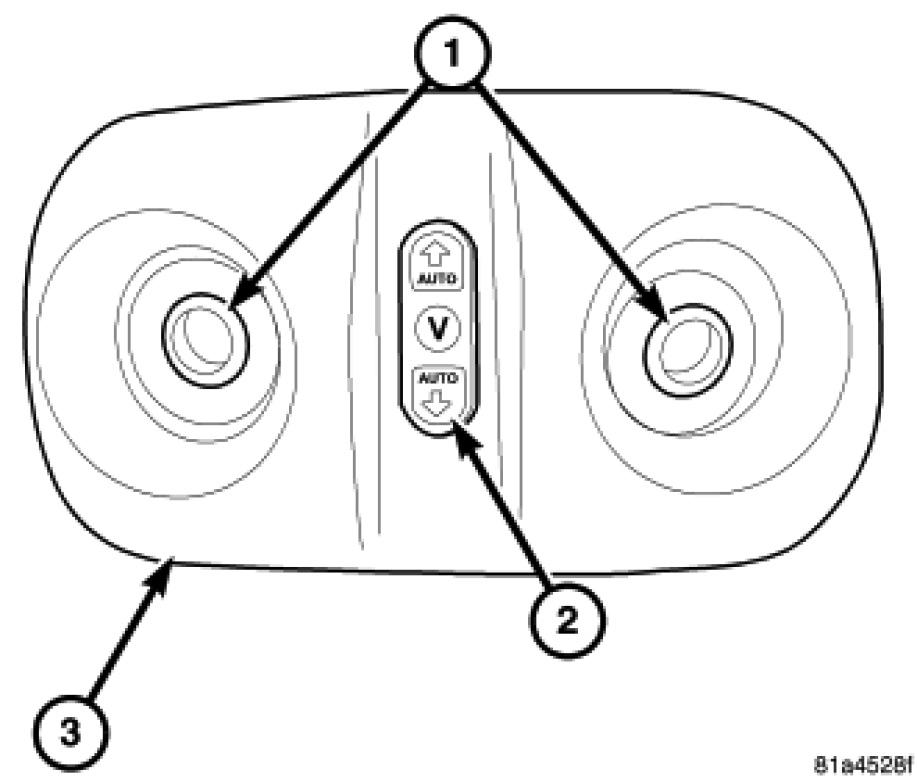

Install reading lamp (3) to headliner.
4.
Connect battery negative cable.
