Horn 2

Component ID: 133
Component : HORN 2

Connector:
Name : HORN 2 C1
Color : BLACK
# of pins : 1




Pin Description Circuit
1 HORN CONTROL OUTPUT X22 18GY/LB

Component Location - 2

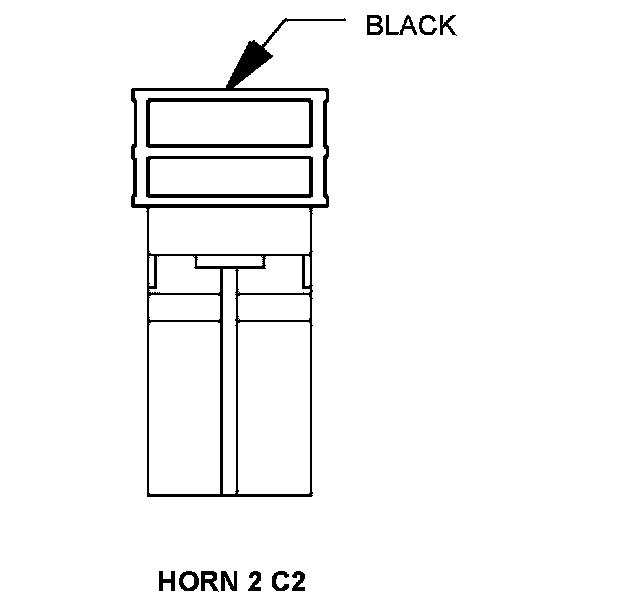

Connector:
Name : HORN 2 C2
Color : BLACK
# of pins : 1




Pin Description Circuit
1 GROUND Z920 18BK

Component Location - 2
