Lamp-Low Beam-Left

Component ID: 153

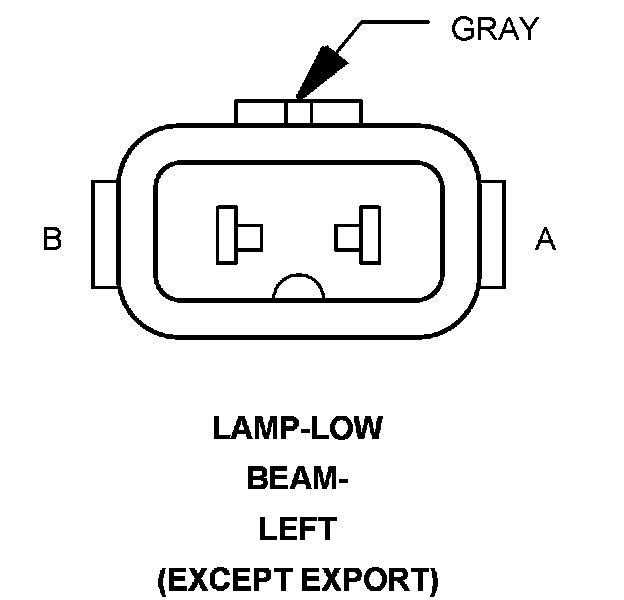

Component : LAMP-LOW BEAM-LEFT

Connector:
Name : LAMP-LOW BEAM-LEFT
Color : GRAY
# of pins : 2
Qualifier : (EXCEPT EXPORT)




A LEFT LOW BEAM OUTPUT L43 20WT/DB
B GROUND Z901 20BK

Component Location - 4






Connector:
Name : LAMP-LOW BEAM-LEFT
Color :
# of pins : 2
Qualifier : (EXPORT)




A LEFT LOW BEAM OUTPUT L43 20WT/DB
B GROUND Z901 20BK

Component Location - 4
