Lamp-High Beam-Right

Component ID: 149
Component : LAMP-HIGH BEAM-RIGHT

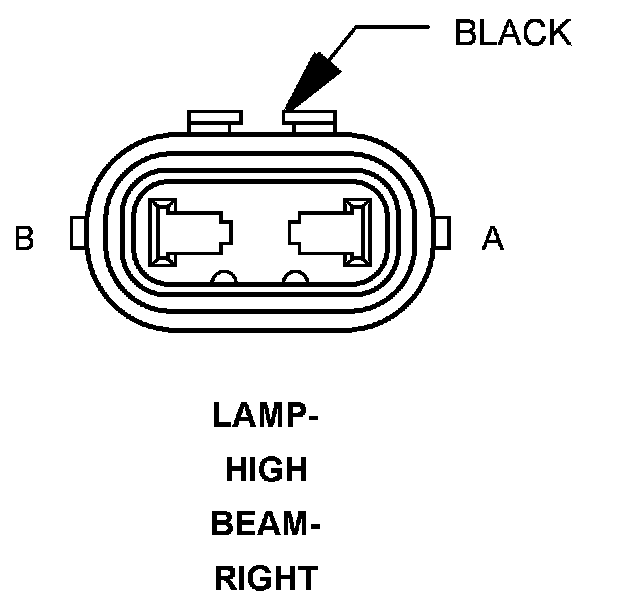

Connector:
Name : LAMP-HIGH BEAM-RIGHT
Color : BLACK
# of pins : 2




A RIGHT HIGH BEAM OUTPUT L34 20WT/LB
B GROUND Z920 20BK

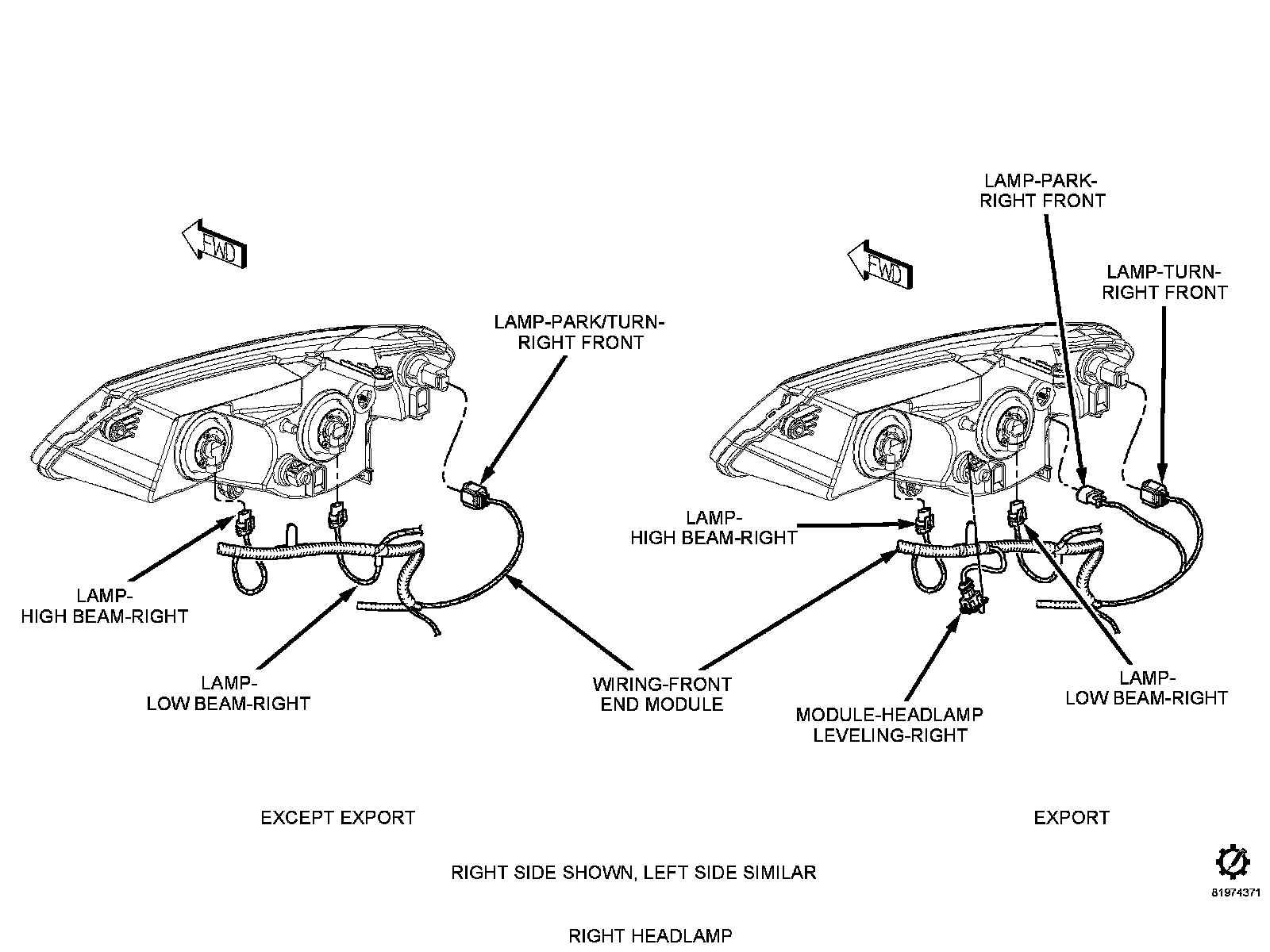

Component Location - 1




Component Location - 5
