Center Mounted Brake Lamp: Diagrams

Component ID: 150
Component : LAMP-HIGH MOUNTED STOP

Connector:

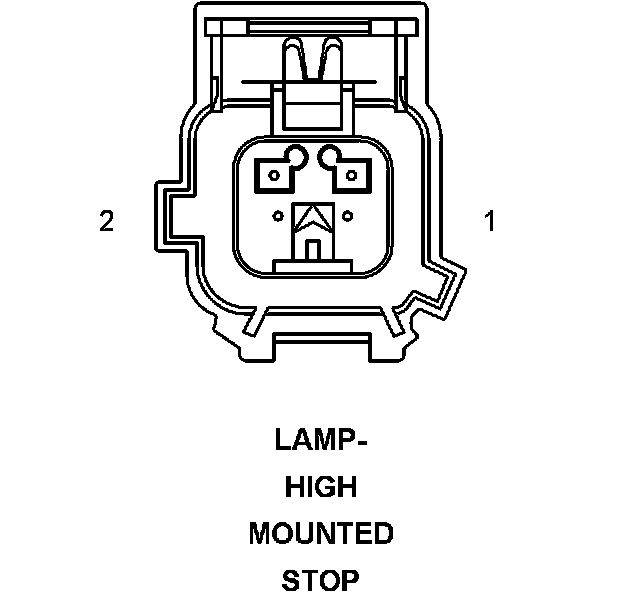

Name : LAMP-HIGH MOUNTED STOP
Color :
# of pins : 2




Pin Description Circuit
1 GROUND Z916 20BK
2 STOP LAMP SWITCH OUTPUT L53 20DG/WT

Component Location - 71
