Lamp-Backup-Left

Component ID: 140
Component : LAMP-BACKUP-LEFT

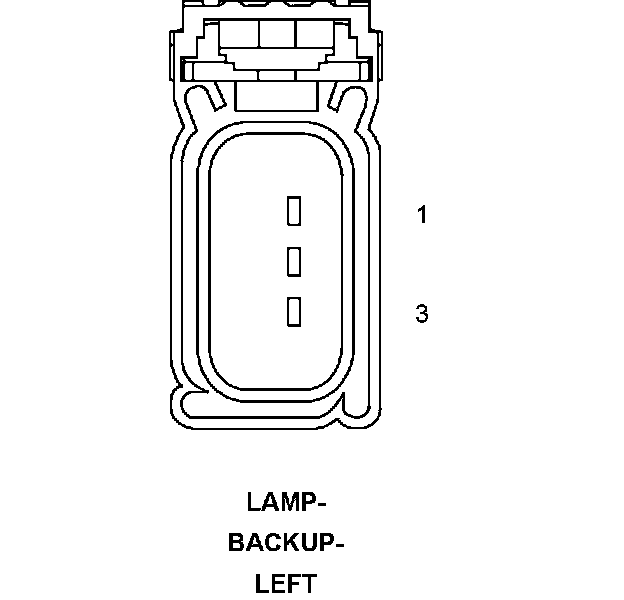

Connector:
Name : LAMP-BACKUP-LEFT
Color :
# of pins : 3




Pin Description Circuit
1 BACKUP LAMP SWITCH OUTPUT L1 20WT/LG
2 - -
3 GROUND Z916 20BK

Component Location - 67

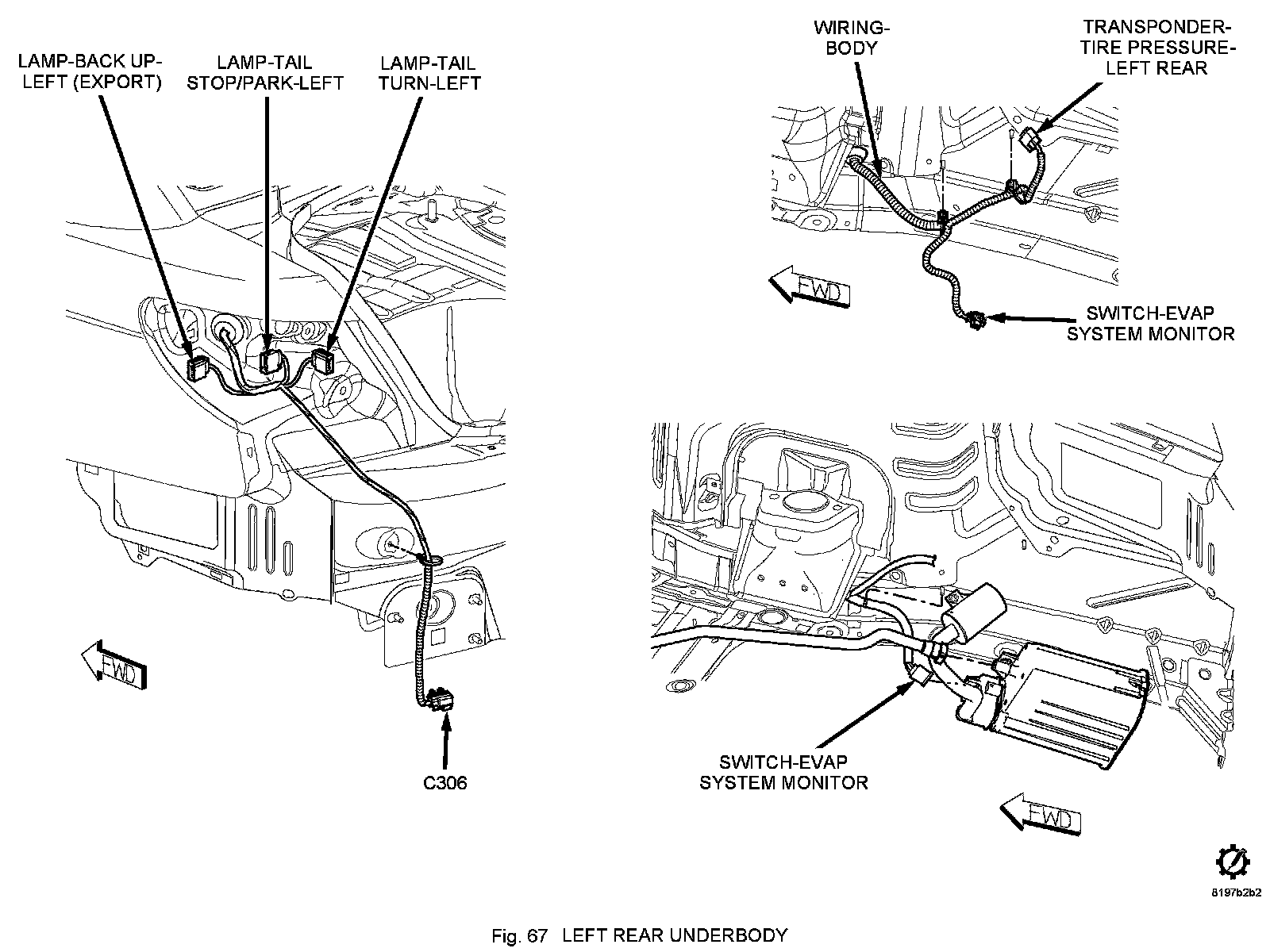

Fig. 67:

Component Location - 71
