Instrument Cluster

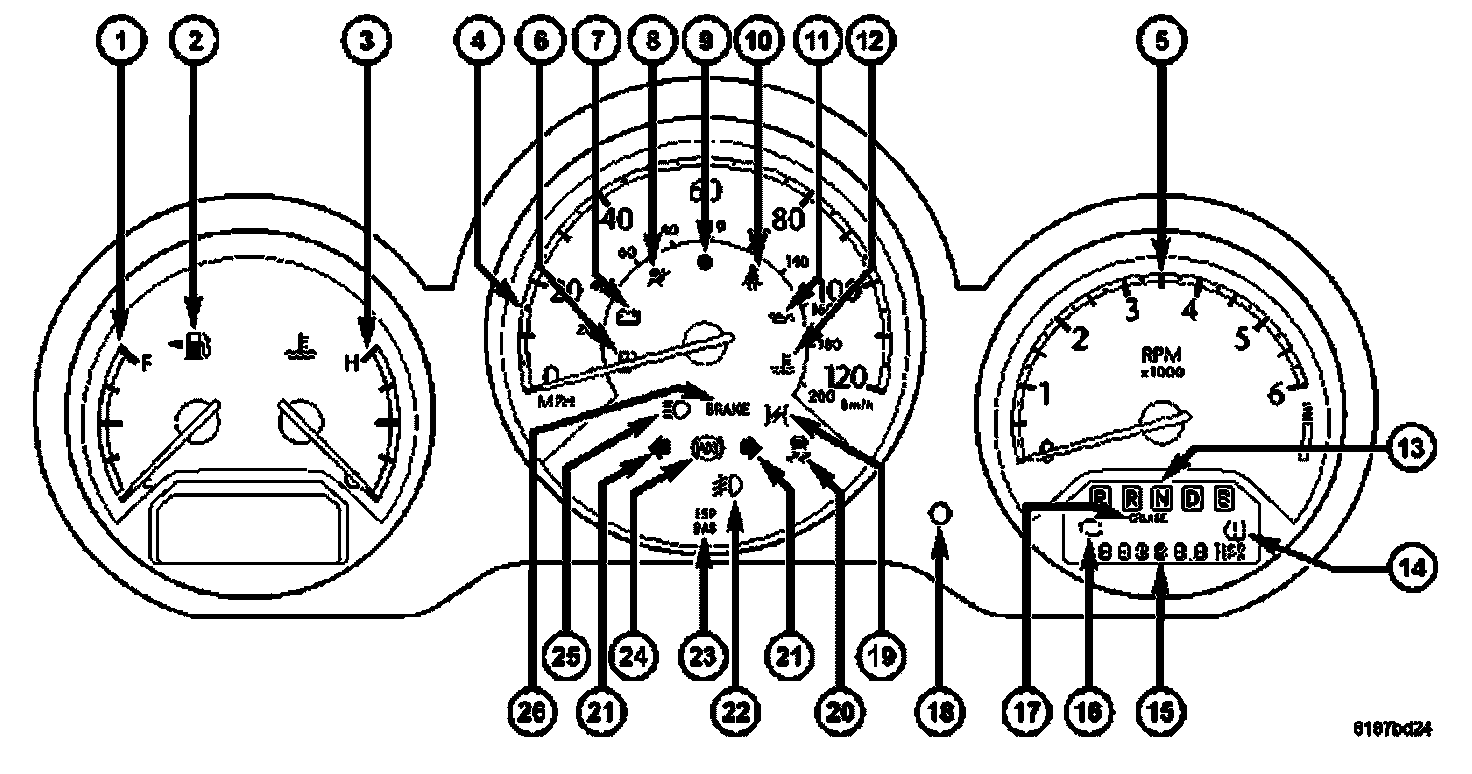

Base Instrument Cluster:

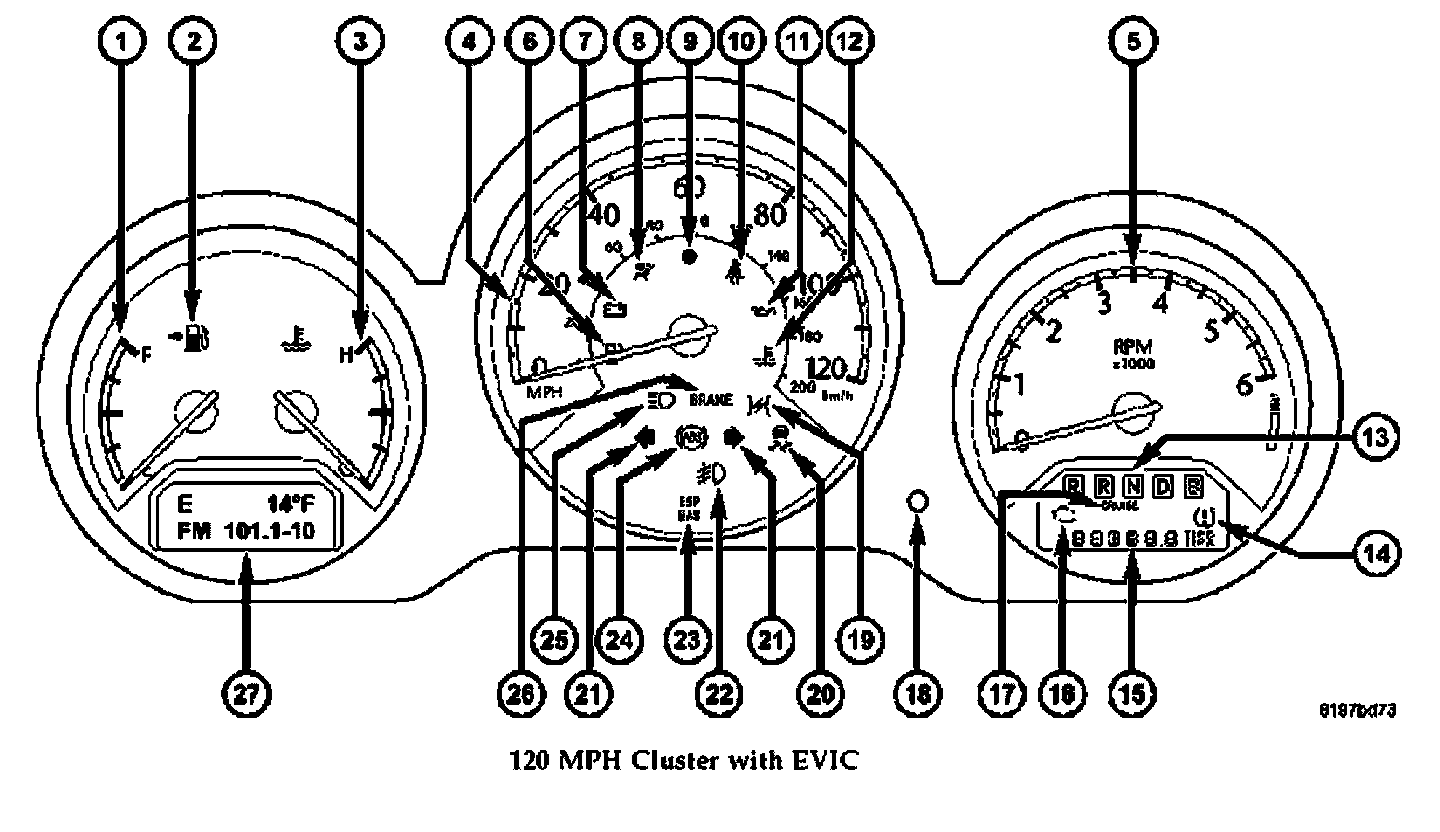

Premium Instrument Cluster:

1. Fuel Gauge
2. Fuel Door Reminder
3. Temperature Gauge
4. Speedometer
5. Tachometer
6. Low Fuel Light
7. Charging System Light
8. Airbag Light
9. Theft Alarm Light - If Equipped
10. Seat Belt Reminder Light
11. Oil Pressure Light
12. Engine Temperature Warning Light
13. Transmission Range Indicator
14. Tire Pressure Monitor Light
15. Odometer/Trip Odometer
16. Malfunction Indicator Light
17. Cruise Indicator - If Equipped
18. Odometer/Trip Odometer Reset Knob
19. Electronic Throttle Control Indicator Light
20. Electronic Stability Program (ESP) Indicator Light/Traction Control System (TCS) Indicator Light - If Equipped
21. Turn Signal Indicators
22. Front Fog Light Indicator - If Equipped
23. Electronic Stability Program (ESP) Indicator Light
24. Anti-Lock Warning Light (ABS) - If Equipped
25. High Beam Indicator
26. Brake System Warning Light
27. Electronic Vehicle Information Center (EVIC) Display - Premium Cluster Only
