Removal

REMOVAL





1. Disconnect and isolate the battery negative cable.

2. Remove the instrument panel center bezel.

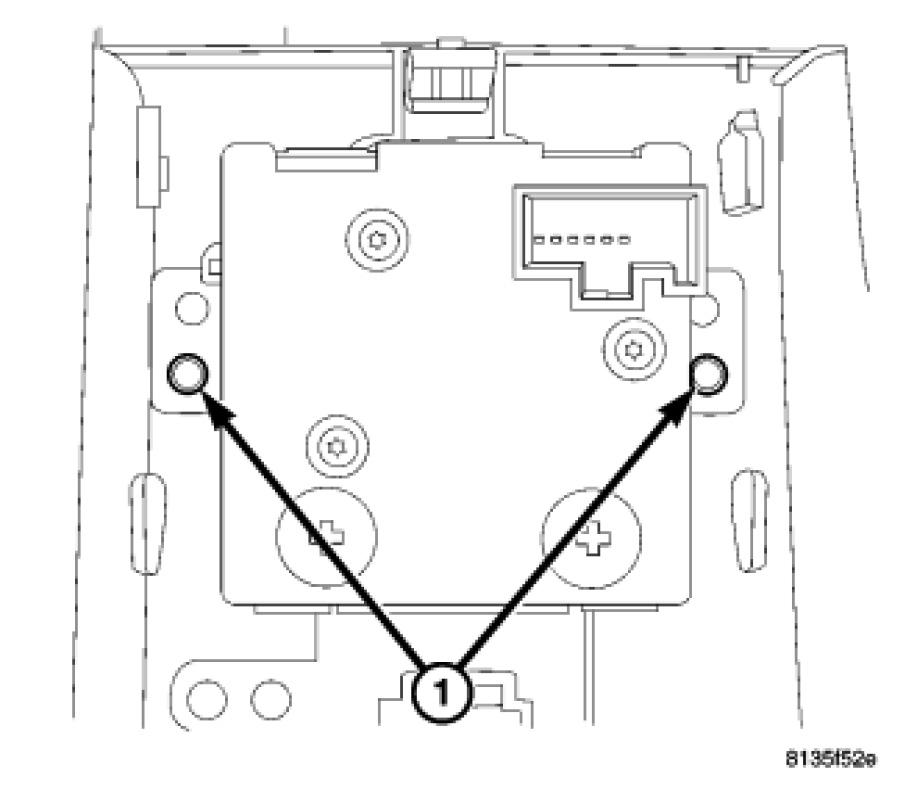

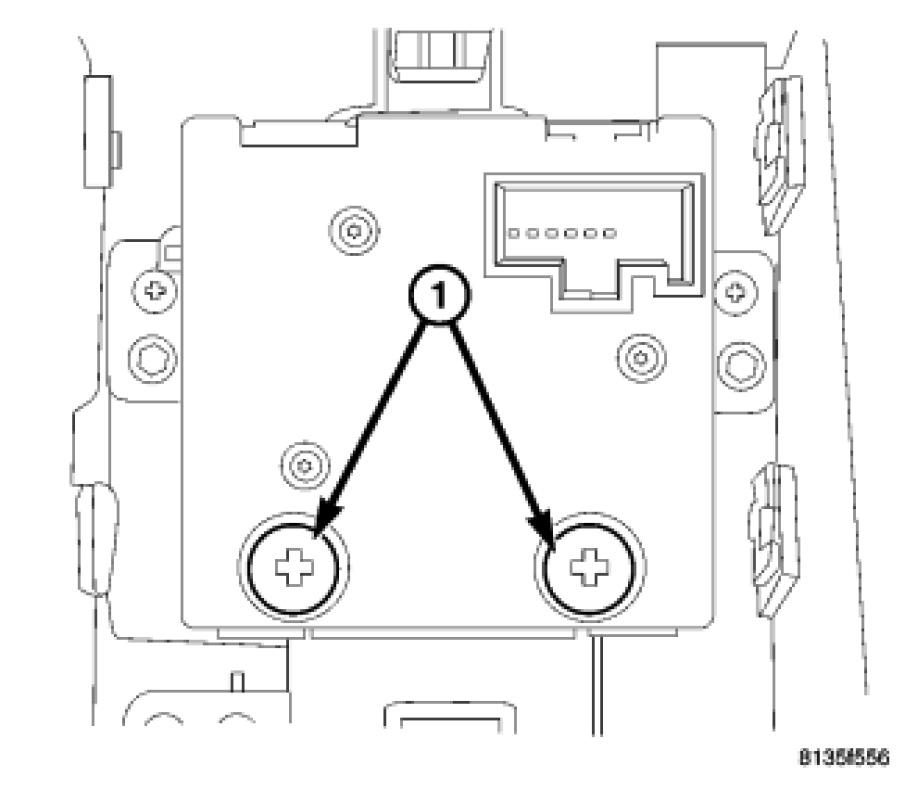

3. Remove the two retaining screws (1) holding the clock to the rear of the I/P Center Bezel.





4. To replace the clock illumination lamps (1), turn sockets (1) counterclockwise to remove lamp and socket (1).
