Compressor Clutch: Locations

Component ID: 382

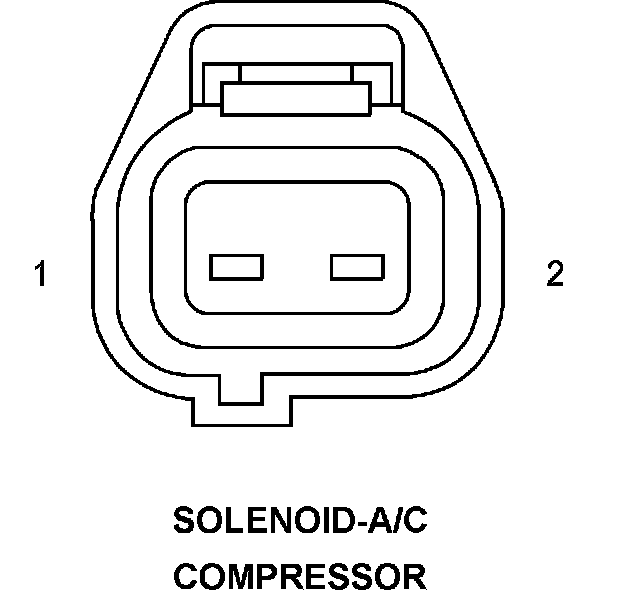

Component : SOLENOID-A/C COMPRESSOR

Connector:
Name : SOLENOID-A/C COMPRESSOR
Color :
# of pins : 2




Pin Description Circuit
1 FUSED ASD/MAIN RELAY OUTPUT F343 20BR/YL
Pin Description Circuit
1 A/C COMPRESSOR CONTROL C27 20LB/WT
2 A/C COMPRESSOR CONTROL C27 20LB/WT
2 GROUND Z902 20BK

Component Location - 22




Component Location - 26




Component Location - 28

Fig. 28:

Component Location - 32

Fig. 32:
