Installation

INSTALLATION

NOTE: LHD Chrysler model shown in illustrations. Dodge and RHD models similar.

RIGHT FRONT FLOOR DUCT





NOTE: Illustration shown with instrument panel removed for clarity.

1. Connect the right floor duct (1) to the right side of the HVAC housing (2). Make sure the duct is fully engaged to the housing.

2. On LHD models, install the glove box bin.

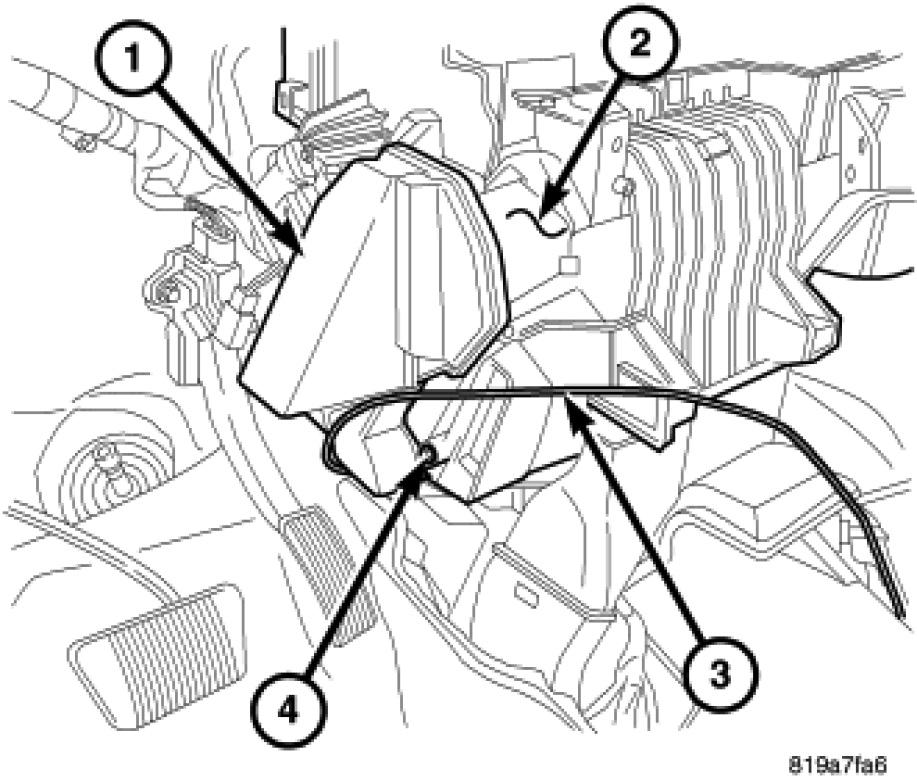

LEFT FRONT FLOOR DUCT





NOTE: Illustration shown with instrument panel removed for clarity.

3. Connect the left floor duct (1) to the left side of the HVAC housing (2). Make sure the duct is fully engaged to the housing.

4. Install the screw (4) that secures the left floor duct to the HVAC housing. Tighten the screw to 2 Nm (17 in. lbs.).

5. On LHD models, connect the shift interlock cable (3) to the left floor duct.

6. On RHD models, install the glove box bin.

REAR FLOOR DISTRIBUTION DUCTS





7. Connect the left rear floor distribution duct (1) and the right rear floor distribution duct (2) as required to the HVAC housing (3). Make sure the ducts are fully engaged to the housing.

8. Install the rear seat floor ducts.

9. Install the instrument panel.

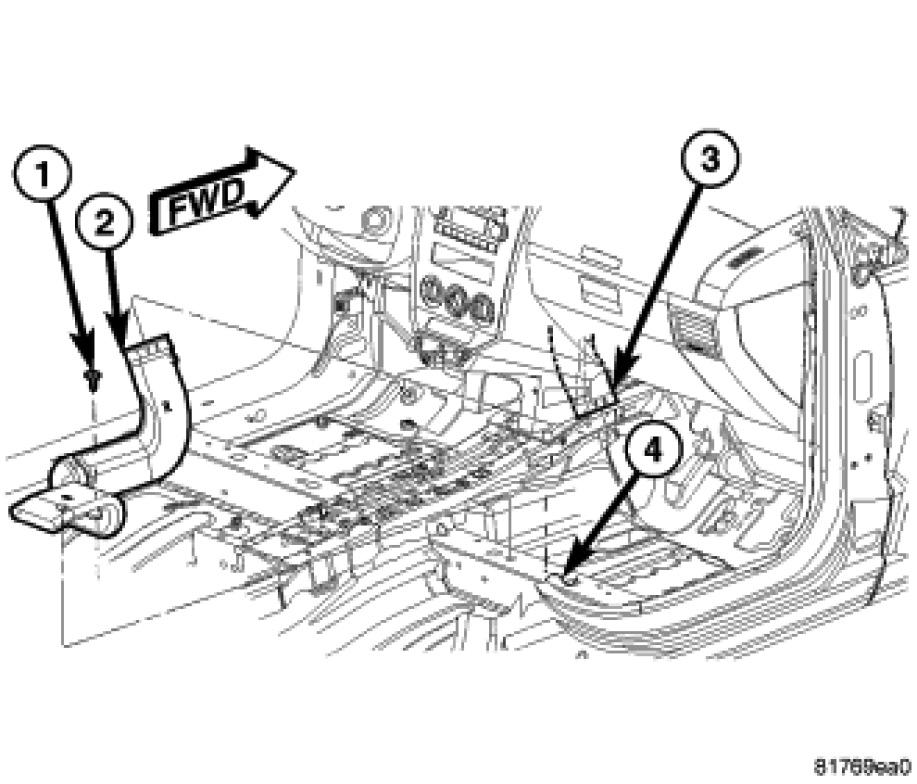

REAR SEAT FLOOR DUCTS





NOTE: Right side rear floor duct shown. Left side duct similar.

10. Connect the rear seat floor duct (2) to the rear floor distribution duct (3). Make sure the ducts are fully engaged to each other.

11. Engage the retainer that secures the rear seat floor duct to the floor support (4) and install the retaining screw (1). Tighten the screw to 2.2 Nm (20 in. lbs.).

12. Reinstall the carpet.

13. Install the front seat to the side of the vehicle being serviced.

14. Install the center floor console.
