Installation

INSTALLATION

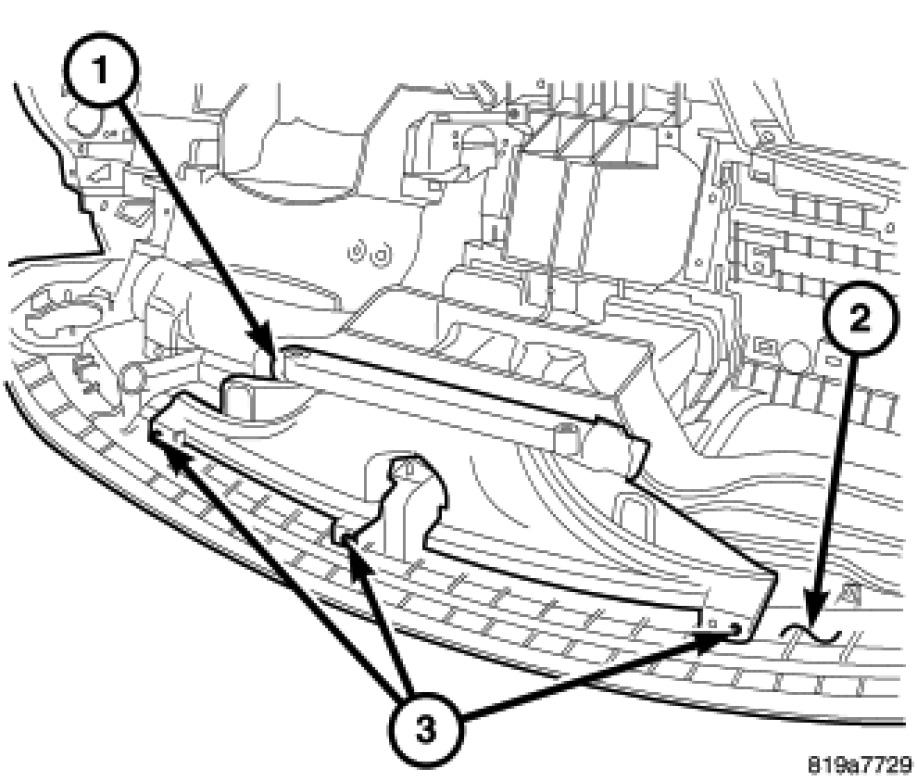

NOTE: LHD Chrysler model shown. Dodge and RHD models similar.

1. Position the defroster duct (1) to the instrument panel top cover (2) and engage the duct to the cover.

2. Install the three screws (3) that secure the defroster duct to the instrument panel top cover. Tighten the screws to 2.2 Nm (20 in. lbs.).

3. Install the demister ducts.

4. Install the instrument panel top pad.

5. Install the outer instrument panel ducts.

6. Install the left and right instrument panel air outlets.

7. Install the instrument panel.
