Removal

INSTRUMENT PANEL

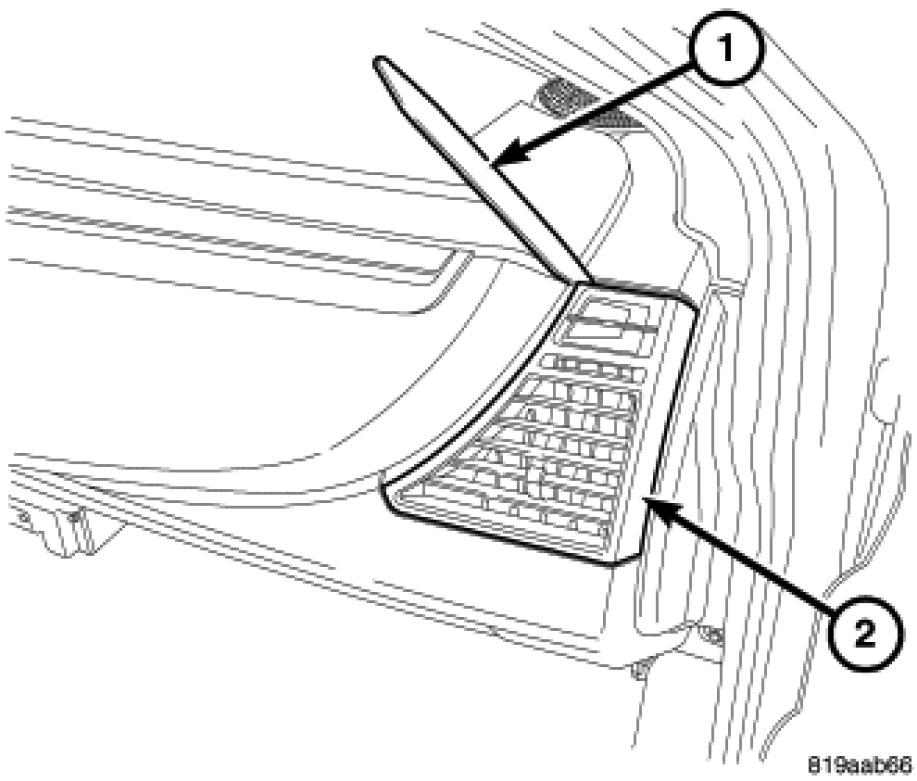

NOTE: Typical air outlet shown.

1. If servicing the outboard air outlets, release the retaining clips that secure the left and right side instrument panel air outlet (2) to the instrument panel using a trim stick or another suitable wide flat-blade tool (1) and remove the air outlet from the instrument panel opening.

2. If servicing the center air outlets, remove the center bezel and remove the air outlet from the back of the bezel.
