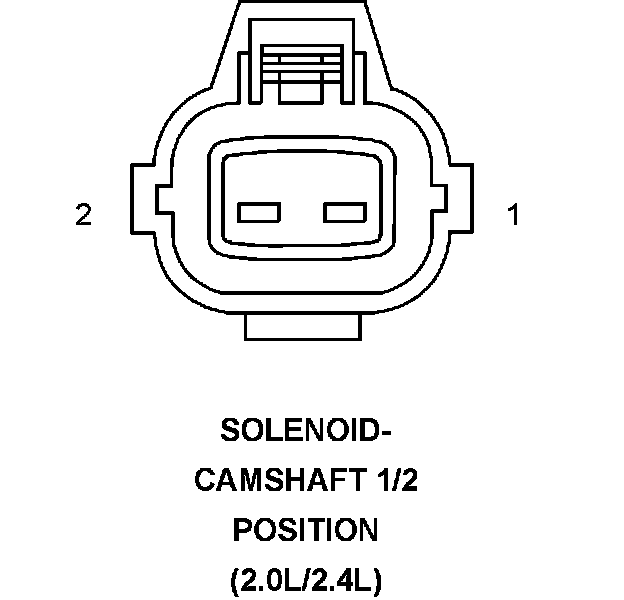

Solenoid-Camshaft 1/2 Position




Component ID: 384
Component : SOLENOID-CAMSHAFT 1/2 POSITION

Connector:
Name : SOLENOID-CAMSHAFT 1/2 POSITION
Color :
# of pins : 2
Qualifier : (2.0L/2.4L)




Pin Description Circuit
1 CMP 1/2 CONTROL K276 20DB/WT
2 FUSED ASD/MAIN RELAY OUTPUT F343 20BR/YL

Component Location - 29
