Removal






REMOVAL

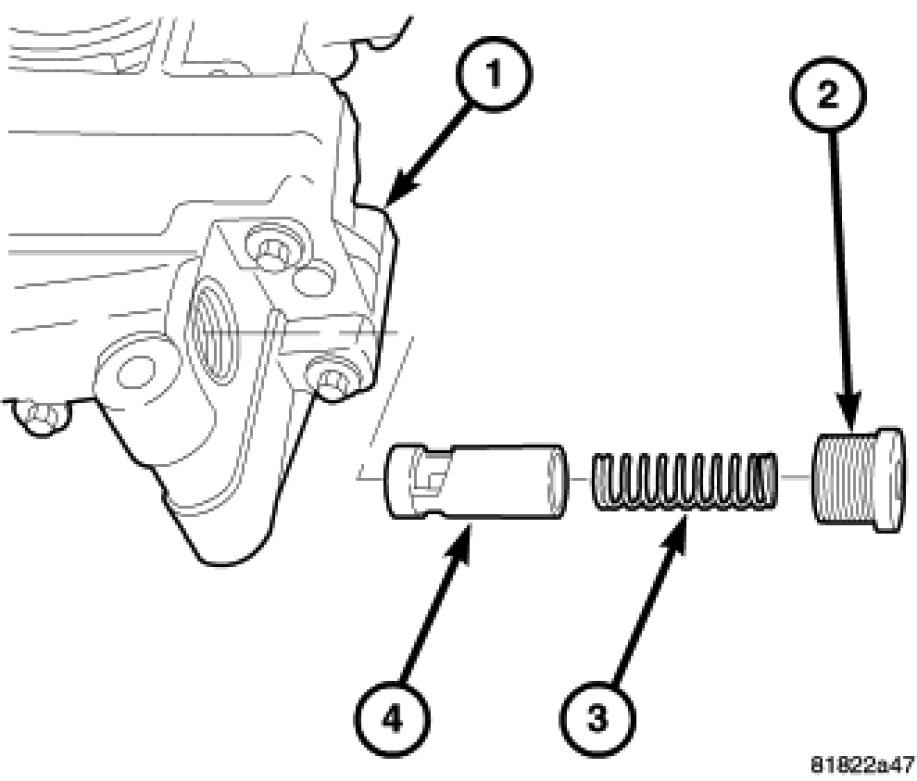

1. Remove oil pan.
2. Remove pressure regulating valve cap (2).
3. Remove pressure regulating valve spring (3) and valve (4).
