Installation

INSTALLATION

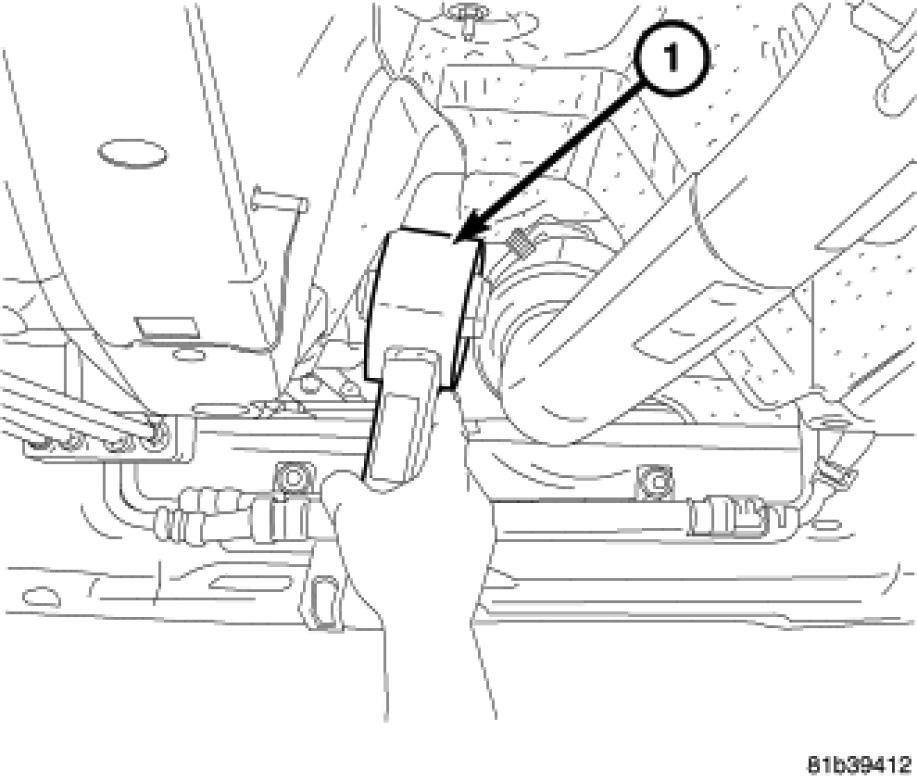

1. Position rear mount (1) in place from the rear of the vehicle.

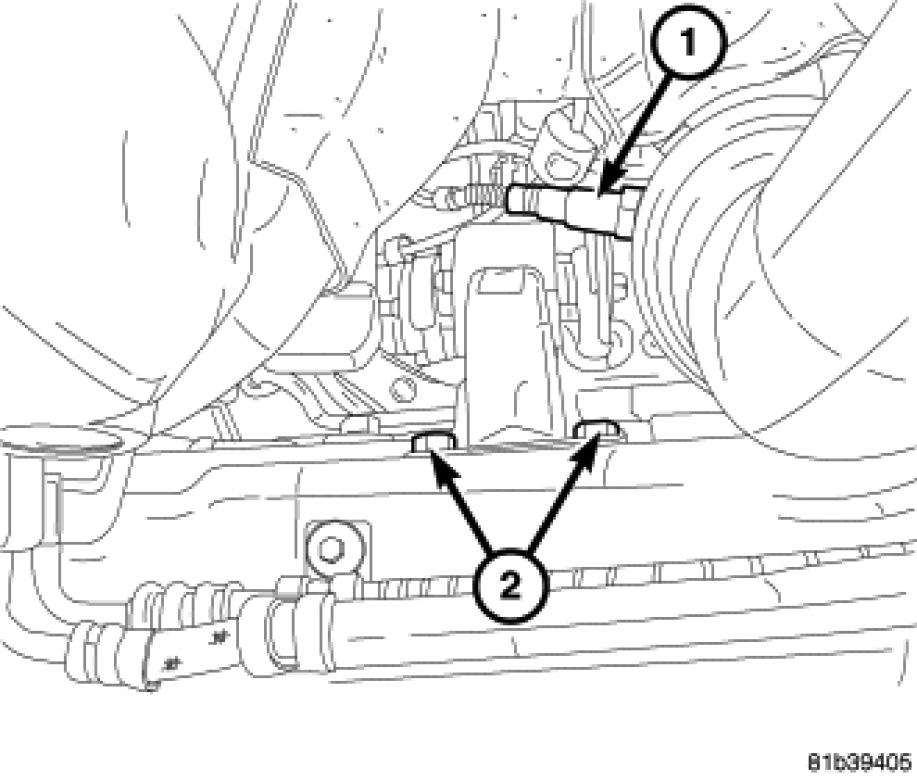

2. Install rear mount retaining bolts (2) and torque to 50 Nm (37 ft. lbs.).
3. Install oxygen sensor (1).

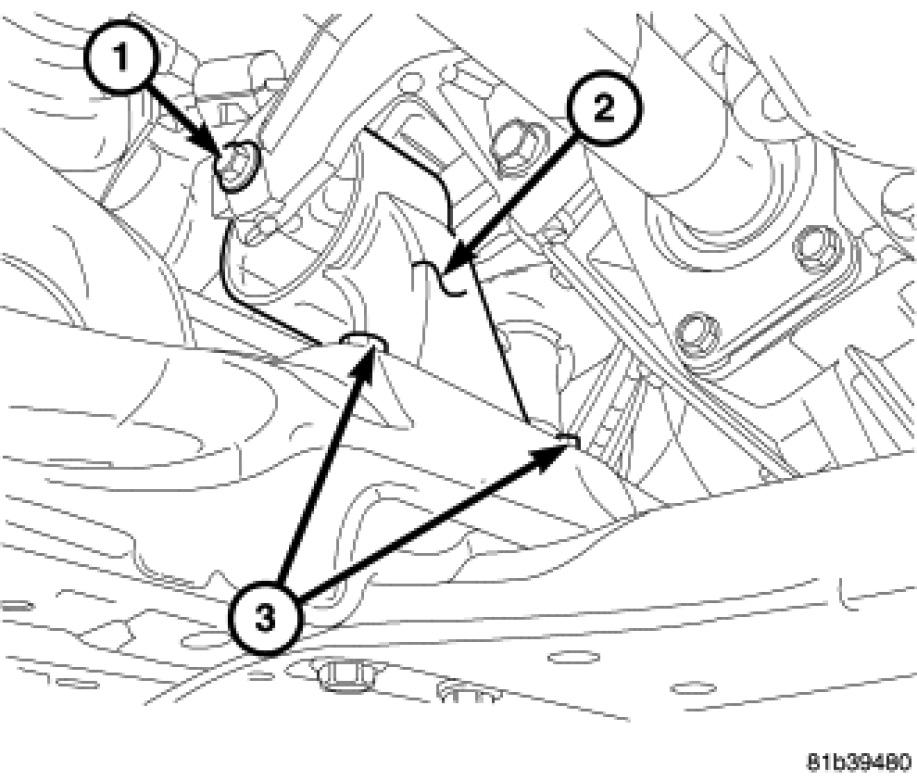

4. Install rear mount retaining bolts (3) and torque to 50 Nm (37 ft. lbs.).
5. Install rear mount through bolt (1) and torque to 75 Nm (55 ft. lbs.).

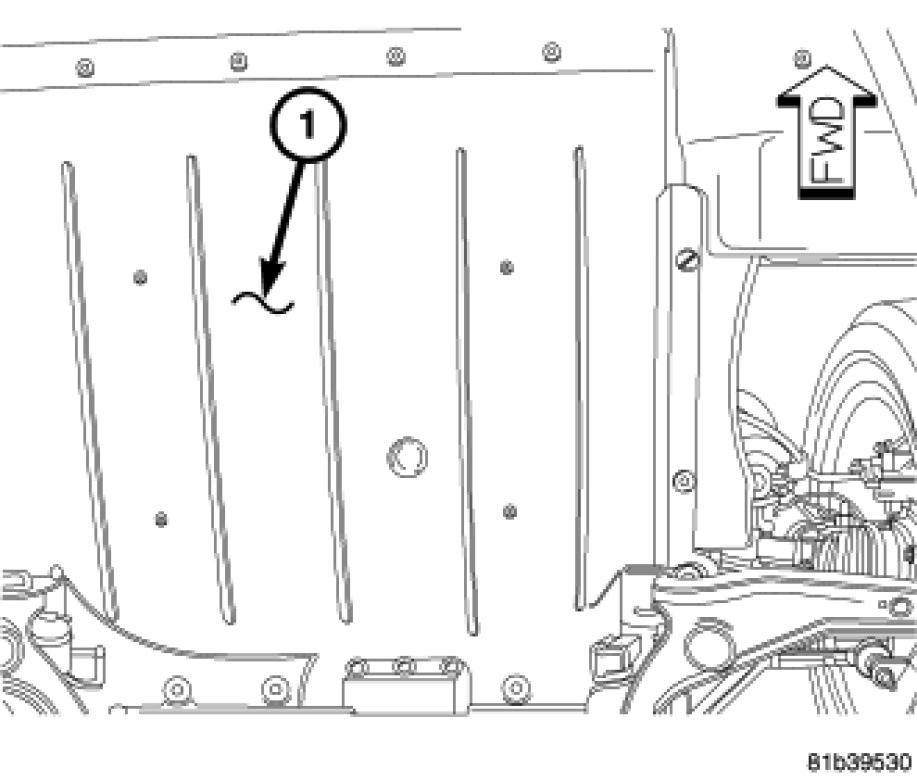

6. install lower silencer (1).
