2.0/2.4L - Primary Thermostat

2.0/2.4L - PRIMARY THERMOSTAT




1. Partially drain cooling system .
2. Remove air filter housing.

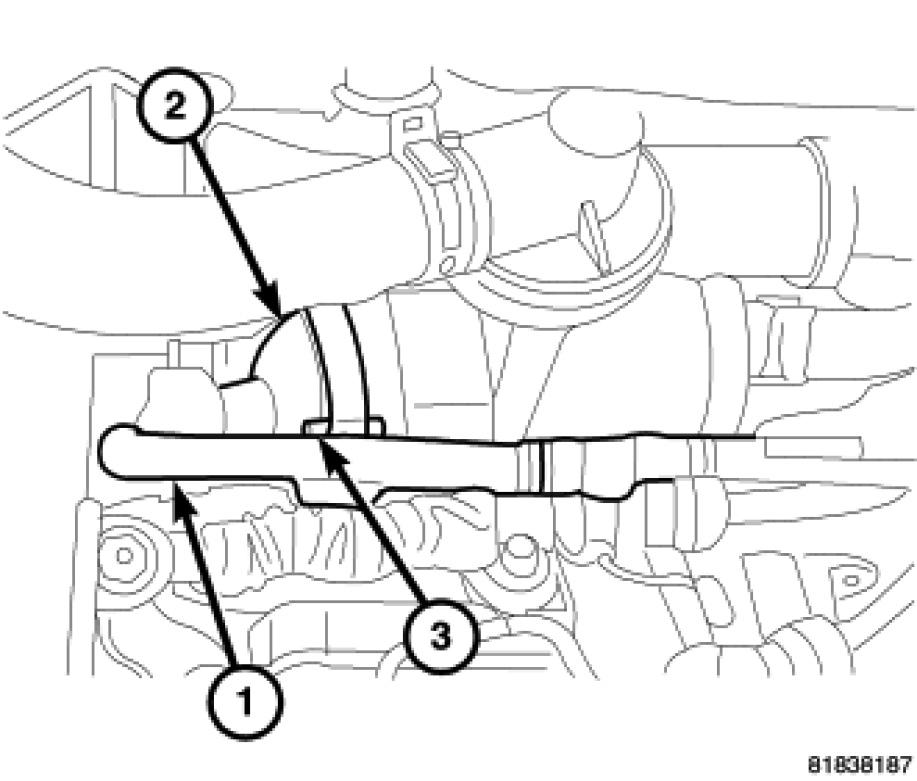

3. Disconnect coolant hose (1) from inlet housing (2).
4. Remove inlet housing bolts (3).
5. Remove thermostat assembly, and clean sealing surfaces.
