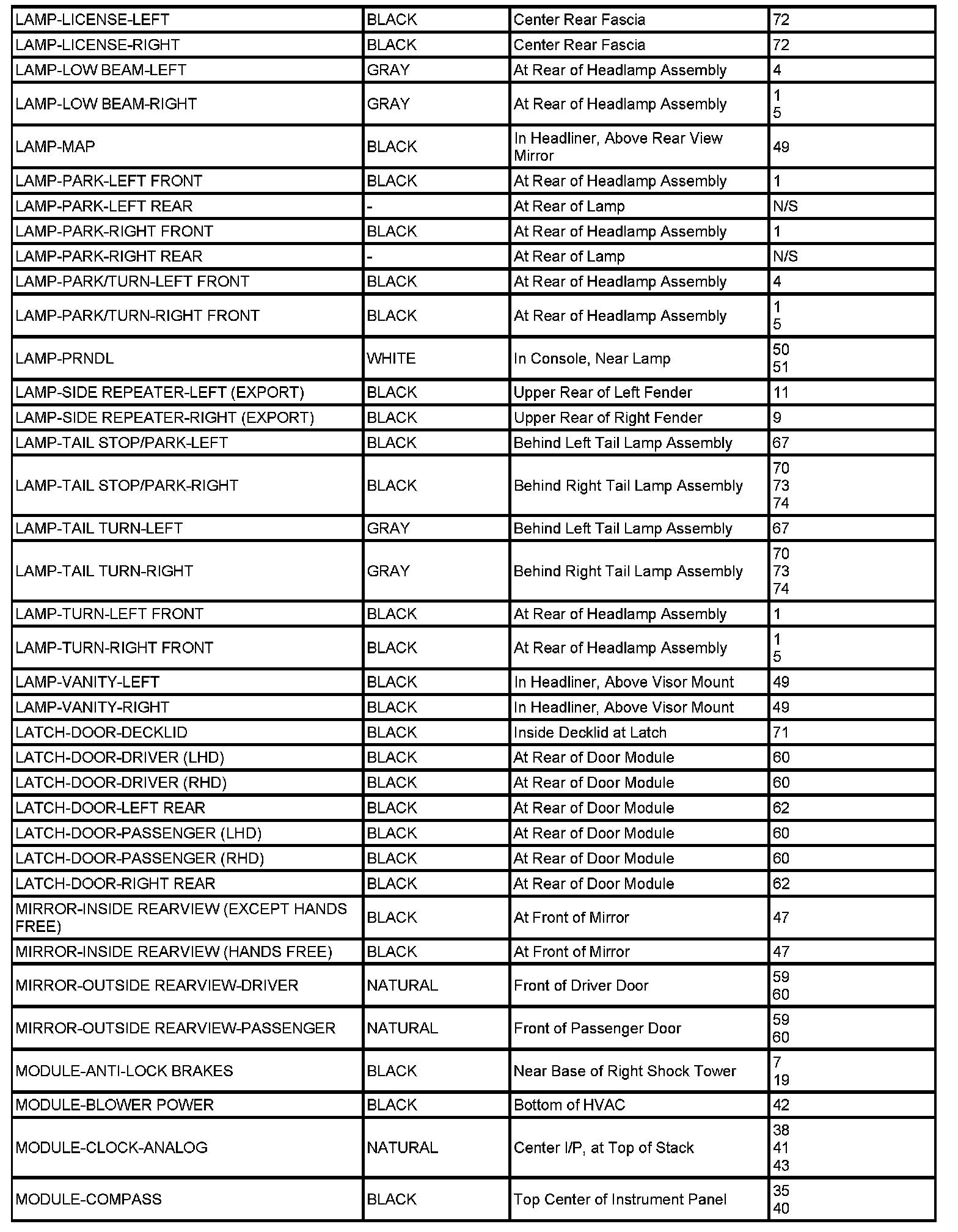

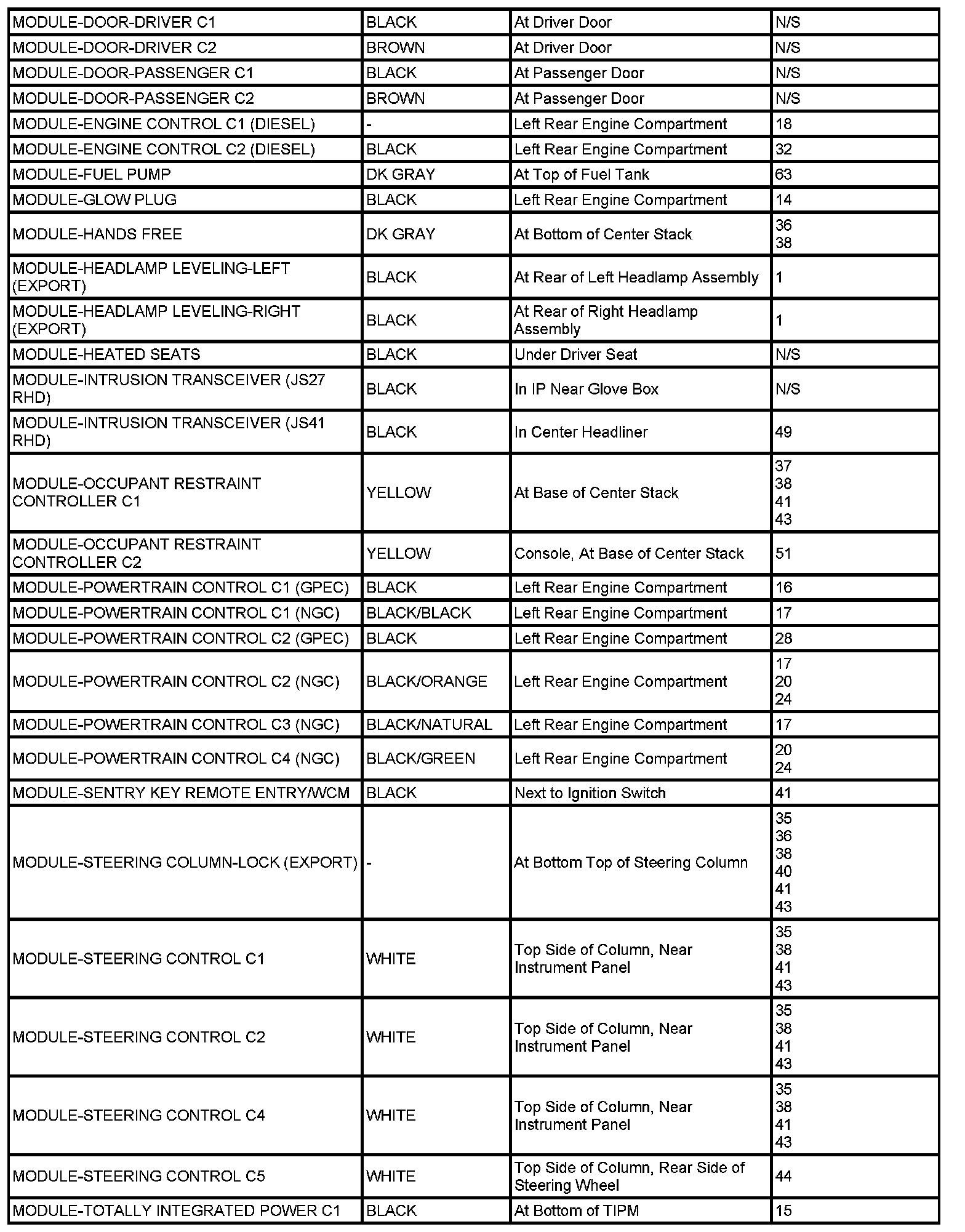

Connector Location Index

If a link on the index chart to a figure is not provided, that means that the connector and/or figure in question does NOT apply to the vehicle model selected.

The abbreviation T/O (Take Out) is used in the location column to indicate a point in which the wiring harness branches out to a component.

The abbreviation N/S means Not Shown in the illustrations.

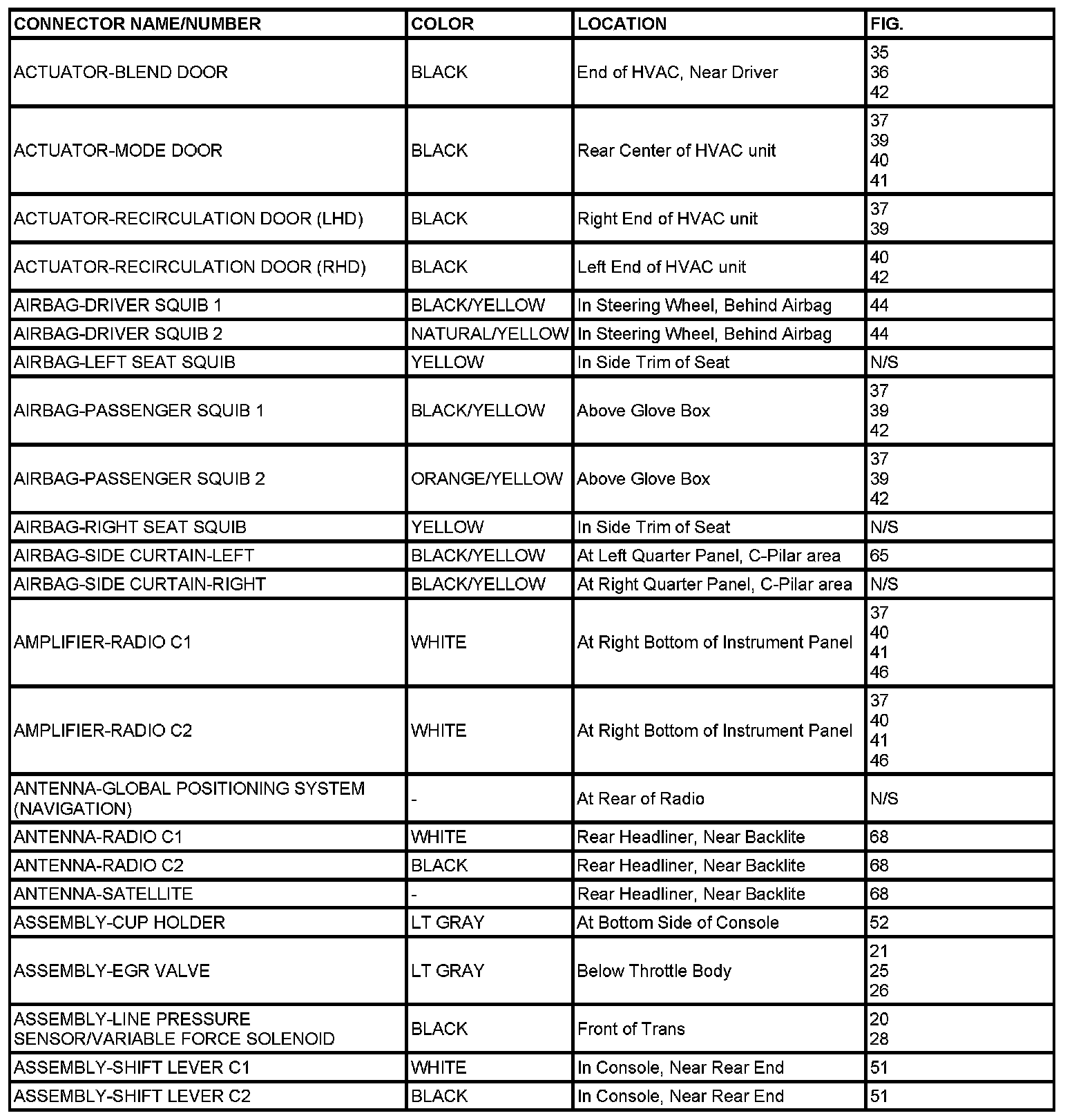

Ac-As:

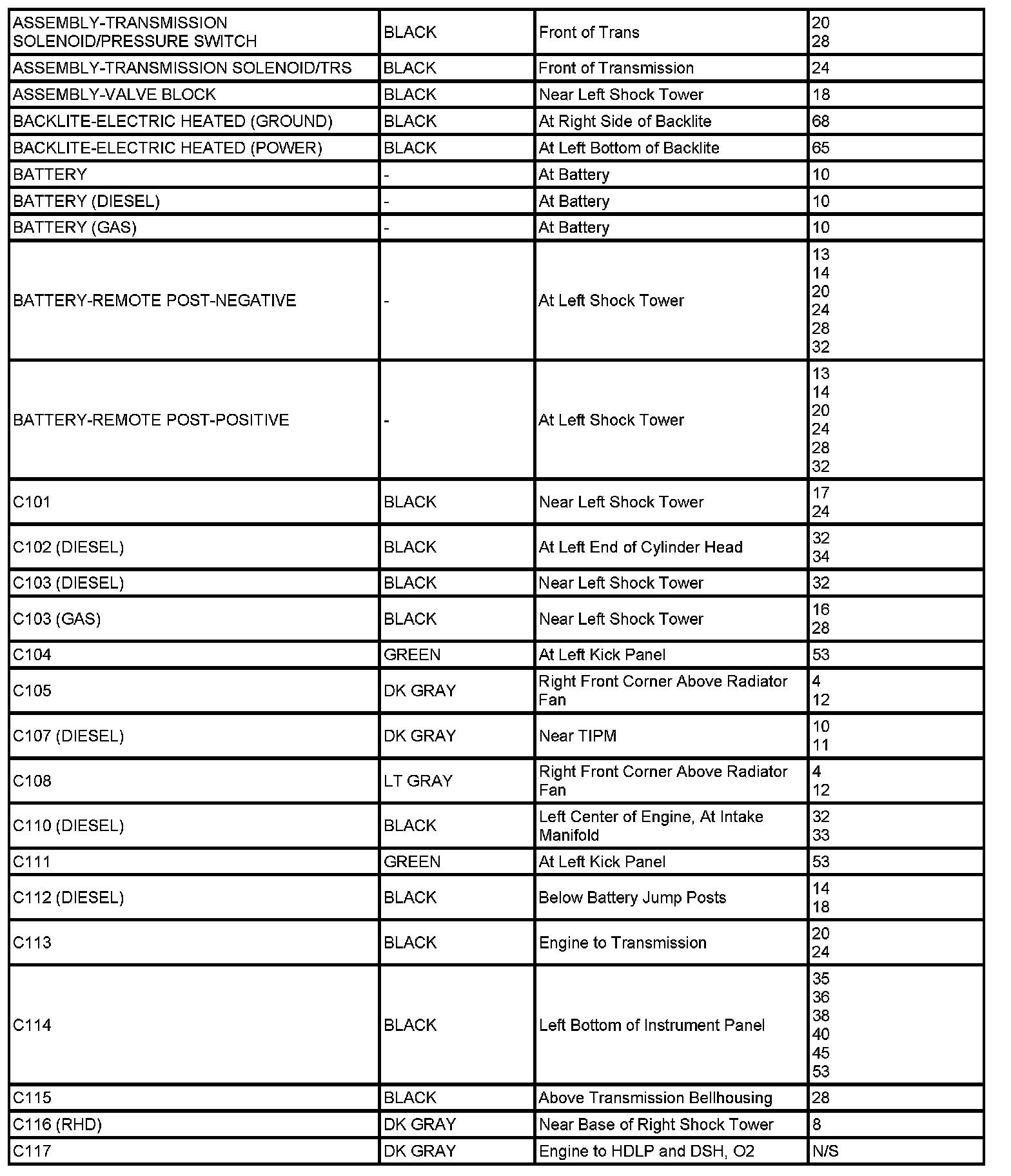

As-C117:

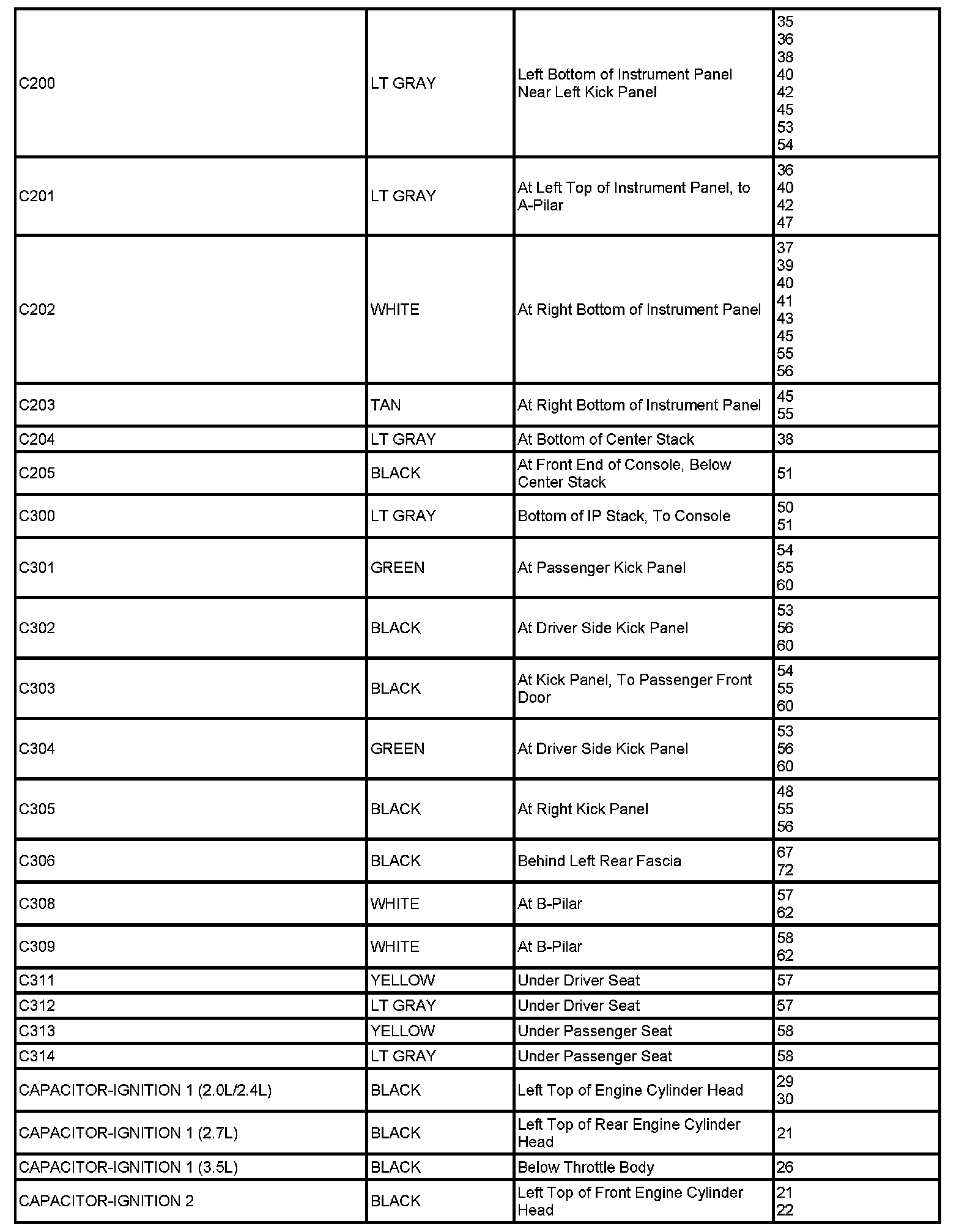

C200-Ca:

Cl-Ge:

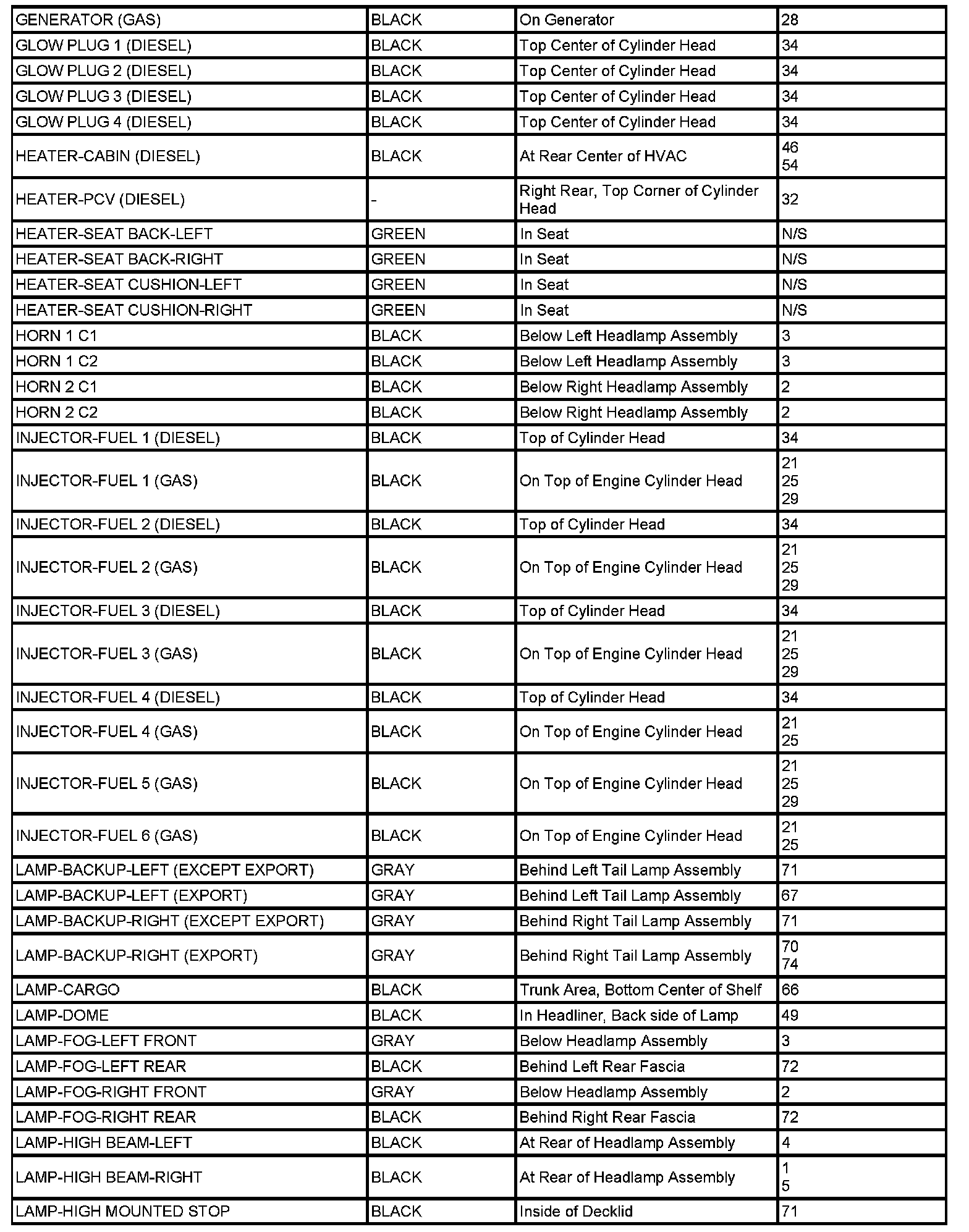

Ge-Le:

La-Mo:

Mo-Mo:

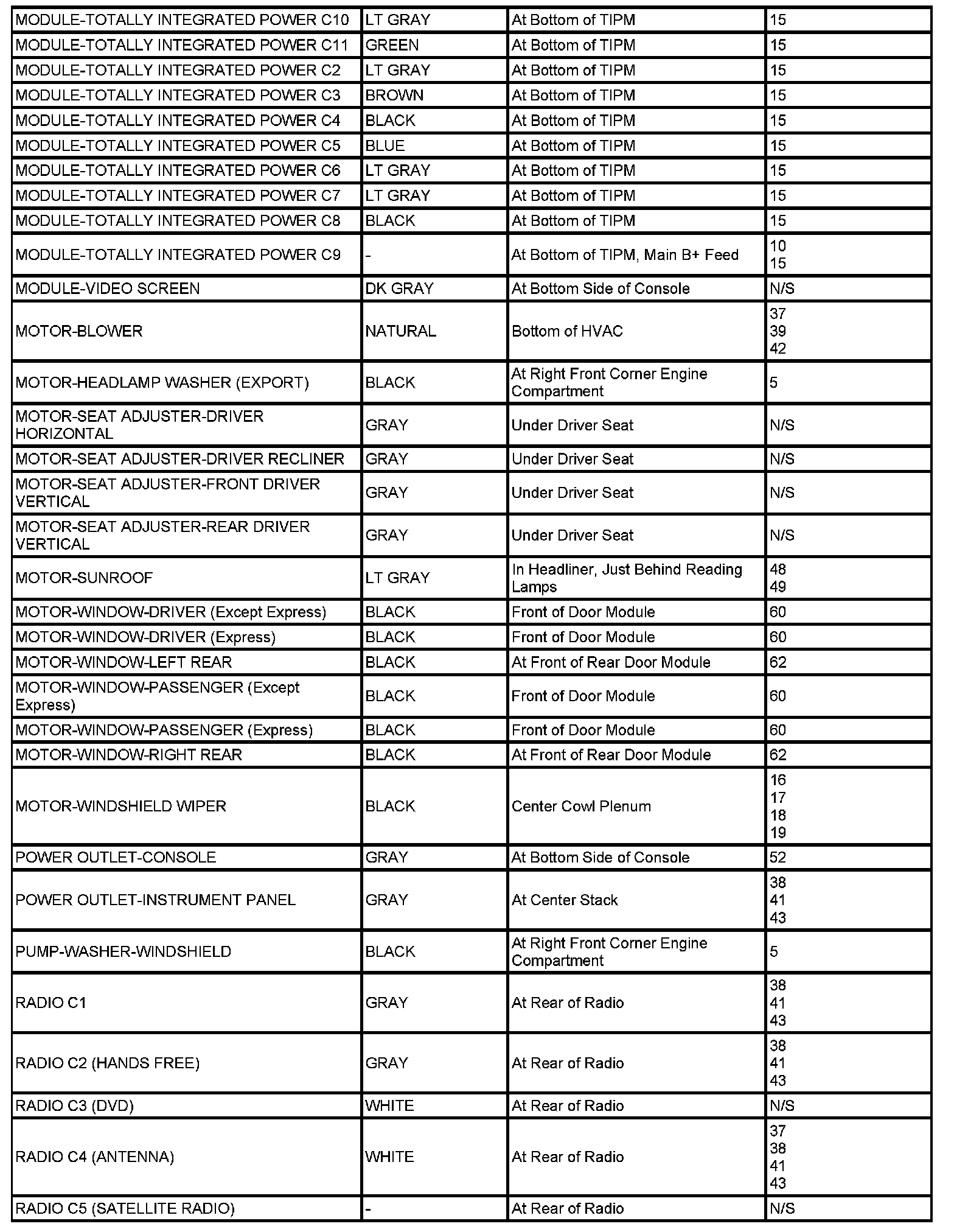

Mo-Ra:

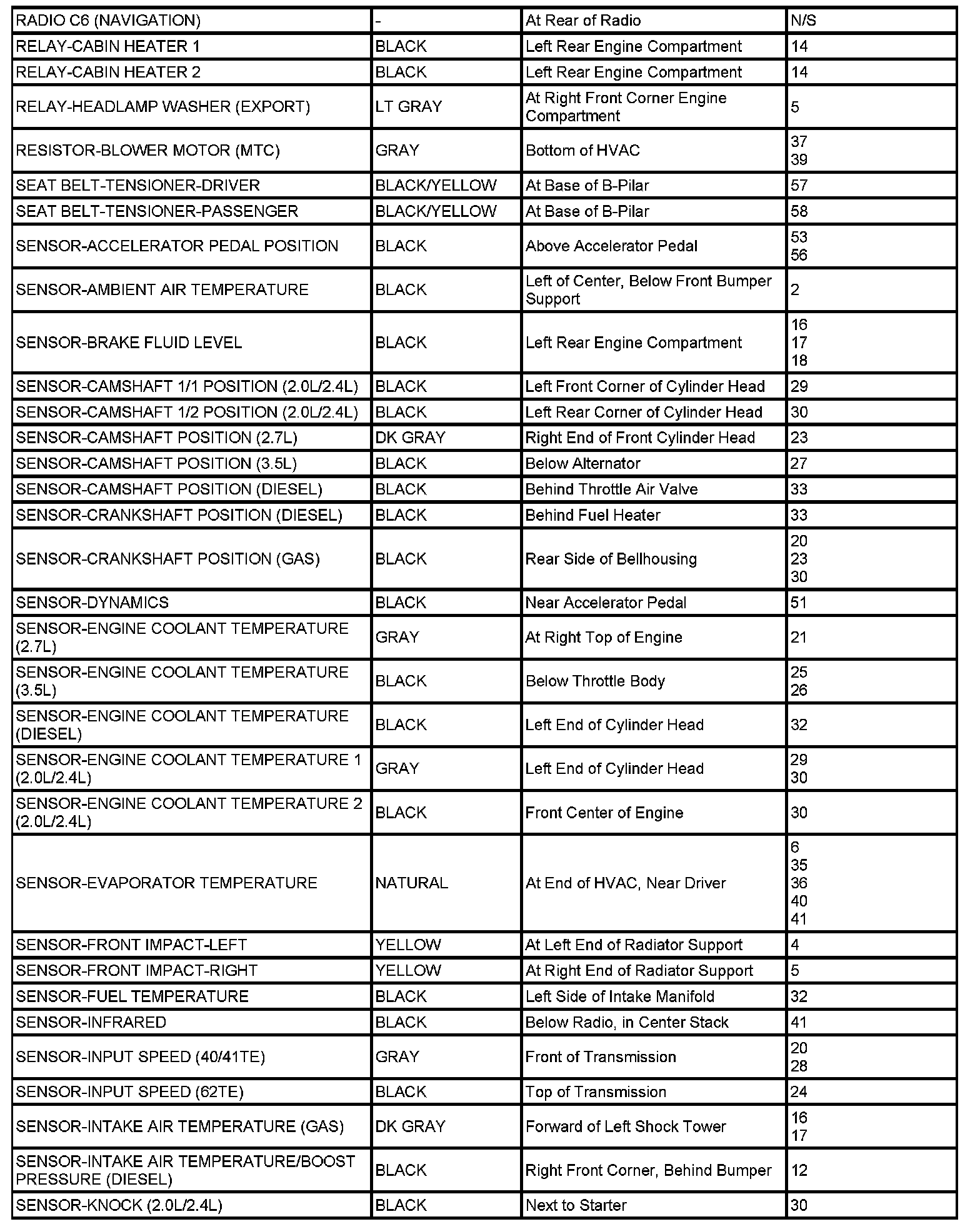

Ra-Se:

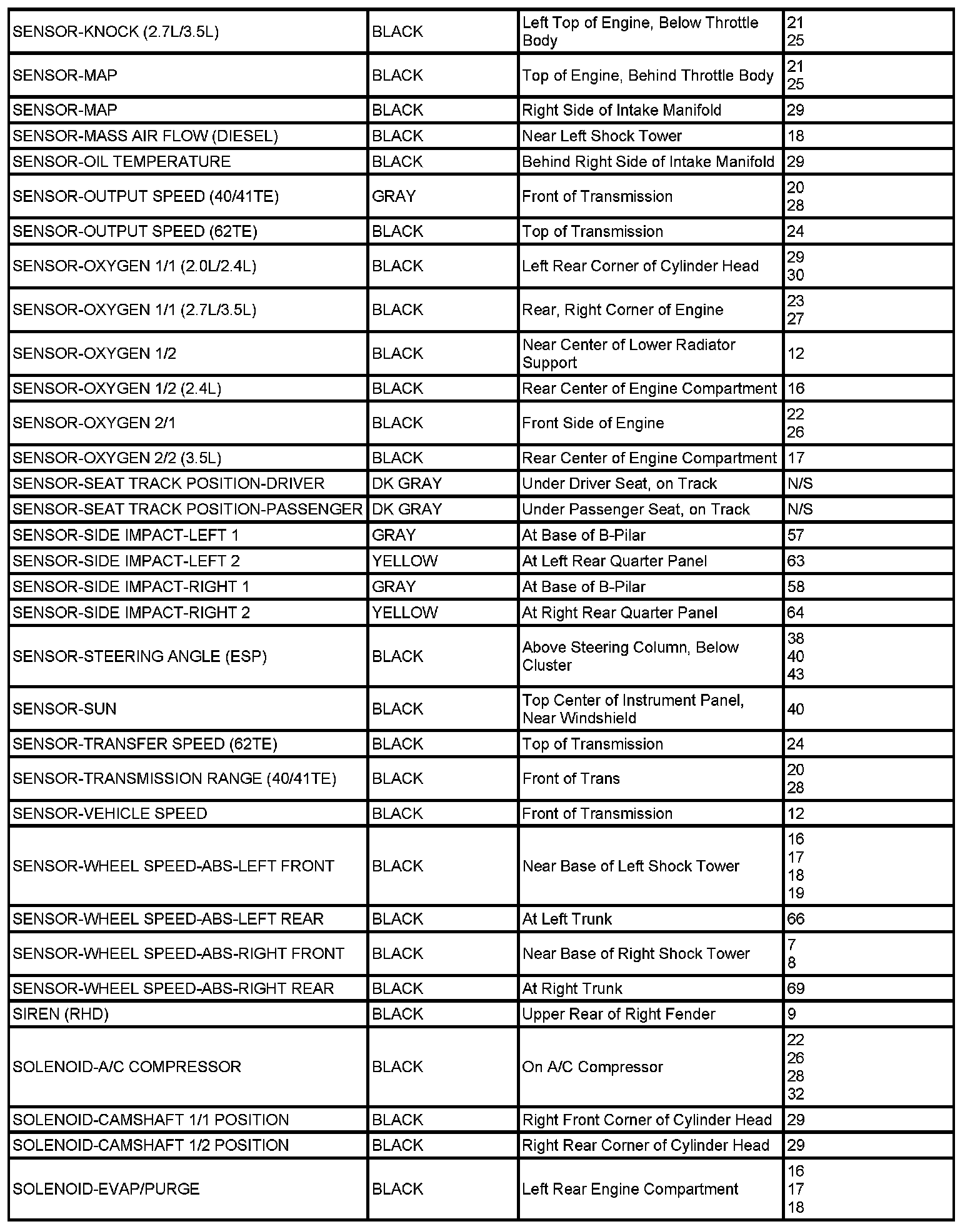

Se-So:

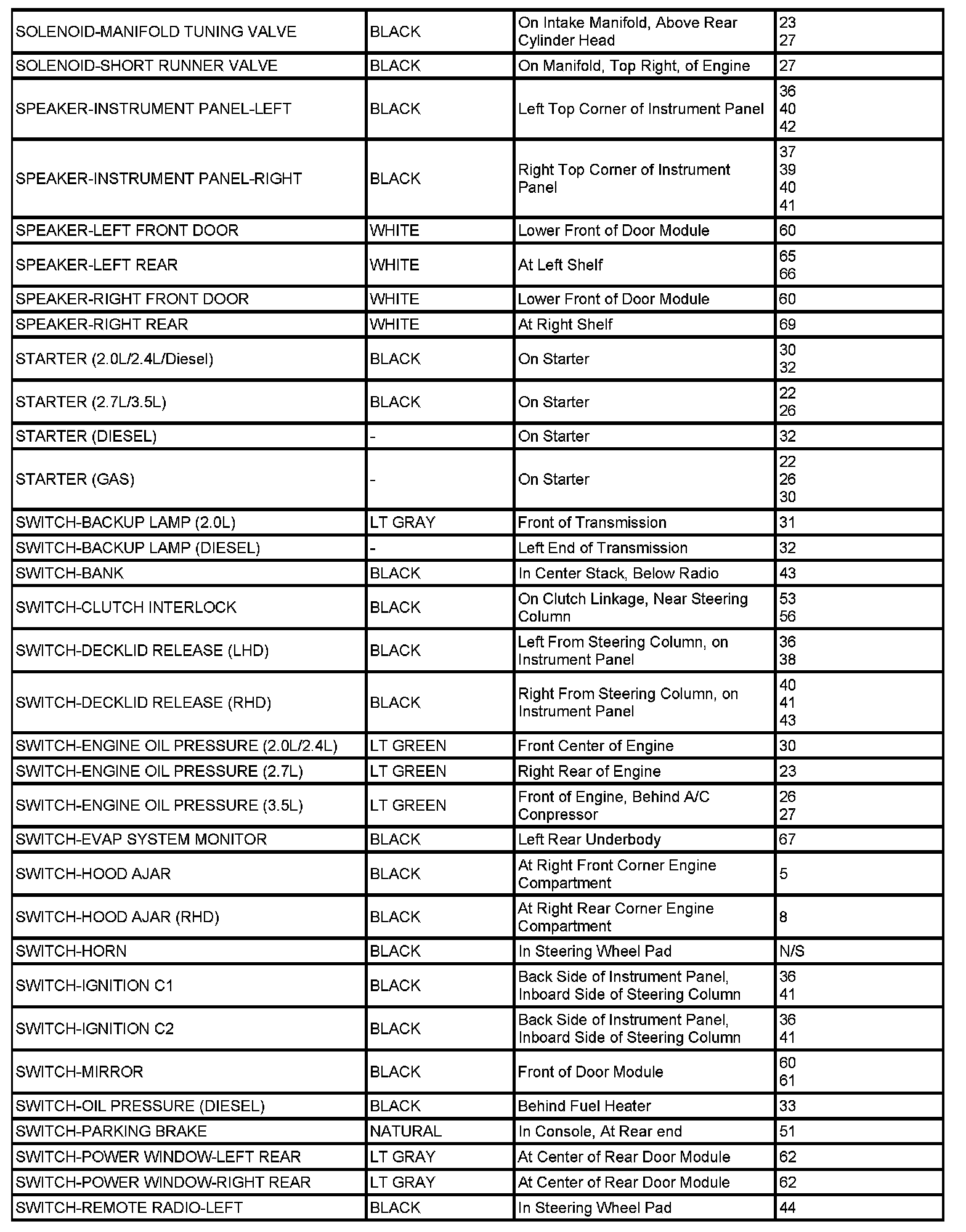

So-Sw:

Sw-Va:
