Wiper Motor

Component ID: 213

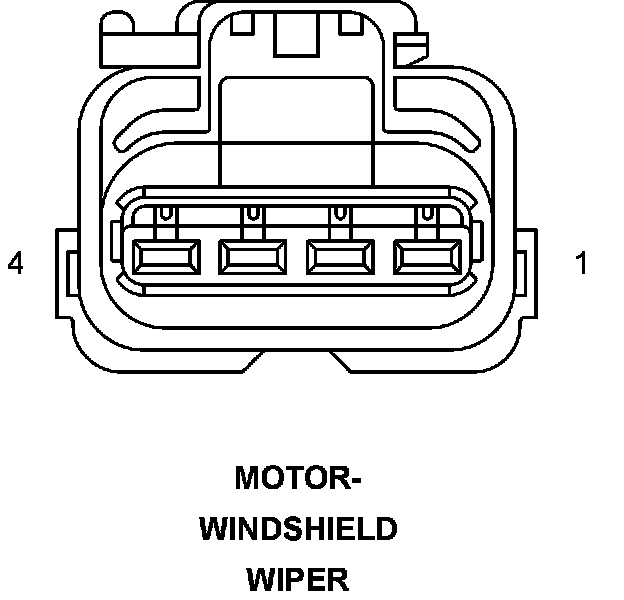

Component : MOTOR-WINDSHIELD WIPER

Connector:
Name : MOTOR-WINDSHIELD WIPER
Color :
# of pins : 4




Pin Description Circuit
1 FRONT WIPER PARK SWITCH SENSE W7 20BR/GY
2 GROUND Z901 12BK
3 FRONT WIPER LOW SPEED CONTROL OUTPUT W3 16BR/WT
4 FRONT WIPER HIGH SPEED CONTROL OUTPUT W4 12BR/OR

Component Location - 16

Fig. 16:

Component Location - 17

Fig. 17:

Component Location - 18

Fig. 18:

Component Location - 19

Fig. 19:
