Sensor-Wheel Speed-ABS-Left Rear

Component ID: 378
Component : SENSOR-WHEEL SPEED-ABS-LEFT REAR

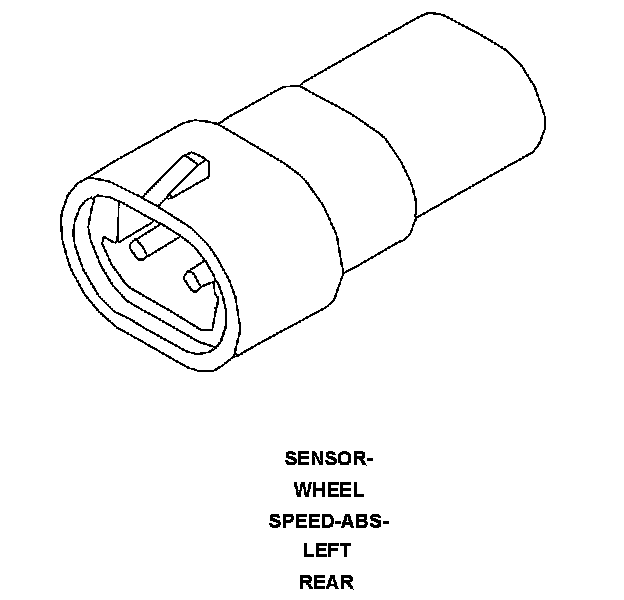

Connector:
Name : SENSOR-WHEEL SPEED-ABS-LEFT REAR
Color :
# of pins : 2




Pin Description Circuit
1 LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY B4 20LG
2 LEFT REAR WHEEL SPEED SENSOR SIGNAL B3 20LG/DB

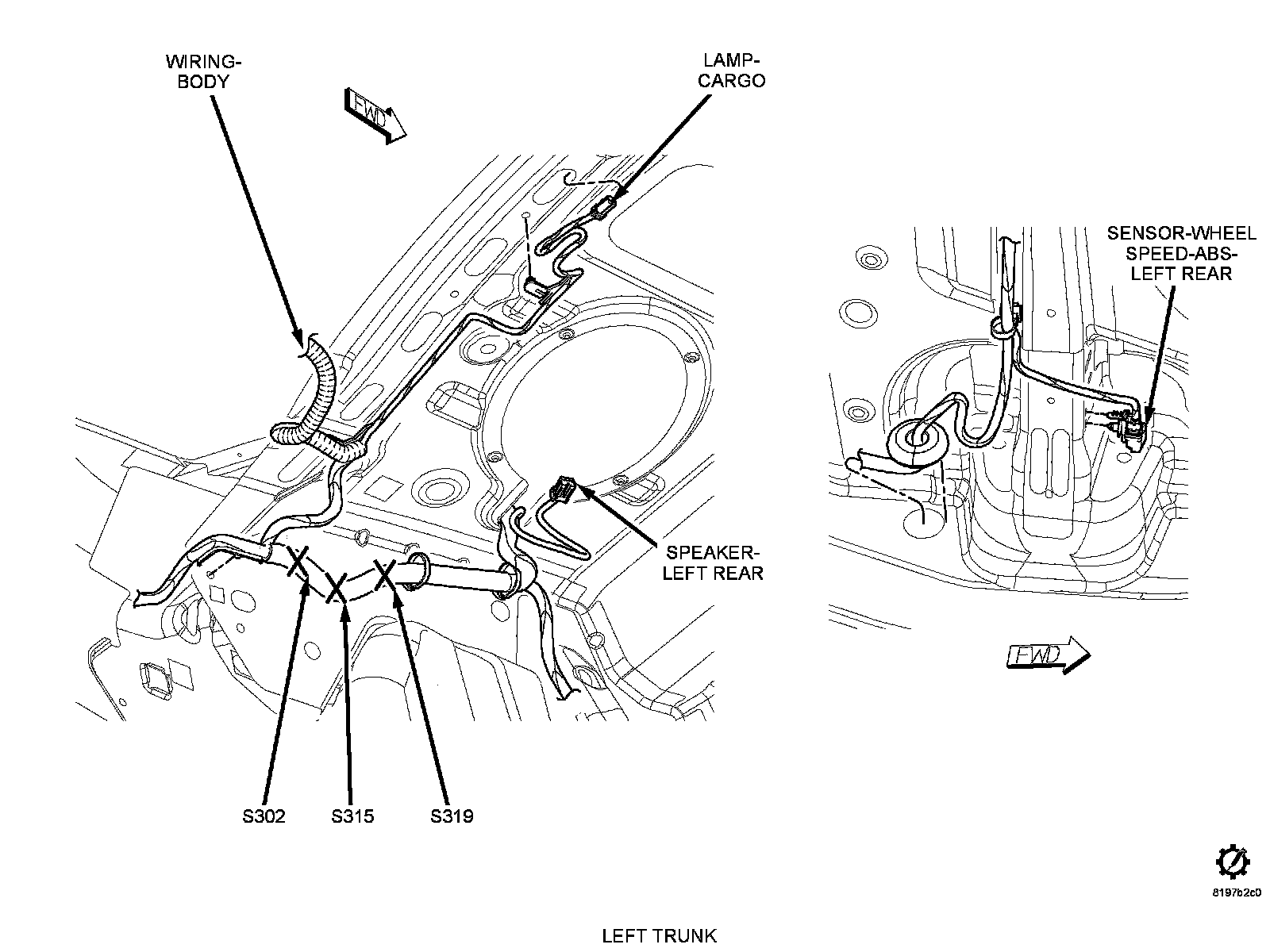

Component Location - 66

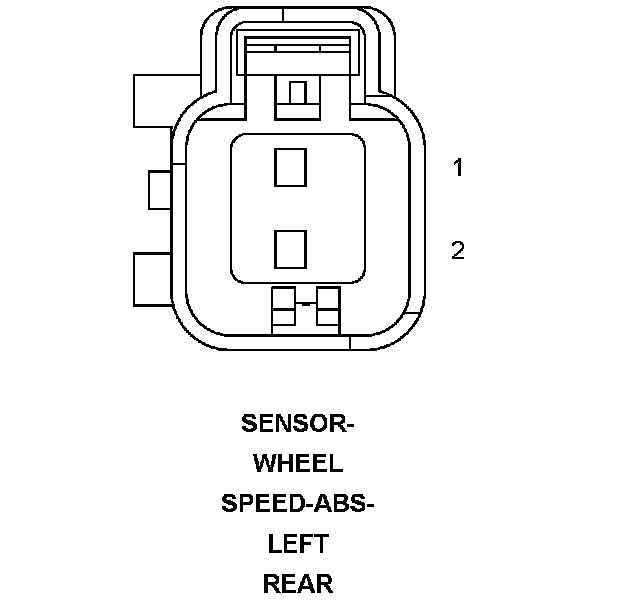

Connector:
Name : SENSOR-WHEEL SPEED-ABS-LEFT REAR
Color :
# of pins : 2




Pin Description Circuit
1 LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY LG
2 LEFT REAR WHEEL SPEED SENSOR SIGNAL LG/DB

Component Location - 66
