Lamp-Vanity-Right

Component ID: 172
Component : LAMP-VANITY-RIGHT

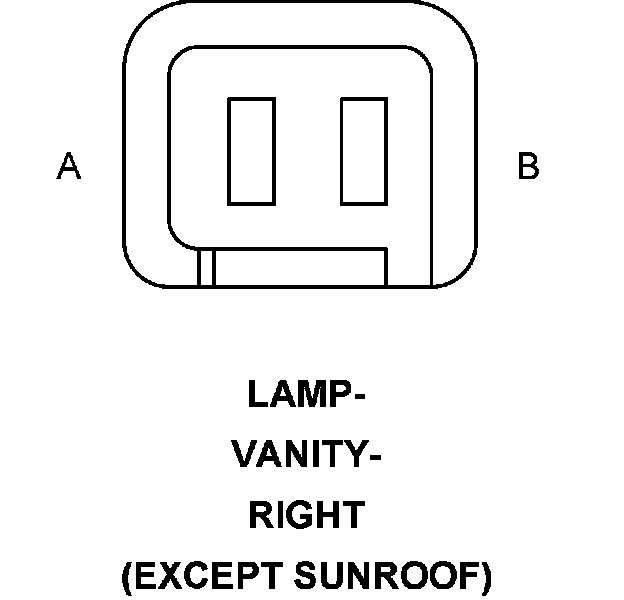

Connector:
Name : LAMP-VANITY-RIGHT
Color :
# of pins : 2
Qualifier : (EXCEPT SUNROOF)




A READING/RAIL LAMPS DRIVER M27 20YL/DB
B GROUND Z907 20BK

Component Location - 49

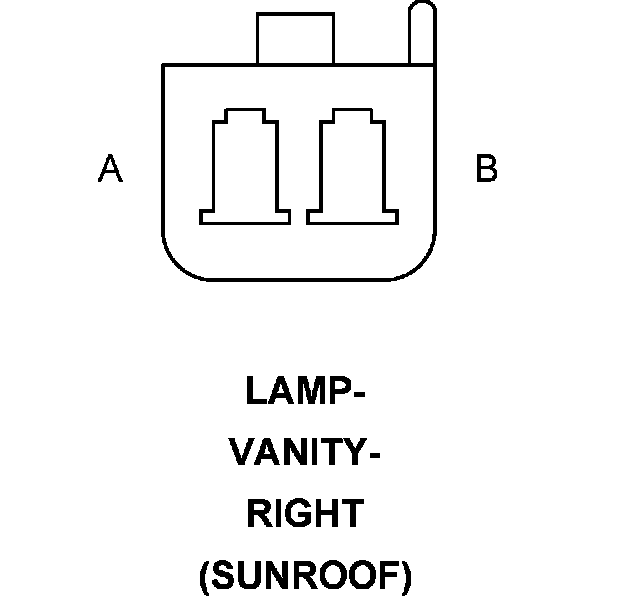

Connector:
Name : LAMP-VANITY-RIGHT
Color :
# of pins : 2
Qualifier : (SUNROOF)




A READING/RAIL LAMPS DRIVER M27 20YL/DB
B GROUND Z907 20BK

Component Location - 49
