Transmission Position Sensor/Switch, A/T

Component ID: 375
Component : SENSOR-TRANSMISSION RANGE

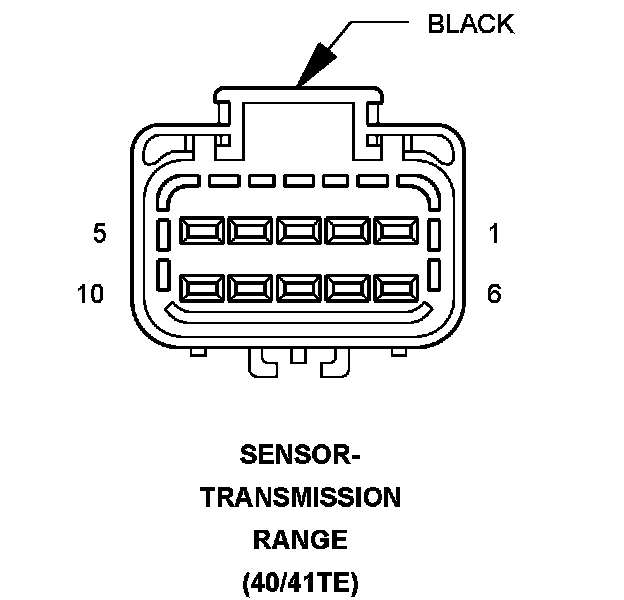

Connector:
Name : SENSOR-TRANSMISSION RANGE
Color : BLACK
# of pins : 10
Qualifier : (40/41TE)




Pin Description Circuit
1 - -
2 - -
3 SENSOR GROUND T13 20DG/VT
4 TRANSMISSION TEMPERATURE SIGNAL T54 20DG/OR
4 TRANSMISSION TEMPERATURE SIGNAL T54 18DG/OR
5 - -
6 - -
7 TRS T1 SIGNAL T1 20DG/LB
7 TRS T1 SIGNAL T1 18DG/LB
8 TRS T3 SIGNAL T3 20DG/DB
8 TRS T3 SIGNAL T3 18DG/DB
9 TRS T42 SIGNAL T42 20DG/YL
9 TRS T42 SIGNAL T42 18DG/YL
10 TRS T41 SIGNAL T41 20YL/DB
10 TRS T41 SIGNAL T41 18YL/DB

Component Location - 20

Fig. 20:

Component Location - 28

Fig. 28:
