Transponder-Tire Pressure-Left Rear

Component ID: 421

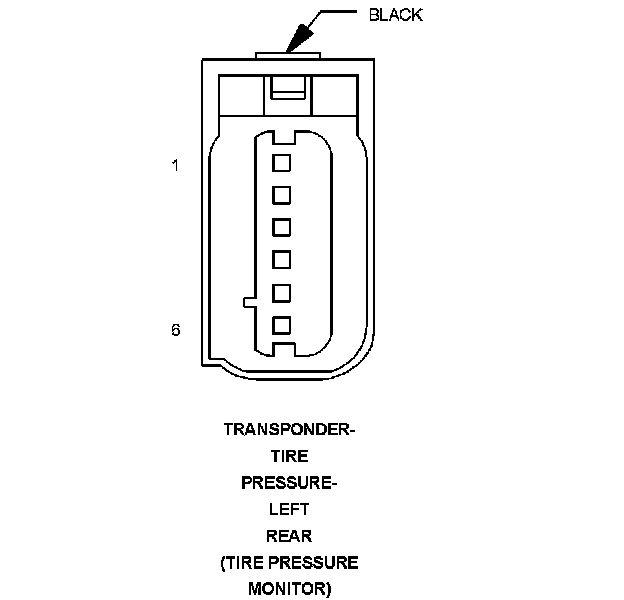

Component : TRANSPONDER-TIRE PRESSURE-LEFT REAR

Connector:
Name : TRANSPONDER-TIRE PRESSURE-LEFT REAR
Color : BLACK
# of pins : 6
Qualifier : (TIRE PRESSURE MONITOR)




Pin Description Circuit
1 IGNITION SWITCH OUTPUT (RUN-START) F202 18PK/WT
2 COM-LIN TIRE PRESSURE MONITOR LAN D508 20WT/GY
3 GROUND Z916 20BK
4 - -
5 - -
6 - -

Component Location - 67

Fig. 67:
