Television / Monitor

Component ID: 201

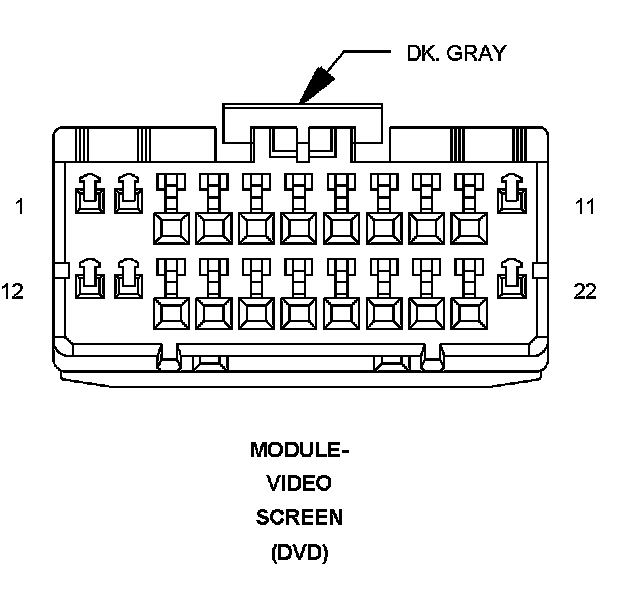

Component : MODULE-VIDEO SCREEN

Connector:
Name : MODULE-VIDEO SCREEN
Color : DK. GRAY
# of pins : 22
Qualifier : (DVD)




Pin Description Circuit
1 FUSED B(+) (I.O.D.) A419 18RD/PK
2 AUDIO RETURN 1 X540 20GY/TN
3 AUDIO LEFT 2 X545 20DG/LB
4 AUDIO RIGHT 2 X544 20DG/DB
5 CAN B BUS (+) D55 20WT/OR
6 CAN B BUS (-) D54 20WT
7 VIDEO SHIELD 1 X536 22
8 AUDIO LEFT 3 X551 20DG/VT
9 AUDIO RIGHT 3 X550 20DG/YL
10 VIDEO COMMON 2 X542 22GY/OR
11 VIDEO SIGNAL 2 X541 22GY/LB
12 AUDIO LEFT 1 X539 20DG/TN
13 AUDIO RIGHT 1 X538 20DG/WT
14 AUDIO RETURN 2 X546 20GY/DG
15 - -
16 - -
17 - -
18 VIDEO SIGNAL 1 X534 22GY/LB
19 VIDEO COMMON 1 X535 22GY/OR
20 AUDIO RETURN 3 X552 20GY/VT
21 VIDEO SHIELD 2 X543 22
22 GROUND Z907 18BK
