Steering Control Module

Component ID: 199
Component : MODULE-STEERING CONTROL

Connector:

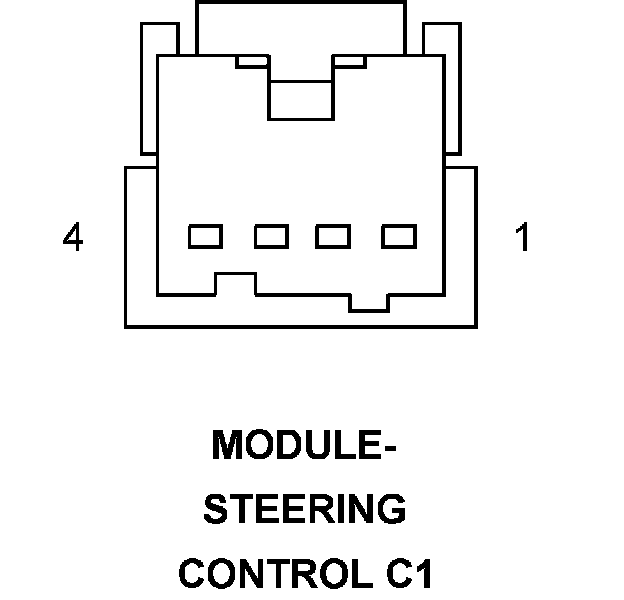

Name : MODULE-STEERING CONTROL C1
Color :
# of pins : 4




Pin Description Circuit
1 GROUND Z910 20BK
2 FUSED B(+) (I.O.D.) A411 20RD
3 LIN BUS D506 20WT/DG
4 IGNITION SWITCH OUTPUT (RUN-START) F202 20PK/WT

Component Location - 35




Component Location - 38

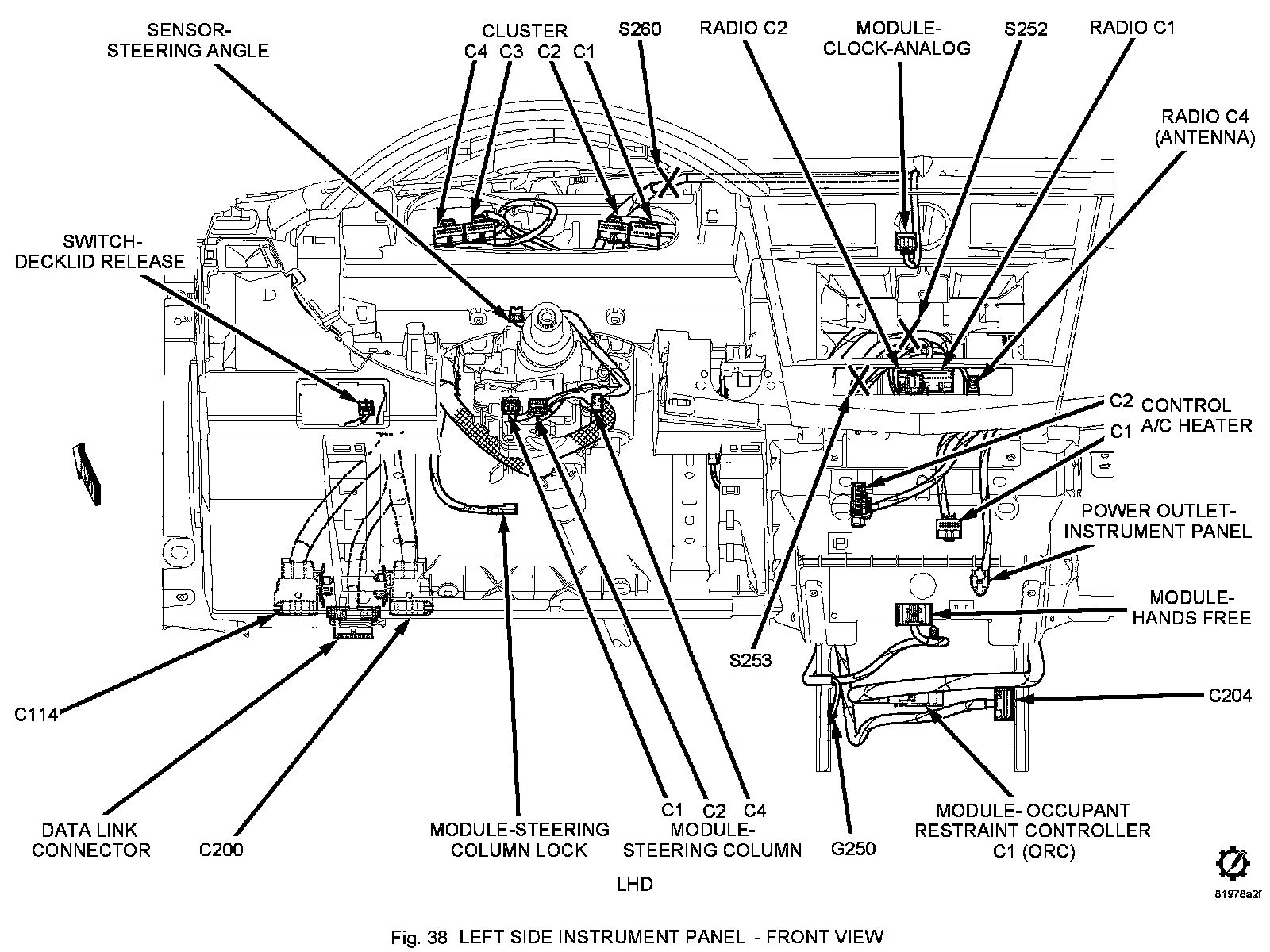

Fig. 38:

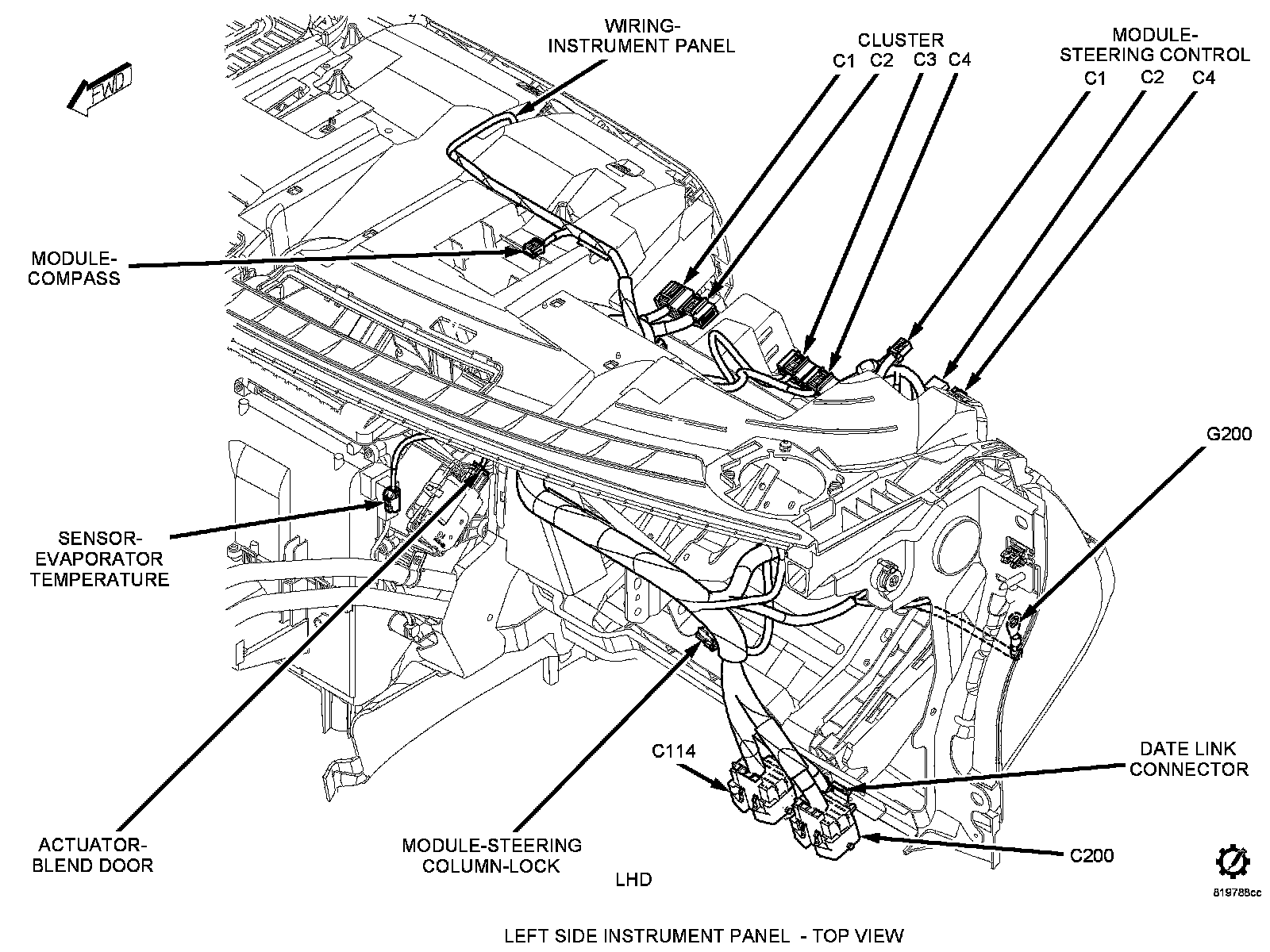

Component Location - 41

Fig. 41:

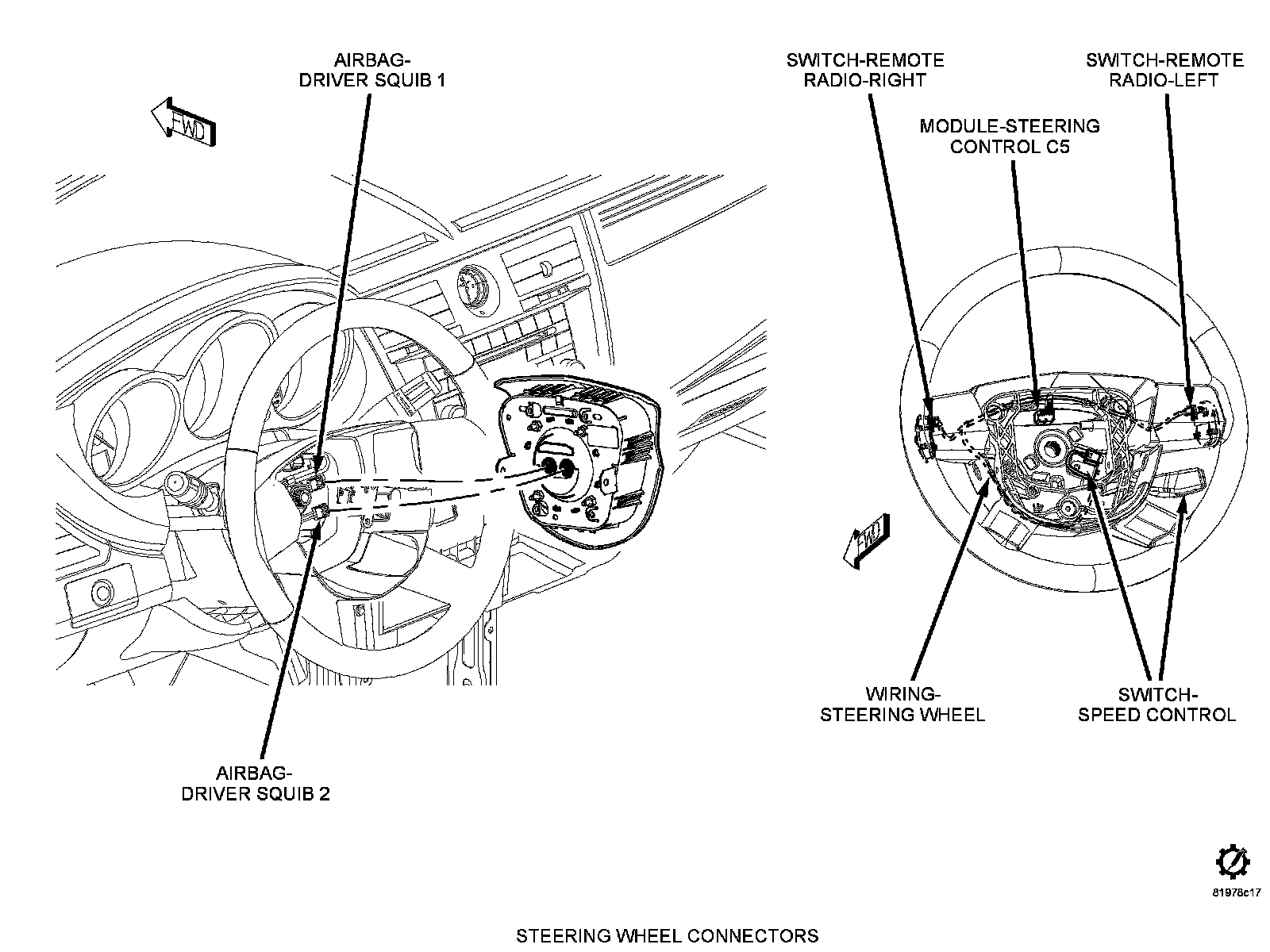

Component Location - 43

Fig. 43:

Component Location - 44






Connector:

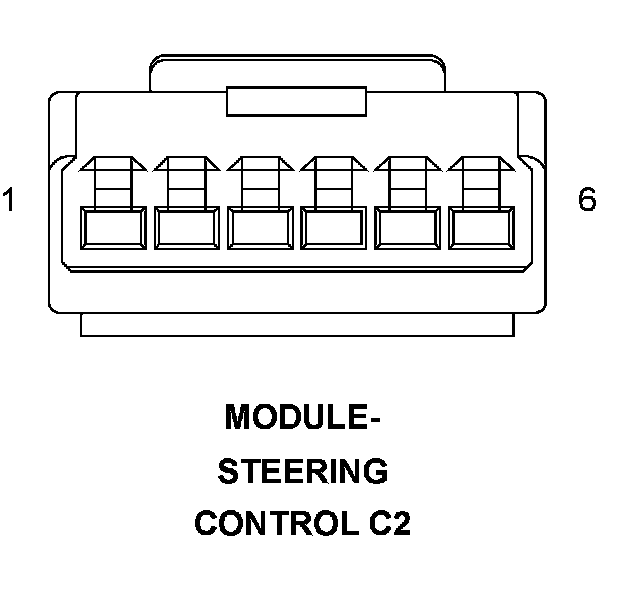

Name : MODULE-STEERING CONTROL C2
Color :
# of pins : 6




Pin Description Circuit
1 RADIO CONTROL MUX X20 20GY/WT
2 RADIO CONTROL MUX RETURN X920 20GY/OR
3 HORN SWITCH SENSE X3 20DG/VT
4 S/C SIGNAL 2 V72 20OR/VT
5 S/C SWITCH GROUND V937 20VT/BR
6 S/C SIGNAL 1 V71 20VT/OR

Component Location - 35




Component Location - 38

Fig. 38:

Component Location - 41

Fig. 41:

Component Location - 43

Fig. 43:

Component Location - 44






Connector:

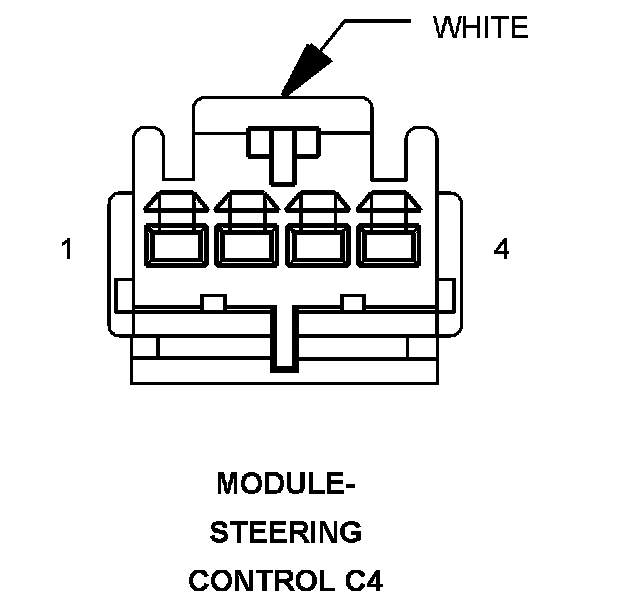

Name : MODULE-STEERING CONTROL C4
Color : WHITE
# of pins : 4




Pin Description Circuit
1 DRIVER SQUIB 2 LINE 1 R63 18LG/WT
2 DRIVER SQUIB 2 LINE 2 R61 18LG/VT
3 DRIVER SQUIB 1 LINE 1 R45 18LG/OR
4 DRIVER SQUIB 1 LINE 2 R43 18LG/BR

Component Location - 35




Component Location - 38

Fig. 38:

Component Location - 41

Fig. 41:

Component Location - 43

Fig. 43:

Component Location - 44






Connector:

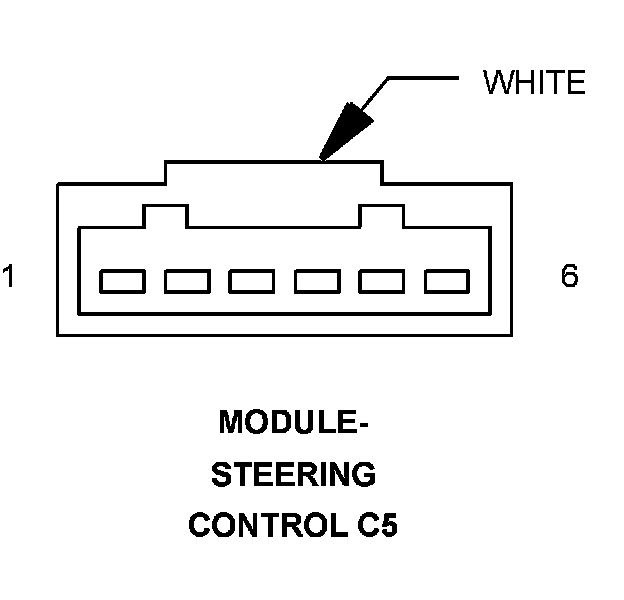

Name : MODULE-STEERING CONTROL C5
Color : WHITE
# of pins : 6




Pin Description Circuit
1 RADIO CONTROL MUX X20 20GY
Pin Description Circuit
1 RADIO CONTROL MUX X20 20GY
2 RADIO CONTROL RETURN Y13 20BK
2 RADIO CONTROL RETURN Y13 20BK
3 HORN SWITCH SENSE X3 20DB
4 S/C SIGNAL 2 V72 20PK
5 S/C SIGNAL 1 V71 20VT
6 S/C SWITCH GROUND V937 20YL

Component Location - 35




Component Location - 38

Fig. 38:

Component Location - 41

Fig. 41:

Component Location - 43

Fig. 43:

Component Location - 44
