Starter Motor

Component ID: 394
Component : STARTER

Connector:
Name : STARTER
Color :
# of pins : 1

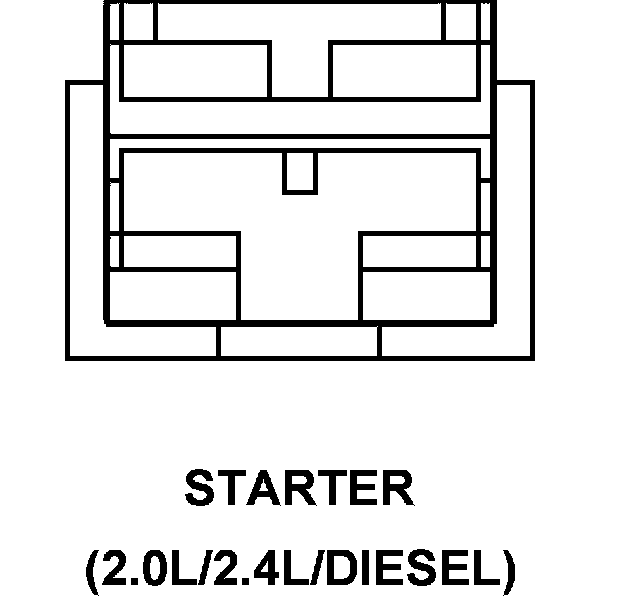

Qualifier : (2.0L/2.4L/DIESEL)




Pin Description Circuit
1 STARTER CONTROL OUTPUT T750 16YL/VT
Pin Description Circuit
1 STARTER CONTROL OUTPUT T750 16YL/GY

Component Location - 22




Component Location - 26




Component Location - 30

Fig. 30:

Component Location - 32

Fig. 32:

Connector:
Name : STARTER
Color :
# of pins : 1

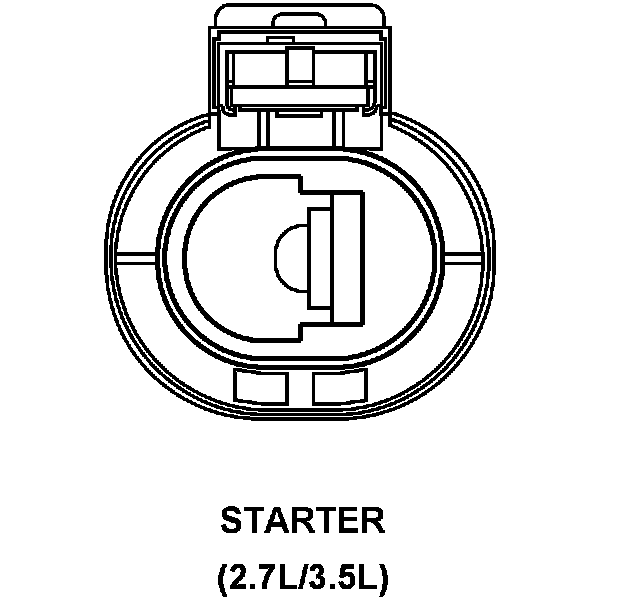

Qualifier : (2.7L/3.5L)




Pin Description Circuit
1 STARTER CONTROL OUTPUT T750 16YL/VT
Pin Description Circuit
1 STARTER CONTROL OUTPUT T750 14YL/VT

Component Location - 22




Component Location - 26




Component Location - 30

Fig. 30:

Component Location - 32

Fig. 32:

Connector:

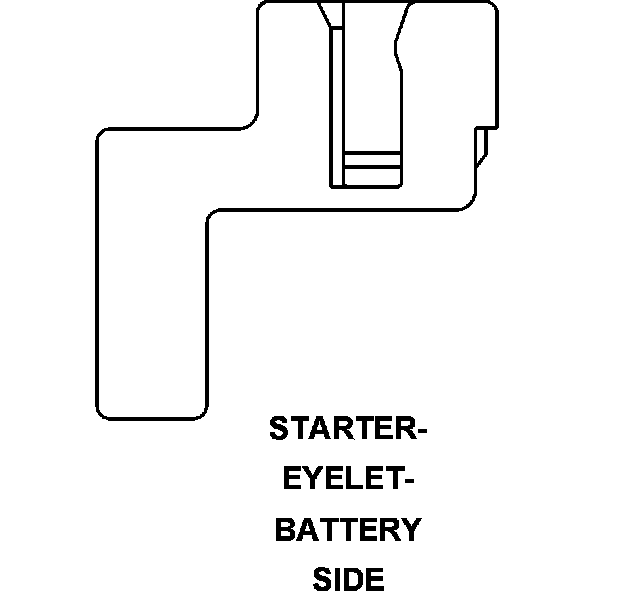

Name : STARTER-EYELET-BATTERY SIDE
Color :
# of pins : 1




Pin Description Circuit
1 B(+) A8 4RD

Component Location - 22




Component Location - 26




Component Location - 30

Fig. 30:

Component Location - 32

Fig. 32:

Connector:

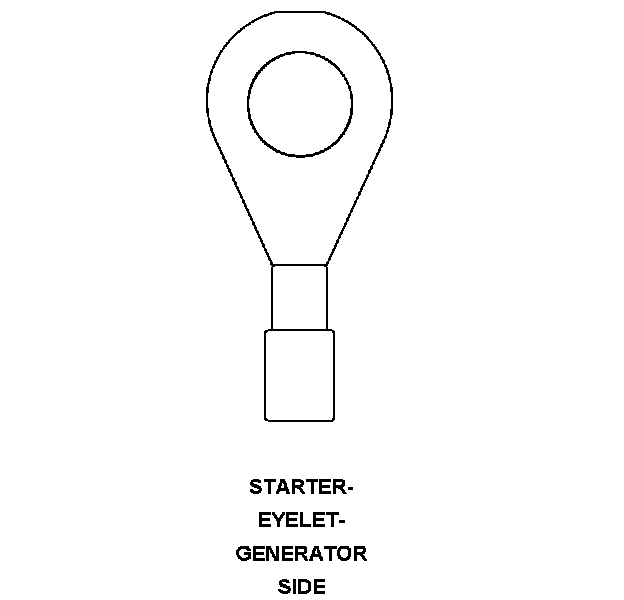

Name : STARTER-EYELET-GENERATOR SIDE
Color :
# of pins : 1




Pin Description Circuit
1 B(+) A802 10DG

Component Location - 22




Component Location - 26




Component Location - 30

Fig. 30:

Component Location - 32

Fig. 32:
